2 — INSTALLATION & WIRING: Throttle Wiring

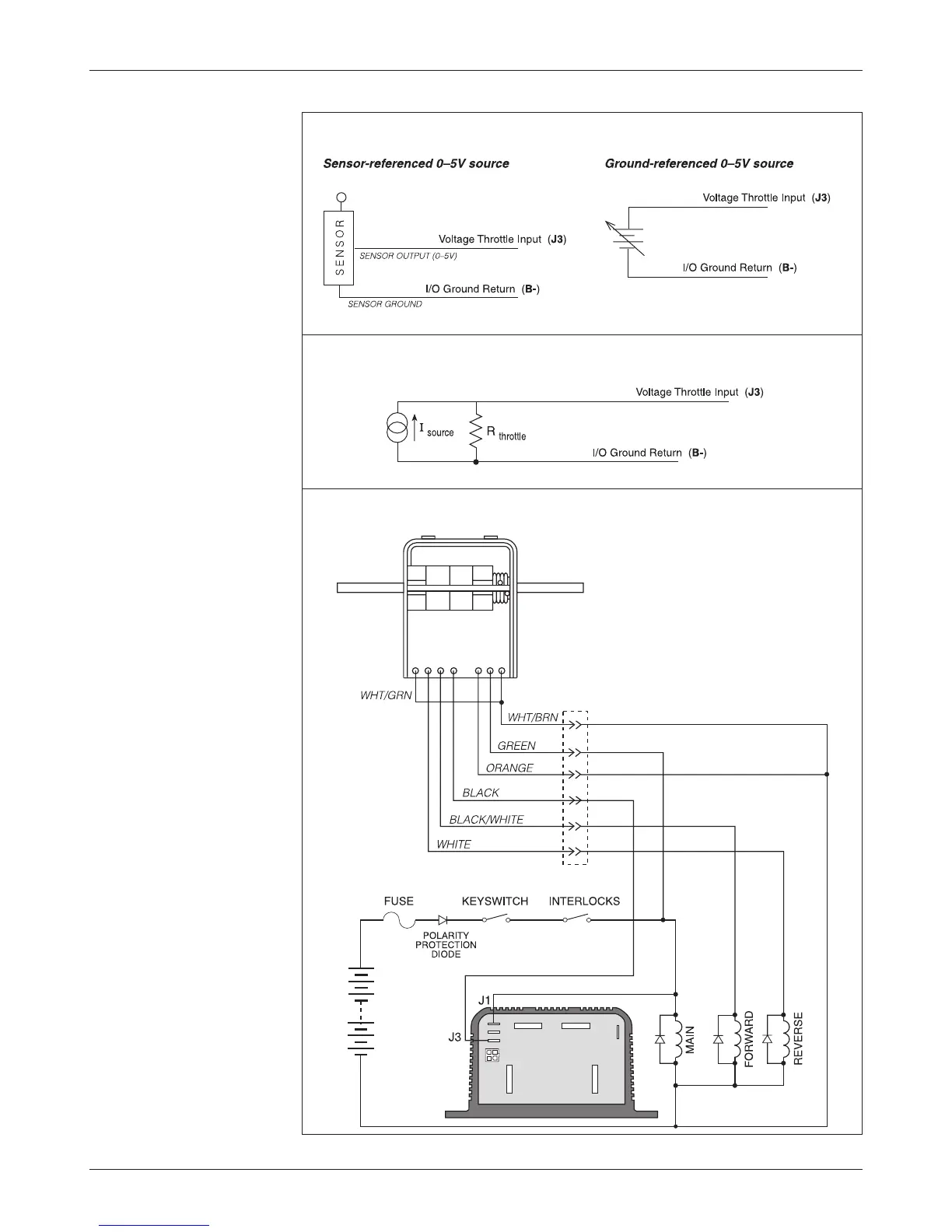

Fig. 10 Wiring for Type 2
throttles.
Curtis ET-XXX Electronic Throttle
Voltage Source
+
+
-
+
–
Current Source
Curtis 1204M/1205M/1209M/1221M Manual
