Curtis D60GT - Parts List and Electrical Schematic; Parts List; Electrical Schematic

Item Part No. Description
1 WC-58117 COVER,TOPD60GT
2 WC-2962 FITTING,SPRAYHEADASSYPLATED
2B WC-2977-101 FITTING,SPRAYHEADULTEM(OLDERUNITS)
2A WC-2977 FITTING,SPRAYHEADPLATED(OLDERUNITS)
3 WC-889* VALVE,DUMPLEFT120V12W
4 WC-37064* KIT,LABEL&UCMD500/D60GTCURTIS
5 WC-37252 KIT,HOTWATERFAUCETREPLACEMENT
6 WC-1806 SEATCUP,SILICONE(FORWC-1809FAUCET)
7 WC-8556* HEATSINKASSEMBLYDV
8 WC-2401 ELBOW,1/4x3/8FLARE
9 WC-826L* VALVE,INLET1.0GPM120V
10 WC-5970 COVER,BACKCTRWRAPALPHA/D60GT
11 WC-8591 CAPACITOR,X2USEDONALLADSMODELS
12 WC-29025* SPRAYHEAD,PURPLEADVANCEFLOW
12A WC-29050* SPRAYHEAD,AMBER(OLDERUNITS)
12B WC-2936* SPRAYHEAD,RED.131DIA(OLDERUNITS)
13 WC-3518 LEG,GLIDE3/8”-16STUDSCREW
Item Part No. Description
13A WC-3503 LEG,SCREWBUMPER(3/8”)
14 WC-3621-101 BREWCONE,UNIVERSAL7.38”DIA.
14A WC-3316 BREWCONE,ASSYS.S.(OPTIONAL)
15 WC-6221 SCREEN,DRIPTRAYSS(OPTIONAL)
16 WC-3765L* KIT,VALVEREPAIR(FORWC-826VALVE)
17 WC-5853-102 COVER,TOPHEATINGTANK
17A WC-5851 LID,HEATINGTANK(OLDERUNITS)
18 WC-5310* TUBING,5/16IDSILICONEGENUSE
19 WC-43062 GASKET,TANKLID
20 WC-37278* KIT,LIQUIDLEVELPROBEGT
21 WC-917-04* HEATINGELEMENT,1450W120V
22 WC-523* THERMOSTAT,MANUALRESET
23 WC-6289 HEATINGTANKCMPLT,120VW/HIGHLMTT-ST
24 WC-102* SWITCH,TOGGLESPST25A125/25OVAC
25 WC-5231* COMPOUND,SILICONE5OZTUBE
26 WC-1438-101* SENSOR,TEMPERATURETANK
27 WC-3763* KIT,VALVEREPAIR(FORWC-889,DUMPVALVE)
* Recommended Parts to Stock.
PARTS LIST
5

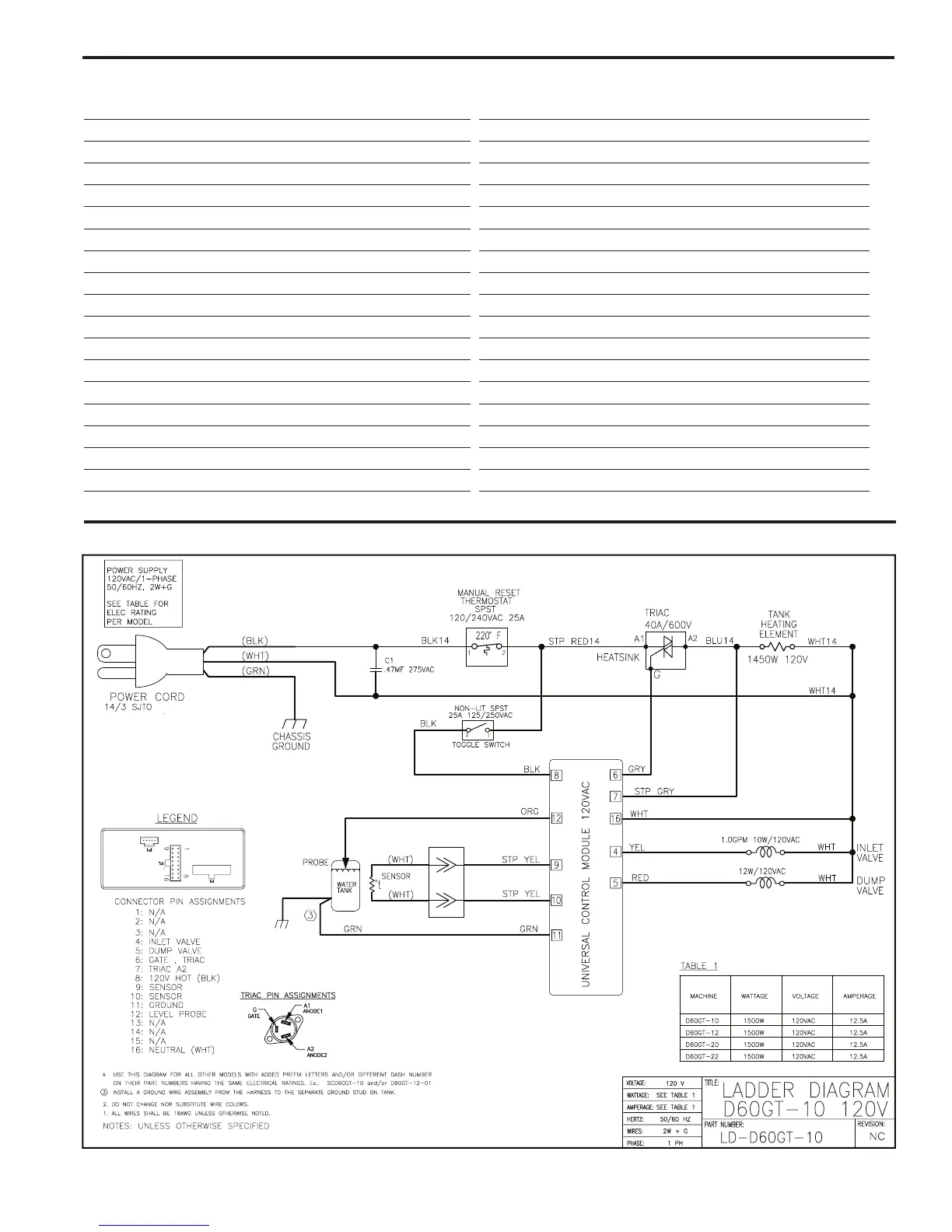

ELECTRICAL SCHEMATIC
