Curtis GEMSS63A1000 - Page 19

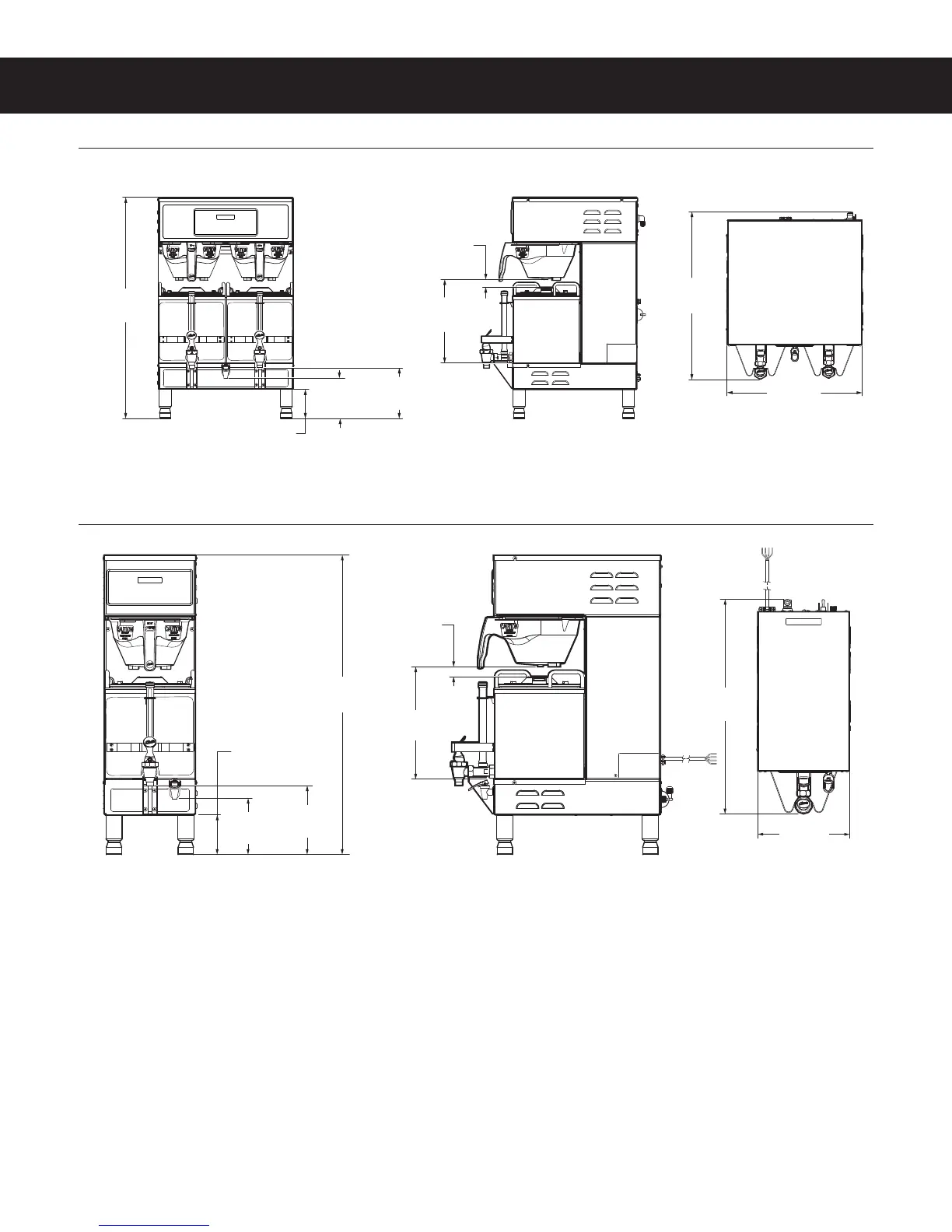

ROUGH-IN DRAWINGS RD26
GEMTS - Twin Coffee Brewer
GEMSS - Single Coffee Brewer
GEMSS/GEMTS, ROUGH-IN DRAWING 112217B
29.75 in
[75.6 cm]
29.88 in
[75.9 cm]
5.50 in
[14.0 cm]
5.75 in
[14.6 cm]
6.88 in
[17.5 cm]
7.00 in
[17.8 cm]
11.13 in
[28.3 cm]
11.13 in
[28.3 cm]
22.25 in*
[56.5 cm]
22.25 in
[56.5 cm]
*25.63 in [65.1 cm] on model GEMTS16A1000
4.00 in
[10.2 cm]
4.00 in
[10.2 cm]
18.13 in
[46.0 cm]
9.13 in
[23.2 cm]
1.00 in
[2.5 cm]
1.00 in
[2.5 cm]
