Curtis GEMSS63A1000 User Manual

ILLUSTRATED PARTS LIST IP32
ITEM # PART # DESCRIPTION
1 WC-62034
TANK, COMPLETE GEMSS DV W/ ULTEM
FITINGS
2 WC-5853-102 COVER, TOP HEATING TANK GEN USE
3 WC-43062 GASKET, TANK LID
4 WC-5527K KIT, PROBE WATER LEVEL O-RING & NUT
5 WC-904-04
KIT,ELEMENT, HEATING 1.6KW120V W/ JAM
NUT & SILICONE O-RING
6 WC-1438-101 SENSOR, TEMPERATURE TANK
7 WC-4394
GUARD, SHOCK/HEATING ELEMENT FOR SIN-
GLE HEATING ELEMENT
ITEM # PART # DESCRIPTION
3 WC-43062 GASKET, TANK LID
4 WC-5527K KIT, PROBE WATER LEVEL O-RING & NUT
6 WC-1438-101 SENSOR, TEMPERATURE TANK
7 WC-4394
GUARD, SHOCK/HEATING ELEMENT FOR SIN-
GLE HEATING ELEMENT
8 WC-522
THERMOSTAT, HI LIMIT HEATER CONTROL
DPST 277V 40A
WC-62034 - Recommended Parts to Stock
ITEM # PART # DESCRIPTION
9 WC-43055 GUARD, SHOCK RESET THERMOSTAT (WC-522)
10 WC-37266 KIT, FITTING TANK OVERFLOW
11 WC-37317
KIT, STRAIGHT FITTING & BUSHNG 8mm GEN
USE
12 WC-37365 KIT, FITTING TANK INLET
13 WC-37357
KIT, STRAIGHT PLASTIC FITTING AND BUSHING
12MM
ITEM # PART # DESCRIPTION
8 WC-522
THERMOSTAT, HI LIMIT HEATER CONTROL
DPST 277V 40A
9 WC-43055 GUARD, SHOCK RESET THERMOSTAT (WC-522)
10 WC-37266 KIT, FITTING TANK OVERFLOW
11 WC-37317
KIT, STRAIGHT FITTING & BUSHNG 8mm GEN
USE
12 WC-37365 KIT, FITTING TANK INLET
13 WC-37357
KIT, STRAIGHT PLASTIC FITTING AND BUSHING
12MM

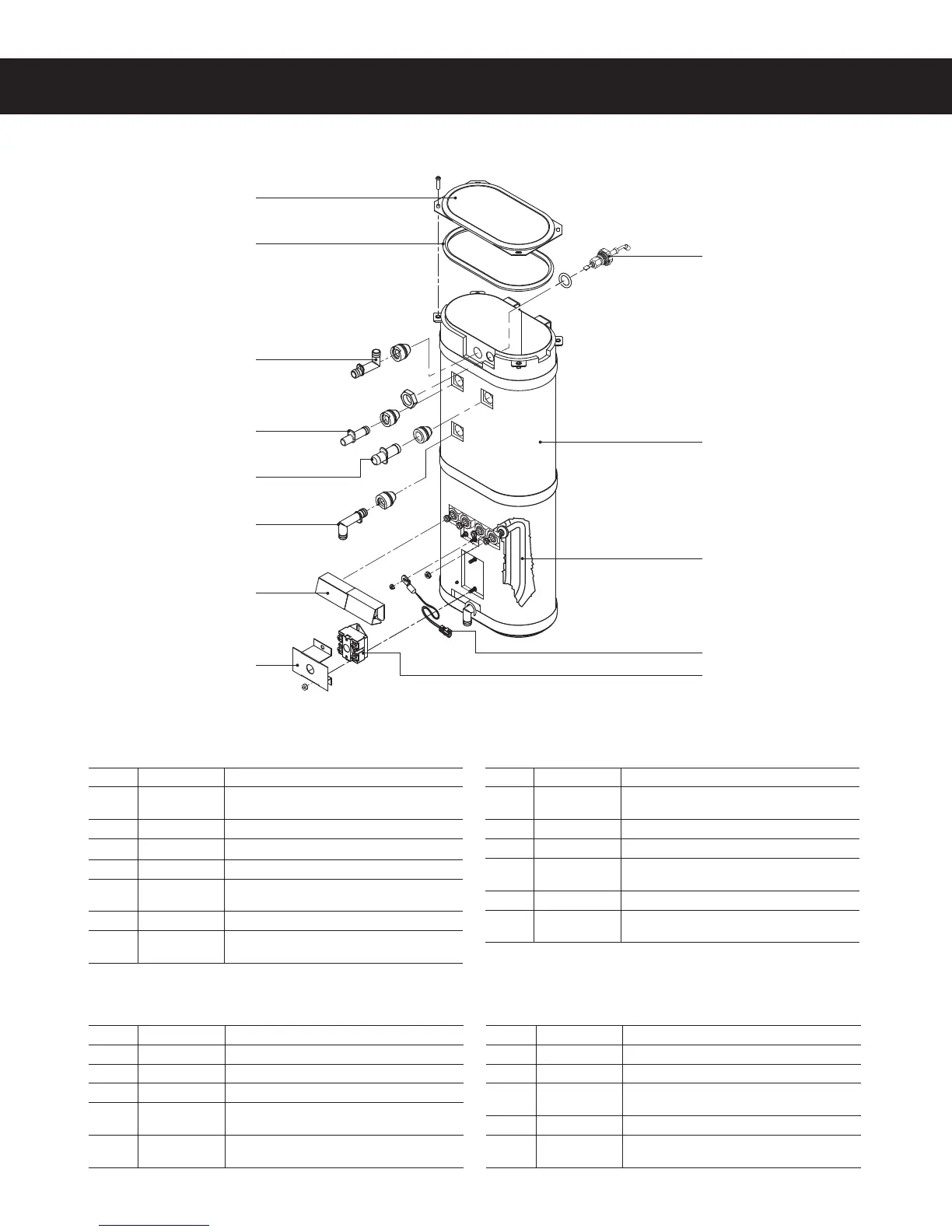

WC-62034 - Tank Assembly
2
3
10
11
13
12
7
9
4
1
5
6
8
WC-62034 TANK ASSEMBLY, ILLUSTRATED PARTS/RECOMMENDED PARTS 102616NC
WC-62034 - Tank Assembly - Parts List
