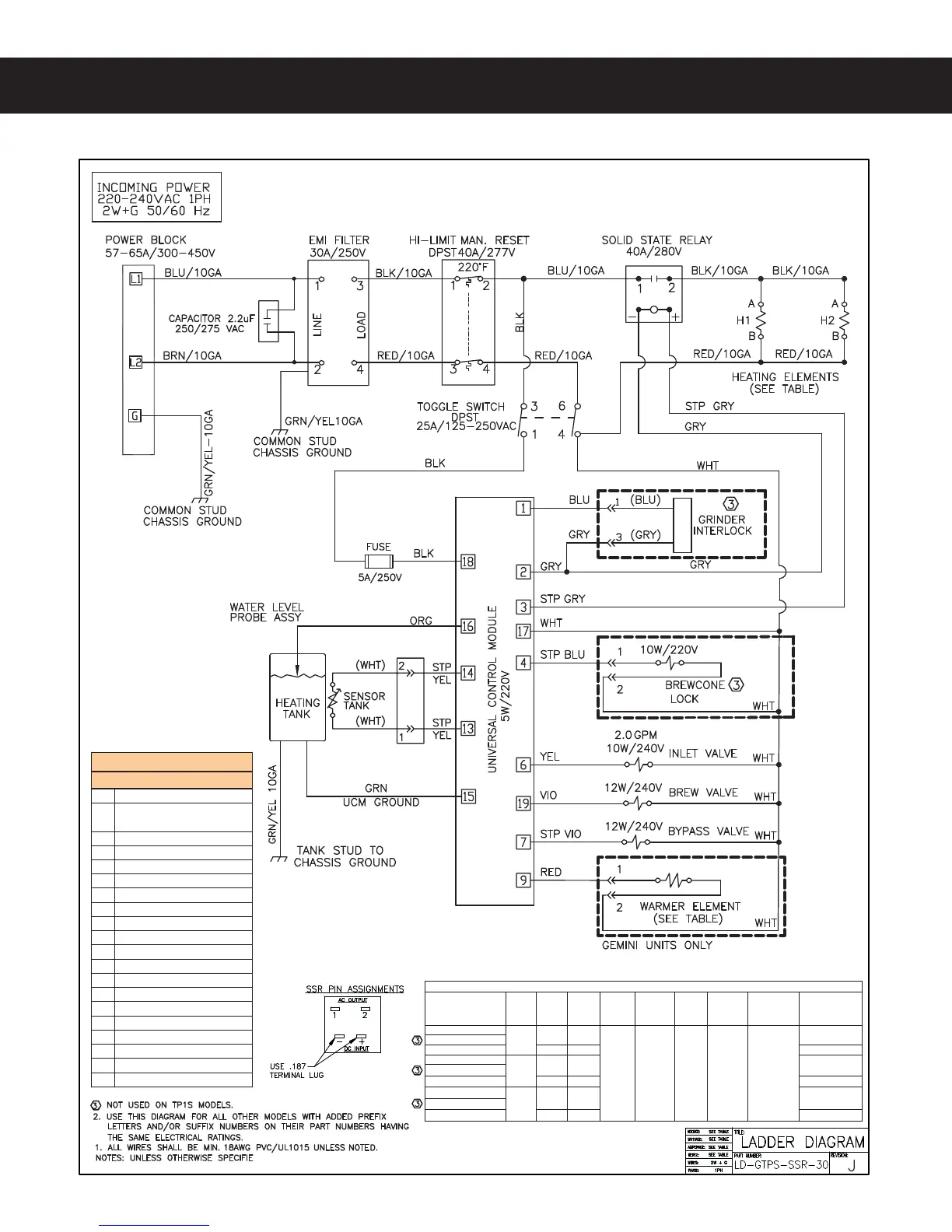

ELECTRICAL SCHEMATICS ES32
GTPS-30, ELECTRICAL SCHEMATIC 061918B
1
GRINDER I NTERLOCK
2
COM MON-SOLID STATE
RELAY & GRI NDER
3
+5 VDC
4
BREW CONE LOCK
5
NOT USED
6
INLET VALVE
7
BYPASS VALVE
8
NOT USED
9
WARMER
10
NOT USED
11
NOT USED
12
NOT USED
13
TANK TEMPERATURE SENSOR
14
TANK TEMPERATURE SENSOR
15
UCM GROUND
16
WATER LEVEL PROBE
17
230V L2
18
230V L1
19
BREW VALVE
20
NOT USED
UCM Pin Assignments
20 Pin Connector
Model
Voltage
V
Amps
A
WaƩs
W
Hertz
Hz
# of
Conductor
Wires
Phase
# of Tank
Elements
Tank Element
RaƟng
W/V
Warmer Element
RaƟng
W/V
TP2S30Ax
/
TPC2S30Ax
TP1S30Ax
GEMSS30Ax 19.5 4300
(
1X
)
100W
/
220V
TP2S30Ax
/
TPC2S30Ax
TP1S30Ax
)X1(00744.02xA03SSMEG 100W/220V
TP2S30Ax/TPC2S30Ax
TP1S30Ax
)X1(05155.12xA03SSMEG 100W/220V
410019.0
460020.0
240
20.4 4900
-
-
ELECTRICAL RATING TABLE
220
230
2000W/220V
-
50/60212
