ILLUSTRATED PARTS LIST IP31
WC-62035 TANK ASSEMBLY, ILLUSTRATED PARTS/RECOMMENDED PARTS 102616NC
ITEM # PART # DESCRIPTION
1 WC-62035 TANK, COMPLETE GEMSS W/ULTEM FITTINGS
2 WC-5853-102 COVER, TOP HEATING TANK GEN USE
3 WC-43062 GASKET, TANK LID
4 WC-5527K KIT, PROBE WATER LEVEL O-RING & NUT
5 WC-906-04
KIT, ELEMENT, HEATING 2KW 220V W/ JAM NUT &
SILICONE O-RING
6 WC-1438-101 SENSOR, TEMPERATURE TANK
7 WC-4394
GUARD, SHOCK/HEATING ELEMENT FOR SINGLE
HEATING ELEMENT
ITEM # PART # DESCRIPTION
3 WC-43062 GASKET, TANK LID
4 WC-5527K KIT, PROBE WATER LEVEL O-RING & NUT
5 WC-906-04
KIT, ELEMENT, HEATING 2KW 220V W/ JAM NUT
& SILICONE O-RING
6 WC-1438-101 SENSOR, TEMPERATURE TANK
7 WC-4394
GUARD, SHOCK/HEATING ELEMENT FOR
SINGLE HEATING ELEMENT
8 WC-522
THERMOSTAT, HI LIMIT HEATER CONTROL
DPST 277V 40A
WC-62035 - Recommended Parts to Stock
WC-62035 - Tank Assembly - Parts List
ITEM # PART # DESCRIPTION
9 WC-43055 GUARD, SHOCK RESET THERMOSTAT (WC-522)
10 WC-37266 KIT, FITTING TANK OVERFLOW
11 WC-37317
KIT, STRAIGHT FITTING & BUSHNG 8mm GEN
USE
12 WC-37365 KIT, FITTING TANK INLET
13 WC-37357
KIT, STRAIGHT PLASTIC FITTING AND BUSHING
12MM
ITEM # PART # DESCRIPTION
8 WC-522
THERMOSTAT, HI LIMIT HEATER CONTROL DPST
277V 40A
9 WC-43055 GUARD, SHOCK RESET THERMOSTAT (WC-522)
10 WC-37266 KIT, FITTING TANK OVERFLOW
11 WC-37317 KIT, STRAIGHT FITTING & BUSHNG 8mm GEN USE
12 WC-37365 KIT, FITTING TANK INLET
13 WC-37357
KIT, STRAIGHT PLASTIC FITTING AND BUSHING
12MM

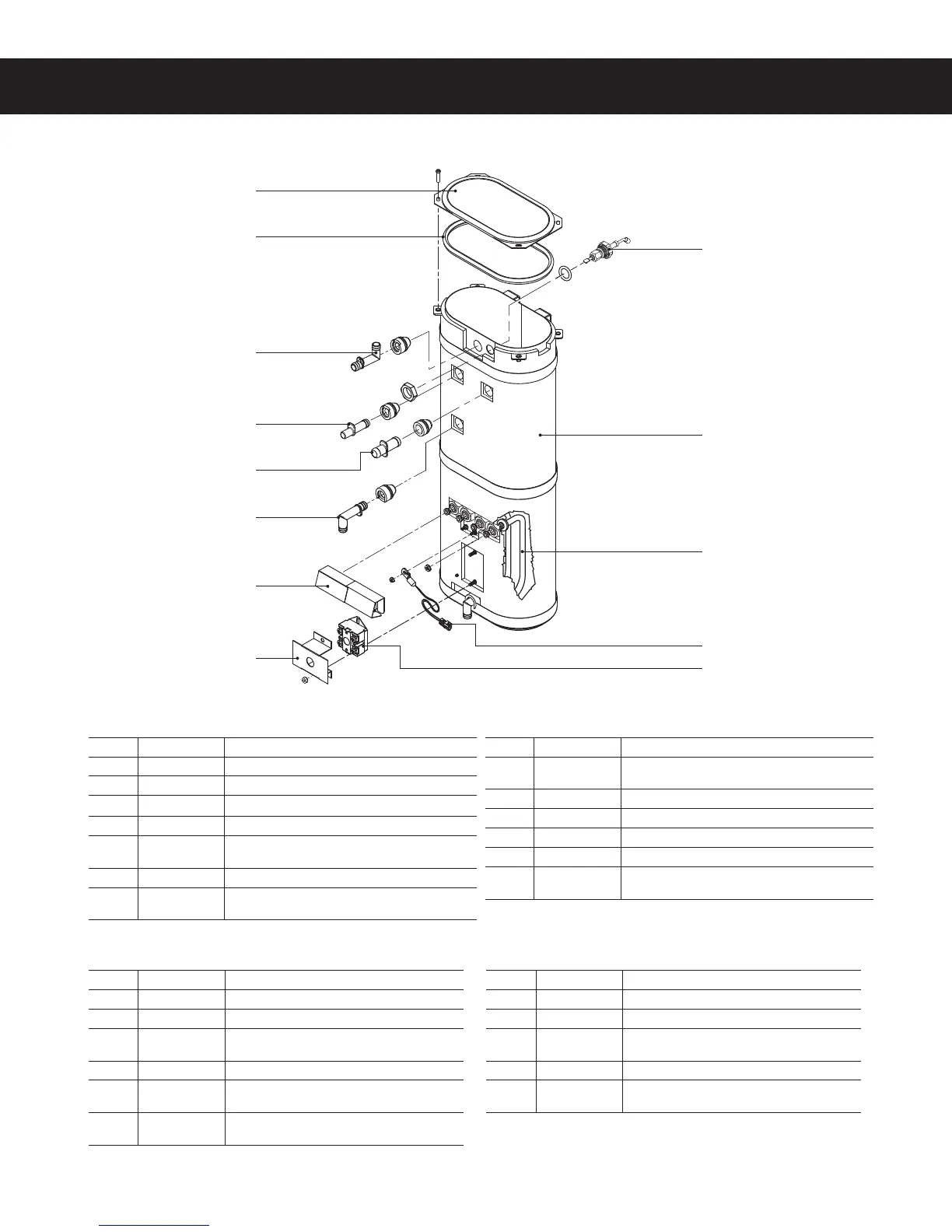

WC-62035 - Tank Assembly
2
3
10
11
13
12
7
9
4
1
5
6
8
