ILLUSTRATED PARTS LIST IP69
RU AUTOMATIC, ILLUSTRATED PARTS/RECOMMENDED PARTS 031022C
RU/URN Series - Heating Elements
URN
MODEL
ELECTRICAL
SUPPLY
ELEMENT
CONFIGURATION
ELEMENT
LOCATION
ELEMENT
PART #
ELEMENT
DESCRIPTION
RU-150-12 208/220V-1 PHASE A - WC-913-01 ELEMENT, HEATING 5KW 220V FOR MED SPIRAL
RU-150-20 208/220V-3 PHASE C
LEFT WC-907-01 ELEMENT, HEATING 1.75KW 220V FORMED LEFT
CENTER WC-907-02 ELEMENT, HEATING 1.75KW 220V FORMED CENTER
RIGHT WC-907-03 ELEMENT, HEATING 1.75KW 220V FORMED RIGHT
RU-225-12 208/220V-1 PHASE B
CENTER WC-911-02 ELEMENT, HEATING 3.5KW FORMED CENTER
EXTERIOR WC-911-01 ELEMENT, HEATING 3.5KW 208/ 220V W/JAM NUT FORMED EXTERIOR
RU-225-20 208/220V-3 PHASE C
LEFT WC-908-01 ELEMENT, HEATING 2.5KW 220V FORMED LEFT
CENTER WC-908-02 ELEMENT, HEATING 2.5KW 220V FORMED CENTER
RIGHT WC-908-03 ELEMENT, HEATING 2.5KW 220V FORMED RIGHT
RU-300-12/
URN-300-12
208/220V-1 PHASE D ALL WC-910 ELEMENT, HEATING 3KW 220V RU’s
RU-300-20/
URN-300-20
208/220V-3 PHASE E ALL WC-908 ELEMENT, HEATING 2.5KW 220V
RU-300-63 208/220V-1 PHASE D ALL WC-912 ELEMENT, HEATING 4KW 220V
RU-600-12/
URN-600-12
208/220V-1 PHASE D ALL WC-913 ELEMENT, HEATING 5KW 220V
RU-600-20/
URN-600-20
208/220V-3 PHASE E ALL WC-911 ELEMENT, HEATING 3.5KW 220V
RU-600-63 208/220V-1 PHASE D ALL WC-913 ELEMENT, HEATING 5KW 220V
RU-1000-12/
URN-1000-12
208/220V-1 PHASE D ALL WC-913 ELEMENT, HEATING 5KW 220V
RU-1000-20/
URN-1000-20
208/220V-3 PHASE E ALL WC-911 ELEMENT, HEATING 3.5KW 220V

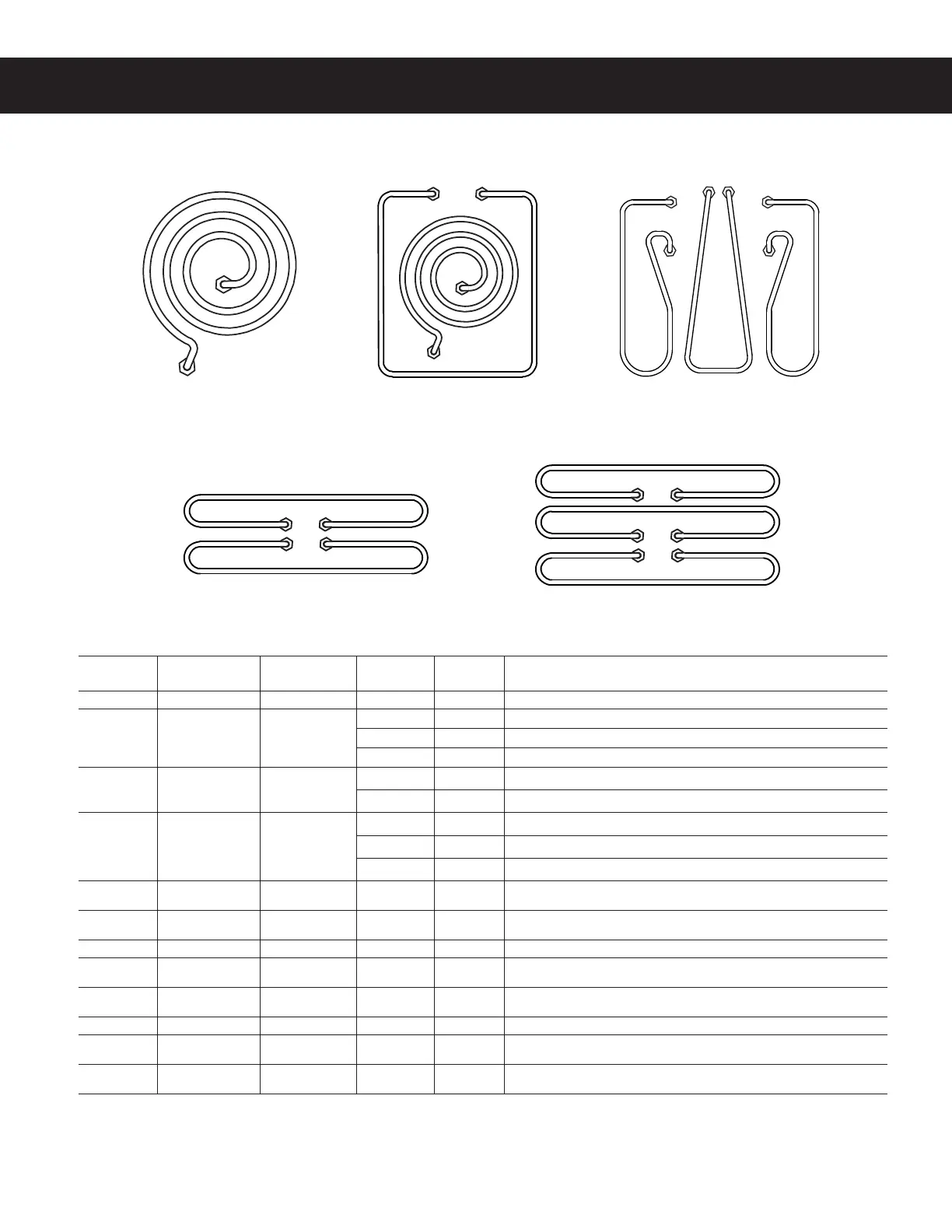

Element ConÀ guration “A” Element ConÀ guration “B” Element ConÀ guration “C”
Center
CenterLeft Right
Exterior
Element ConÀ guration “D” Element ConÀ guration “E”
