Curtis RU Series - Illustrated Parts - Faucets and Spray Arms; RU Series Spray Arms Parts List

ILLUSTRATED PARTS LIST IP69
RU AUTOMATIC, ILLUSTRATED PARTS/RECOMMENDED PARTS 031022C
ITEM # PART # DESCRIPTION
1 WC-2908K KIT, SPRAY ARM ASSY RU-150/300
2 WC-2909 SPRAY ARM ASSEMBLY, RU-225/600/1000
3 WC-4800 SCREW, 8-32 x 1/8” SET S.S.
4 WC-3103K KIT, CAP CLEAN OUT, VALVE CORE RU’S
5 WC-4307 RING, PACKING TEFLON 2-REQ
6 WC-2916 NEEDLE, BY PASS PLTD (SPRAY ARM)
7 WC-4202P-P NUT, 3/8” - 24 JAM, PLATED
8 WC-2914 SPOUT, BY PASS PLTD (SPRAY ARM)
9 WC-3753
KIT, VALVE CORE REPLACEMENT O-RING STYLE
RU’S
ITEM # PART # DESCRIPTION
10 WC-4310
WASHER, 7/8” INTERNAL TOOTH LOCK 410
STAINLESS STEEL
11 WC-4215P NUT, 7/8” JAM PLATED
12A WC-3109K KIT, CORE VALVE RU’S
12B WC-3109-102 VALVE, CORE PLATED URN’S
13 WC-2904 SPRAY HEAD HOLDER PLATED
14* WC-4320
O’RING, 0.487I.D.x 0.693OD x0.103CS BUNA-N
#112
15* WC-2907-P KIT, SPRAYHEAD ASSY RU’S
16 WC-3200** HANDLE, SPRAY ARM BLACK PLASTIC RU/MWM

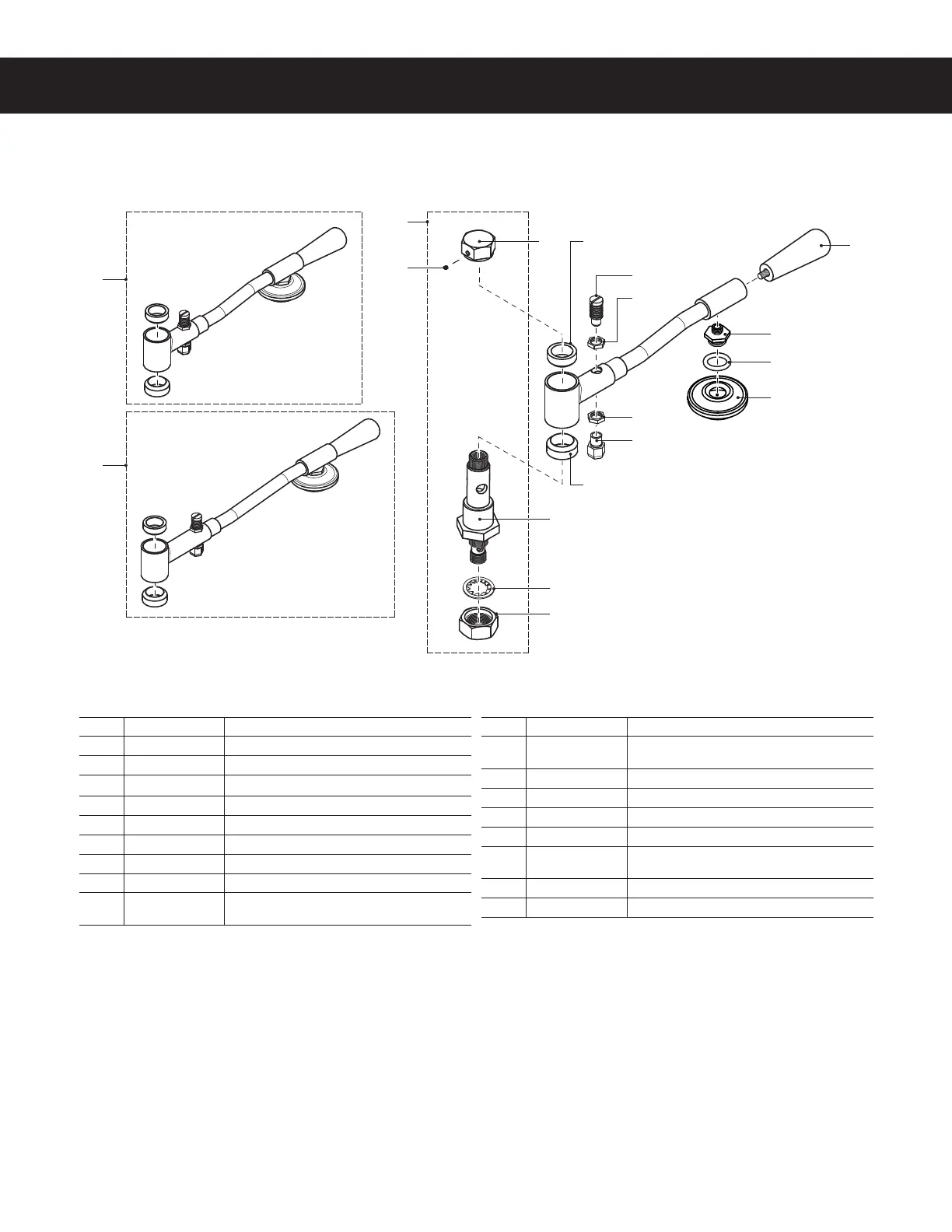

RU/URN Series - Spray Arms - Exploded View
1
2
9
3
12
10
11
13
7
8
16
6
7
54
5
14
15
RU Series Urns - Spray Arms - Parts List
* RECOMMENDED PARTS TO STOCK
** USE ONLY WITH VALVE CORES THAT DO NOT HAVE TEFLON RETRACTORS.
