PRODUCT OVERVIEW
2.3 Card Features
Curtiss-Wright Controls’ GT200 family of products includes PCI and PCI Mezzanine
(PMC) form factor cards.
The PCI and PMC versions provide a host link via the PCI bus. The PCI bus is used in
most standard PCs, and the PMC format is used in most popular single-board computers.
Both of these variations interoperate completely on the link interface, providing seamless
integration between diverse platforms.
2.3.1 GT200 PCI

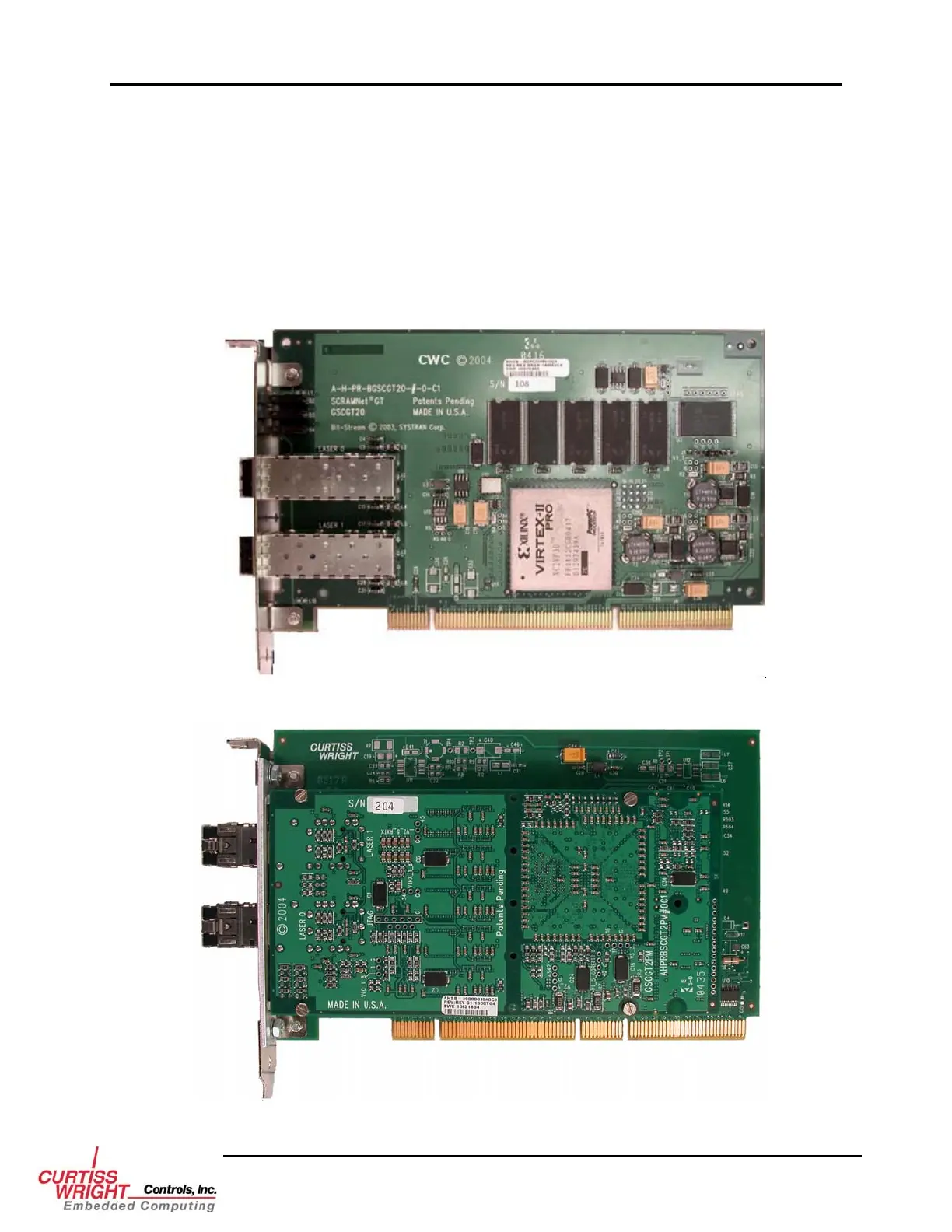

Figure 2-1 GT200 3.3-Volt PCI Card
Figure 2-2 GT200 5-Volt PCI Card
