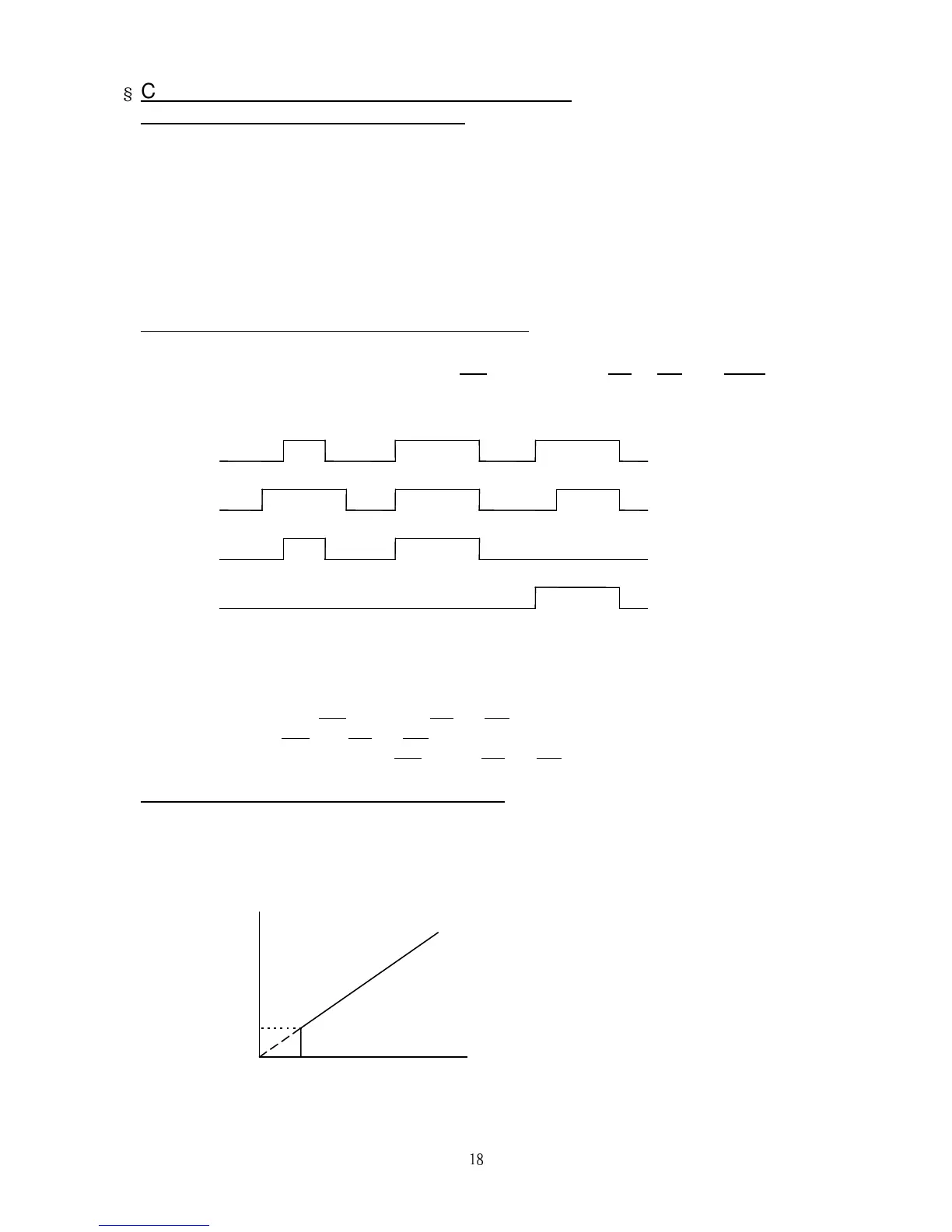

Cd12, 13, 14
Speed setting (Settable range 0.5~240)
This function has 4 kinds of speed setting
The 2
nd
, 3
rd
, 4
th
speeds are set from external terminal FR (or RR) which accommodate
terminal 3, 5, the setting value cannot exceed the allowed range.
Cd12 = 2
nd
speed setting
Cd13 = 3
rd
speed setting
Cd14 = 4
th
speed setting
Note: When apply to multi-speed setting, use external control (e.g. Cd04=1) to start
and use panel to pre-input to set frequency.
§
Cd15
Jogging frequency (Settable range 0.5~30)
To control jogging, use external terminal DI3 accommodate FR or RR with COM shorted.
Set running direction
Note: Jogging operation is valid only when operation command selects the
external operation signal mode (e.g. Cd04=1) and Cd59=0 or 1.
Jogging operation procedures:
1. First put in DI3, and then FR (or RR).
2. Put in DI3 and FR (or RR) simultaneously.
Be sure always to put in DI3 before FR (or RR).
§
Cd16
Start frequency (Settable range 0.5~60)
Set motor start frequency
Settable range of frequency from 0.5Hz to 30Hz, accuracy is 0.01Hz.
Time
Start
Frequency
Frequency
Note: The most appropriate range for start frequency is 0.5Hz to 10Hz.
Set running direction
FR or RR
DI3
