§ Cd53 Motor slip differential compensation (Settable range 0~100)
This function is to compensate speed variation produced by load variation.
This function must accommodate the content of Cd52.
Setting value 0-100 in relative slip differential 0.0-10.0%
Ex. 60HZ, 4-pole 1700 rpm
Synchronous speed = 1800 rpm
Full-load speed = 1700 rpm
Slip differential speed = 1800-1700=100 rpm
Slip differential % = Slip differential speed / Synchronous speed ×
100%
= 100 / 1800 × 100%
= 5.5%, Setting Cd52=55

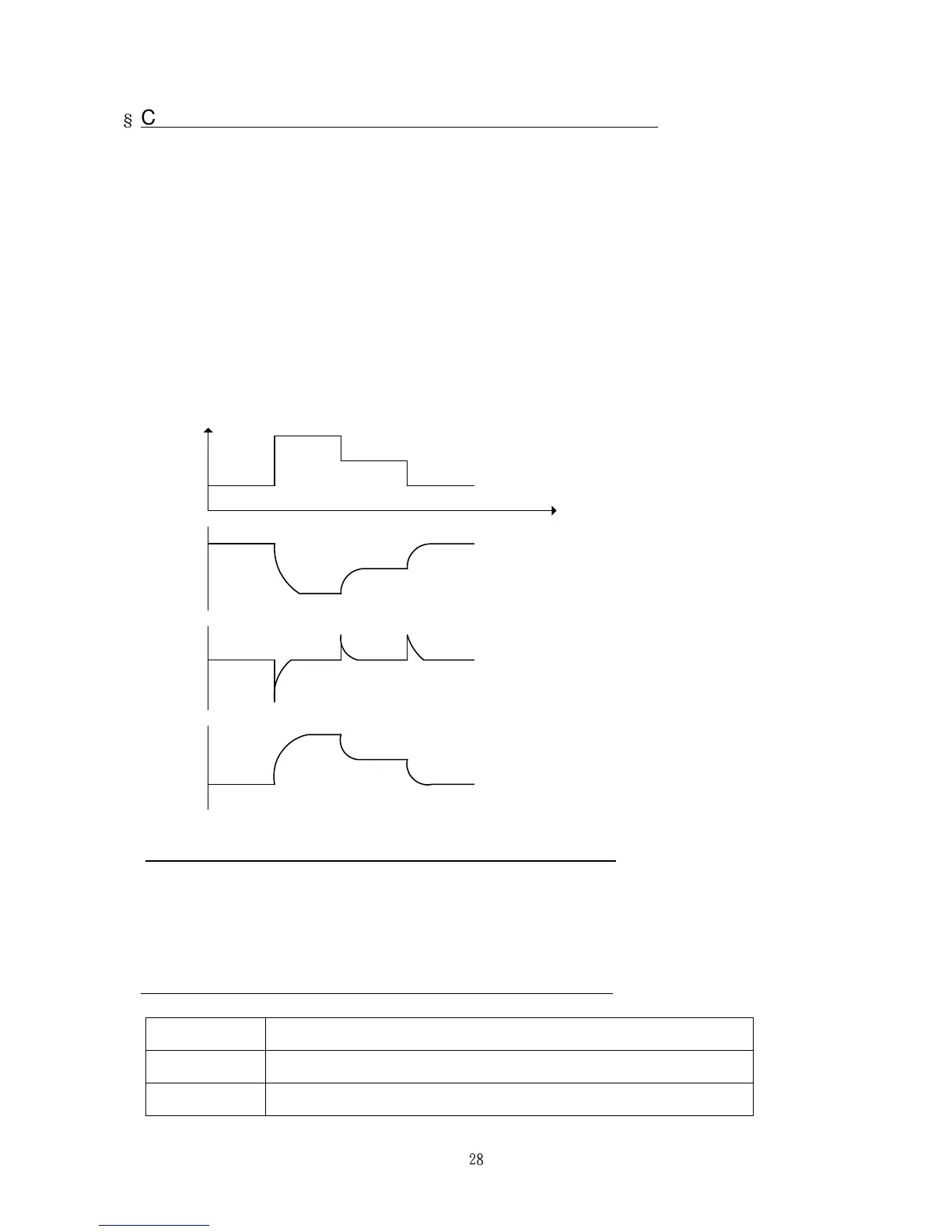

Slip differential compensation
Load
variation
Motor
speed
Motor
speed
Output
frequency
Time
Without slip
differential
compensation
With slip
differential
compensation
With slip
differential
compensation
§ Cd54 External analog output selection (Settable range 0~1)
Indicate analog output Vout terminal （ 0 ～ 10V ） Physical definition of output single.
Cd54=0 Indicate output frequency.
Cd54=1 Indicate output current
§ Cd55 External analog input selection (Settable range 0~1 ）
Setting value
IN1 、 IN2
0
0V indicate 0HZ ， 10V indicate operation highest frequency 。
1
0V indicate operation highest frequency ， 10V indicate 0HZ 。
