Cd59
Stagnancy of current detected (2~10%)
This function accommodate the content of Cd47
、
Cd48
When Cd47=7
，
Detect current level over Cd48
，
input RELAY
，
but current must be
decreased to equal to the value of C48 minus the value of Cd59
，
RELAY will be
opened.
§

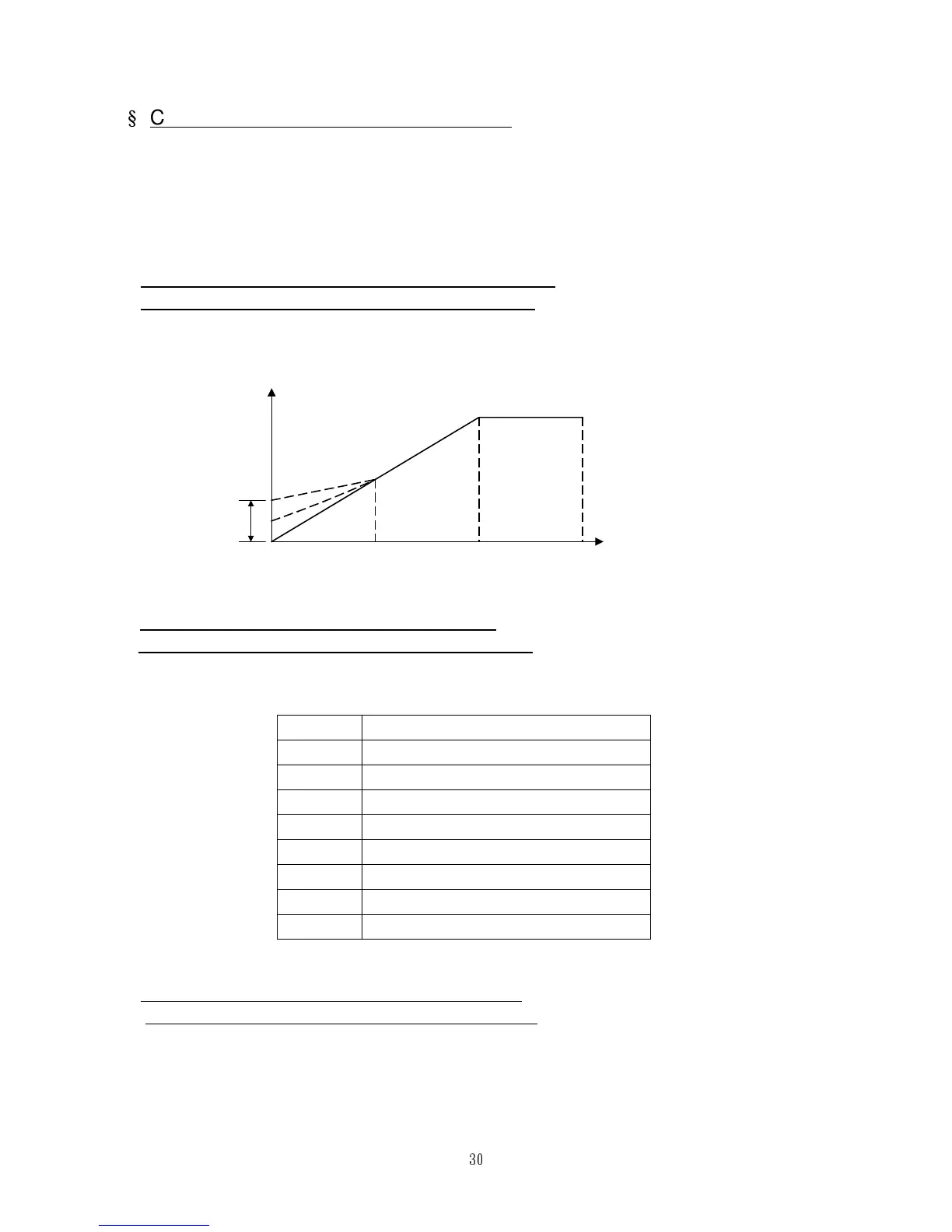

Cd60
V / F frequency FC (Settable range 0.5~240)
This function cannot be modified during revolution.
To set V/F slope frequency FC when Cd05=11.
Settable range 10Hz-240Hz (FC
≦
Fb)
Output Voltage
Output Frequency
(HZ)
15%
0%
150
0
FC Fb FH
Cd7 VB
Cd60 Cd58 Cd57
§
Cd61
PWN frequency (Settable range 0~7)
This function cannot be modified during revolution.
This function is to set PWM frequency.
Cd61 PWM Frequency
0 Setting by Cd62 (1.5-4.0Hz)
1 4 KHZ
2 5 KHZ
3 6 KHZ
4 7 KHZ
5 8 KHZ
6 9 KHZ
7 10 KHZ
Note: When exceed 10kHz, please set=0, maxima 16khz by Cd62
§
Cd62
PWM Frequency (Settable range 15~160)
This function cannot be adjusted during operation.
This function is to set PWM frequency. Frequency (KHZ)= settable value/ 10
Ex: Cd62 = 15, PWM Frequency = 1.5KHz
Ex: Cd62 = 30, PWM Frequency = 3.0KHz
