CyberPower CPS1500AVR User Manual

8. Windows will find new hardware.
TM
9. Insert the PowerPanel Plus (Primary) disk into the floppy drive.
10. Follow the on-screen instructions.
11. Once the software has finished installing, remove the floppy disk and restart your computer.
TM

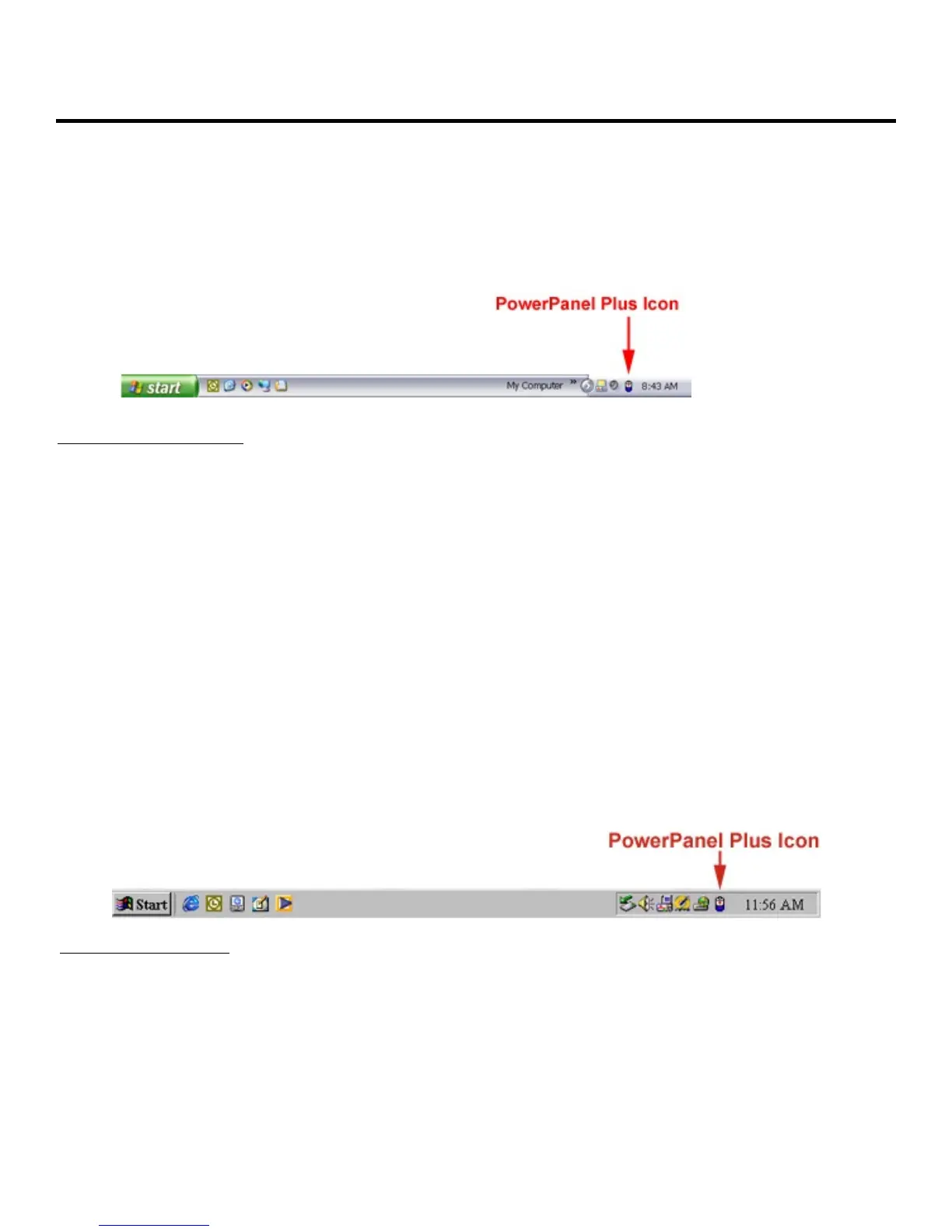

When your computer restarts, the PowerPanel Plus software will appear on your screen
for a few seconds, and then minimize. It will appear as a blue and white battery icon, located
in the system tray, near the clock.
FOR WINDOWS 2000
1. Click on Start, point to Settings, then click Control Panel.
2. Double-click on Power Options.
3. On the UPS tab, click Select.
4. In the UPS selection dialog box, under Manufacturers, select none.
5. Exit to the desktop.
6. Shutdown the computer.
7. Turn the UPS off and unplug it.
8. Connect the serial interface cable to the UPS and an open serial port on the back of your
computer. You must use the serail cable that was provided with the unit.
9. Plug the UPS into an AC outlet, turn the UPS on and start your computer.
10. Windows will find new hardware.
TM
11. Insert the PowerPanel Plus (Primary) disk into the floppy drive.
12. Follow the on-screen instructions.
13. Once the software has finished installing, remove the floppy disk and restart your computer.
TM
When your computer restarts, the PowerPanel Plus software will appear on your screen
for a few seconds, and then minimize. It will appear as a blue and white battery icon, located
in the system tray, near the clock.
FOR WINDOWS NT
1. Click on Start, point to Settings, and then click Control Panel.
2. Double-click on the UPS icon.
3. Remove the check mark from the box labeled “UPS is Installed On:”.
4. Click OK.
5. Acknowledge the message that the UPS service is in an unknown state.
6. Exit to the desktop.
7. Shutdown the computer.
8. Turn off the UPS and unplug it.
5
CPS1500AVR
Guaranteed Uninterruptible Power System

CyberPower CPS1500AVR Specifications

General

Output power	950 W
Input frequency	50/60 Hz
Audible alarm(s)	Yes
Surge energy rating	1.800 J
Output power capacity	1.5 kVA
Weight (imperial)	58 lbs
Dimensions (WxDxH)	438.15 x 400 x 89 mm
Operating temperature (T-T)	32 - 95 °F
Dimensions (W x D x H) (imperial)	17.25 x 15.75 x 3.5 \
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Typical backup time at full load	6 min
Typical backup time at half load	18 min
Modem (RJ-11) ports	1
Serial ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Operating relative humidity (H-H)	0 - 95 %
Certification	UL1778, cUL, FCC DOC Class B

Weight and Dimensions

Weight	26308 g
