5. Clear - Clears the selected item from the schedule.
6. Add - Adds an item to the schedule.
7. OK - Exits the window. Please note: You must click Add to add the item to the schedule.
8. Turn Off - Select the day/date/time that you want the system to shutdown. This is optional and
has no effect on whether your computer will shut down during a power failure.
9. Weekly Setting - Allows you to schedule a shutdown/startup based on the day of the week.
TM

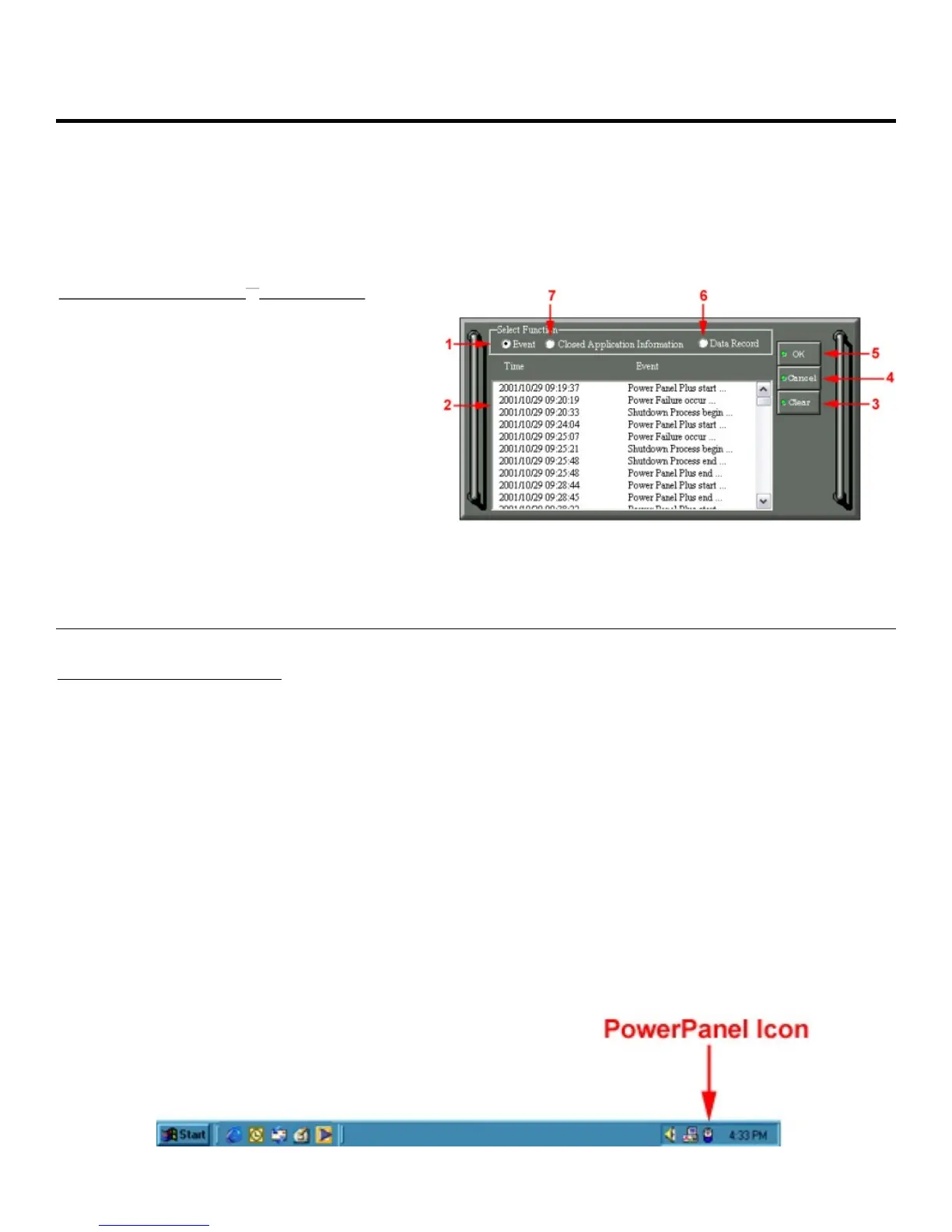

POWERPANEL PLUS LOG MENU
1. Event Option Button - When selected,
the log will display different events, such as
power failure, program start and program end.
2. Log Display - Displays information as
selected by the Event, Closed Application
Information, or Data Record option button.
3. Clear - Clears the selected log.
4. Cancel - Exits the screen without saving
any changes.
5. OK - Exits the screen and saves changes.
6. Data Record Option Button - When selected, the log will display a record of items that are
shown in the main window, such as input/output voltage and temperature.
7. Closed Application information Option Button - When selected, the log will display the
names and locations of any files that were auto-saved by the software.
9
TM
POWERPANEL INSTALLATION GUIDE
FOR WINDOWS 95/98/ME
1. Turn the UPS off and unplug it.
2. Connect the serial interface cable to Serial Port II on the UPS and an open serial port on your
computer. You must use the serial cable that was provided with the unit.
3. Plug the UPS into and AC outlet, turn the UPS on and start the computer.
TM
4. Once the computer was finished booting, insert the PowerPanel disk into the floppy drive.
5. Click on Start, point to Settings, and then click Control Panel.
6. Double-click on Add/Remove Programs.
7. Click the Install Button.
8. Follow the on-screen instructions.
9. Once the installation is finished, remove the floppy disk and restart your computer.
TM
When your computer restarts, the PowerPanel software will appear on your screen
for a few seconds, and then minimize. It will appear as a blue and white battery icon, located
in the system tray, near the clock.
CPS1500AVR
Guaranteed Uninterruptible Power System

Other manuals for CyberPower CPS1500AVR

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the CyberPower CPS1500AVR and is the answer not in the manual?

CyberPower CPS1500AVR Specifications

General IconGeneral
Output power950 W
Input frequency50/60 Hz
Audible alarm(s)Yes
Surge energy rating1.800 J
Output power capacity1.5 kVA
Weight (imperial)58 lbs
Dimensions (WxDxH)438.15 x 400 x 89 mm
Operating temperature (T-T)32 - 95 °F
Dimensions (W x D x H) (imperial)17.25 x 15.75 x 3.5 \
Battery technologySealed Lead Acid (VRLA)
Battery recharge time8 h
Typical backup time at full load6 min
Typical backup time at half load18 min
Modem (RJ-11) ports1
Serial ports quantity2
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Operating relative humidity (H-H)0 - 95 %
CertificationUL1778, cUL, FCC DOC Class B
Weight and Dimensions IconWeight and Dimensions
Weight26308 g
