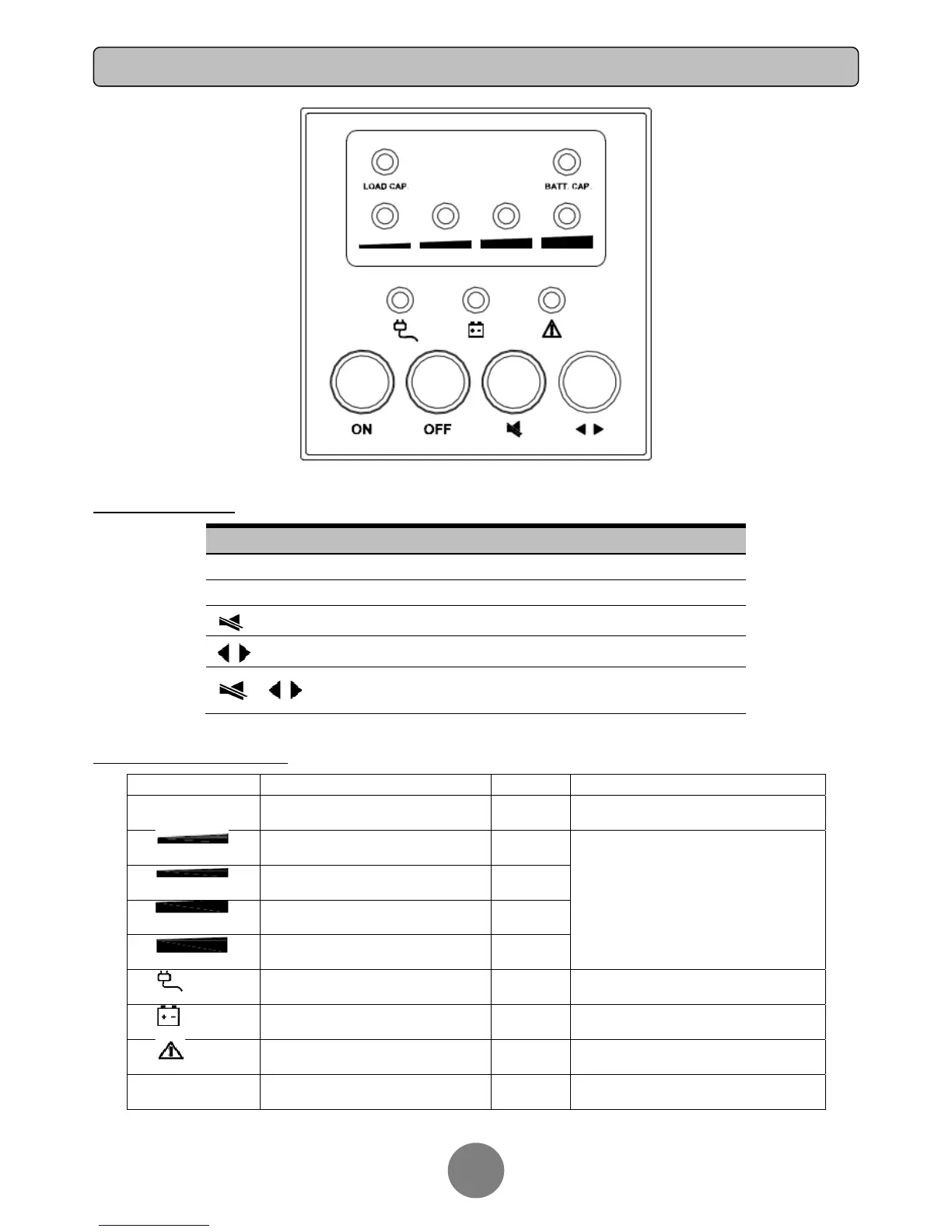

BUTTON OPERATION
Button Operation Description
ON
Press this button to turn on UPS.
OFF
Press this button to turn off UPS.
Press this button simultaneously for 5 seconds to disable or
enable the alarm system while in battery mode.
Press this button to select load level or battery capacity
display function on LED panel.
+
Switch to bypass mode: When the main power is normal,
press these two buttons simultaneously for 5 seconds, then
UPS will enter to bypass mode.
LED PANEL– UPS STATUS
LED Indicator
LED FUNCTION COLOR DESCRIPTION
1#:LOAD.CAP
Load Capacity GREEN If 1# LED lights up, 2-5# LEDs indicate
the load level of UPS
2#:
LOAD/BAT Level Display LED
(0-25%)
ORANGE The LEDs indicate the load level or
battery capacity of UPS
3#:
LOAD/BAT Level Display LED
(26-50%)
ORANGE
4#:
LOAD/BAT Level Display LED
(51-75%)
ORANGE
5#:
LOAD/BAT Level Display LED
(76-100%)
ORANGE
6#:
LINE LED GREEN When the UPS works in line mode, 6# LED
lights up
7#:
BATTERY LED ORANGE When the UPS works in battery mode, 7#
LED lights up
8#:
FAULT LED RED This icon appears there is a problem
with the UPS
9#: BATT.CAP
Battery Capacity GREEN If 9# LED lights up, 2-5# LEDs indicate
the battery capacity of UPS
