Setup
and Assembly
Page 5-13
Cybex Arc Trainer 630A Owner’s Manual
! Warning: To prevent injury, this apparatus must be securely attached to the equipment in
accordance with these installation instructions.
Cybex Personal Entertainment Monitor - Optional
Tools Required
• 3 mm Allen wrench (supplied with unit)
• 7/32” Allen wrench (supplied with unit)
1. Please read instructions thoroughly before
beginning.

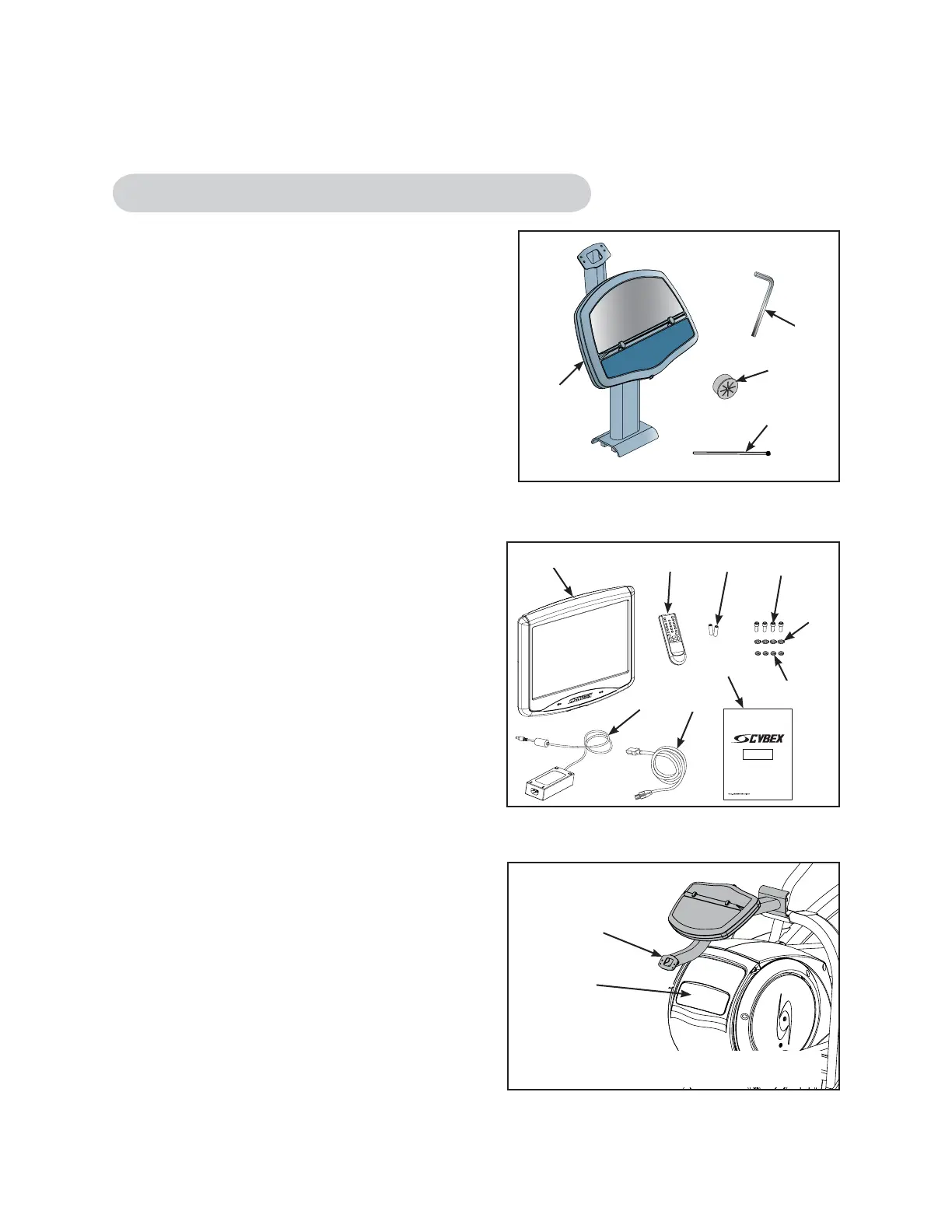

2. Verify the kit contents shown in Figure 17.
A. Console with monitor mount (1), 630A-220
B. Coax and power cables (1), 630A-104 (in Arc
frame)
C. Strain relief bushing (1), PP740000
D. 3 mm Allen wrench (1), BK030210
E. Poster (1), 630A-384 (not shown)
F. Warranty sheet (1), LT-20219 (not shown)
G. Cable tie (2), EW000028
3. Verify the monitor kit contents shown in
Figure 18.
H. Monitor (1), EE000005 or EE000007
I. Remote control (1), EM000000
J. Batteries, Remote control, AAA size (2), N/A
K. Screws, Mounting, M4 x 0.7 x 10 mm (4),
HC692860
L. Washers, External Lock, (4), HS047300
M. Washers, Flat, M4 (4), HS097600
N. AC/DC Adapter (1), ET300038
O. Power cord, 115 VAC 60 Hz, (Country
specific cords supplied with product), (1),
EW600000
P. Personal Entertainment Monitor Manual (1),
LT-20191
4. Installing the coax and power cables in the
console mount.
A. Lay the console mount on the Arc Trainer
as shown in Figure 19. NOTE: This will allow
easier access to route the cable assembly.
Figure 17
Figure 18
H
I
J
K
L
M
N
O
P
Console
Mount
NOTE: Place cloth under console mount
to protect the shroud from damage.
Shroud
Figure 19
D
C
A
G
To Next Page
