Setup
and Assembly
Page 5-15
Cybex Arc Trainer 630A Owner’s Manual

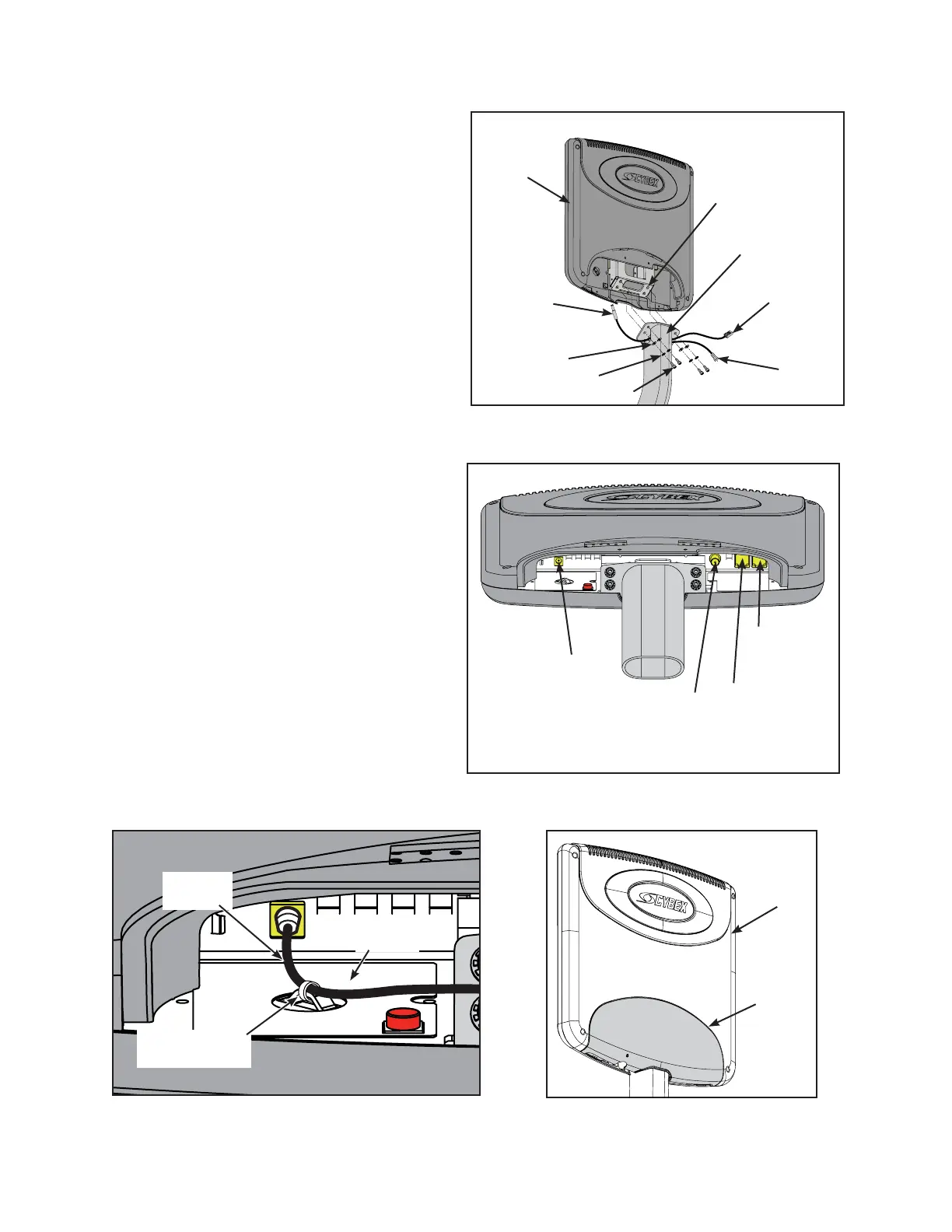

Figure 24
To Fitness
Equipment
RJ-45
Power Inlet
12 VDC
Antenna/
Cable
Source
(Coax Cable)
To CSAFE
Device
Figure 23
(H)
(M)
(K)
Monitor
Mount
(L)
RJ-45
Cable
(B)
Power
Cable
(B)
Coax
Cable
Monitor
Bracket
C. Insert the power cable of (B) through
hole on left side of monitor mount.
See Figure 23.
D. Insert the RJ-45 cable and the coax
end of (B) through hole on right side
of monitor mount. See Figure 23.
E. Using a 3 mm Allen wrench secure
the monitor bracket to the monitor
mount using the four mounting
screws (K), four lock washers (L)
and four flat washers (M).
See Figure 23.
F. Insert the power cable, coax cable
and RJ-45 cable into the monitor
as shown in Figure 24. NOTE: Use
of the CSAFE port is optional and
requires a CSAFE cable and device.
G. Secure the power cable to the
monitor plate using the cable tie (G).
See Figure 25.
H. Install the back cover to the monitor
(H). See Figure 26.
Figure 25
Power
Cable
Secure Cable
Tie Here
Monitor
Plate
Figure 26
(H)
Back
Cover
To Next Page
