Cybex Arc Trainer 750A/750AT Owner’s Manual
41
PAUSE/END Stop Exit Active Mode and go to Pause Mode if enabled.
If Pause Mode is not enabled, work out ends and
Review Mode is entered.
INCLINEΛV Set incline Toggle (Λ V) to increase or decrease incline
QUICK START Quick Start Manual
Mode
Go directly to Quick Start Manual Mode
RESISTANCE + - Adjust resistance Toggle (+ - ) to increase or decrease resistance
Keypad (Program Setup)
TIME Workout time Adjust workout time
LEVEL Workout level Adjust program level (1-10)
WEIGHT User’s Weight When pressed, number keypad is active to allow
keying in body weight
CLEAR/EXIT Multiple uses Reset an entry, back out of a menu, exit the TV’s
EPG mode or reset workout data if in Active Mode
SAVE Save program Save recorded custom workout
TV TV Channel Allows keying in TV channels
ALARM CLOCK Workout alarm
clock
Activate or deactivate workout alarm clock
RESISTANCE Choose resistance Allows direct entry of resistance 0-100
FAN HI High setting Set fan to high setting
FAN LO Low setting Set fan to low setting
FAN OFF Turn fan off Default
ENTER Accept any setting Moves setup process forward

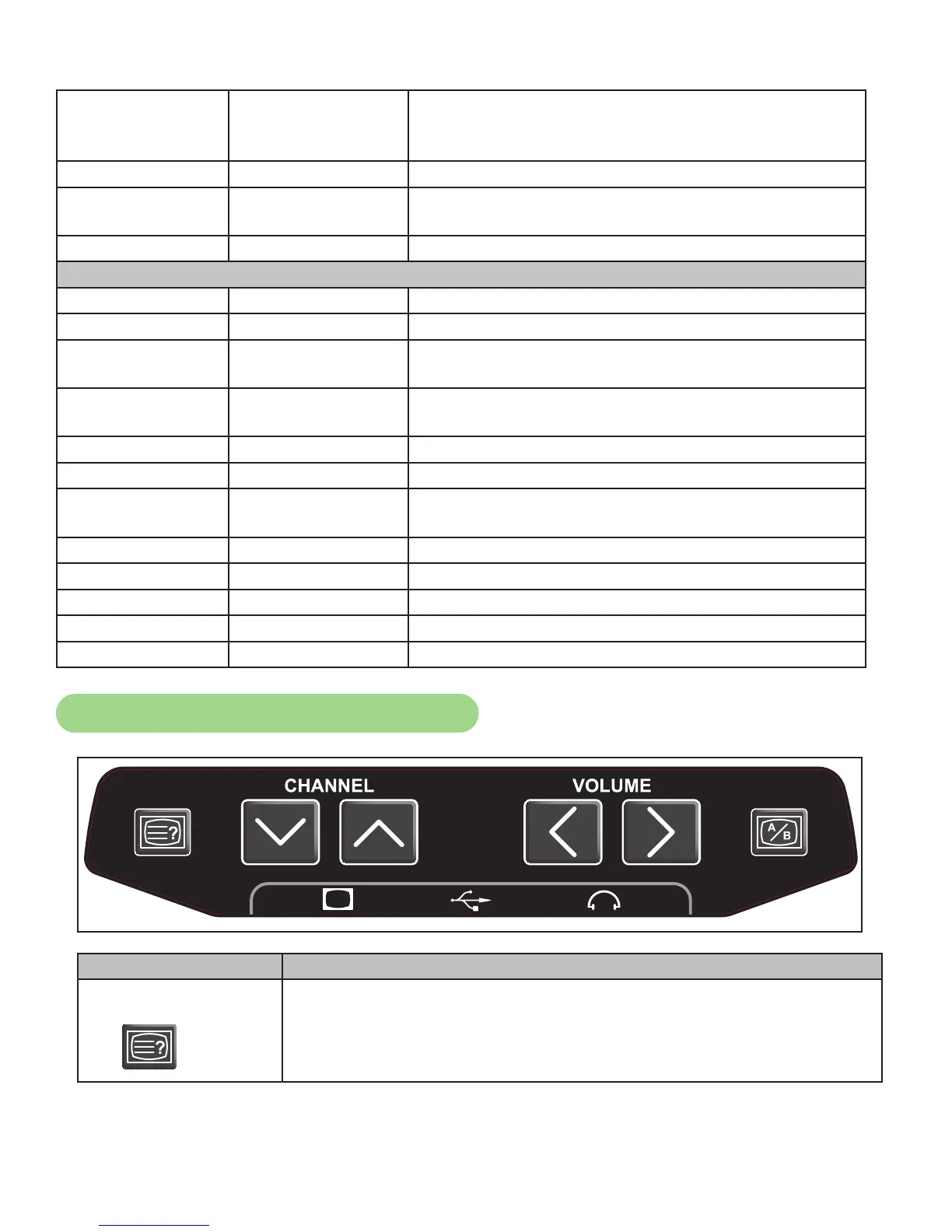

Audio Visual (AV) Key Pad - Optional
Console Key Description
EPG
SW-20813-4
B 5
BGarber
2 OF 2
REVISIONS
DESCRIPTION
ECOREV
DATE APPROVALBY
10 TROTTER DRIVE
MEDWAY, MA
REV.
SHEET
SIZE
APPROVALS
DRAWN BY
MATERIAL
FINISH
ADOBE GENERATED DRAWING
DO NOT MANUALLY UPDATE
CHECKED
RESP ENG
MFG ENG
QUAL ENG
DATE
DWG. NO.
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
TOLERANCES ARE:
FRACTIONS DECIMALS ANGLES
± .XX ± .02 ± 1
.XXX ± .005
FINISH: 125 RMS
SCALE: 1=1 THIS FILE IS IN ADOBE ILLUSTRATOR
DO NOT SCALE DRAWING
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF CYBEX.
ANY REPRODUCTION IN PART OR WHOLE WITHOUT
THE WRITTEN PERMISSION OF CYBEX IS PROHIBITED.
.
.
.
. ..
.
.
. . .
.
.
. . .
.
MEMBRANE
A/V CONTROLS,
ENGLISH
5 of 8
Please see Page 1 for revision history
6/20/08
?
B
A
CHANNEL VOLUME
= 70-93
= 94-120
= 121-170
= 171 & UP
Beats Per Minute
HEART RATE ZONE
= 0-69
= 70-93
= 94-120
= 121-170
= 171 EN HOGER
?
B
A
If an Electronic Program Guide (EPG) is available, this will be
displayed on the TV. Use the CHANNEL ΛVand VOLUME < > keys
to navigate in the EPG, ENTER to accept any selections, and CLEAR/
EXIT to exit the EPG mode.
