Cybex Arc Trainer 750A/750AT Owner’s Manual
7
Unit with A/V Options
Devices connected to Cybex equipment must comply with appropriate safety standards. This includes
but not limited to: UL 1647 and EN 60335-1.
There must be adequate mechanical mounting of the device in all combinations (congurations).
Device must be stable on the unit in all congurations.
Warning and Caution Decals
NOTE: To replace any worn or damaged labels, Customer Service for contact information.
Warning decals indicate a potentially hazardous situation which, if not avoided, could result in death
or serious injury.
Carefully read and understand the following caution and warning labels before using the unit.

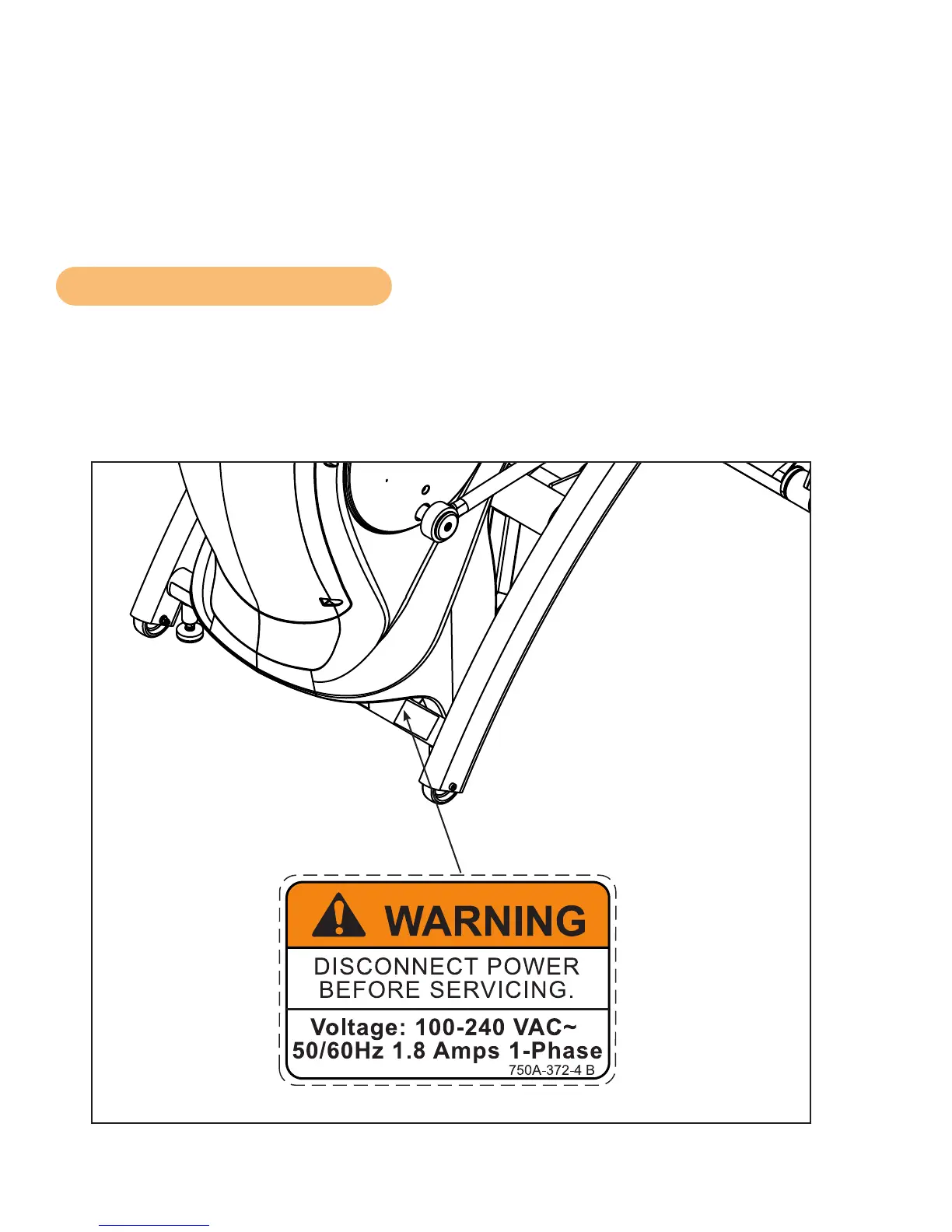

Warning decal part number
750A-372-4 (if applicable)
DECAL, DISCONNECT POWER
ENGLISH
REL
7-24-08
750A-372-4
125
1:1
OWATONNA
MFG. APPR.
TECH. PUBS. APPR. DATE
DATE
REV.
DWG. NO.
SCALE
SIZE
CHECKED BY
DWG. BY
TITLE:
FINISH:
MATERIAL:
B
SHEET
OF
EXCEPT AS NOTED
GENERAL
TOLERANCES:
2 DECIMALS ± .03
3 DECIMALS ± .015
ANGLES ± 1°
FEATURES SHOWN
PERPENDICULAR OR
PARALLEL SHALL BE
SO WITHIN ± 1°
REMOVE ALL BURRS
BREAK SHARP EDGES
.005/.010 R
SURFACE FINISH
INDICATED PER
ANSI B46.1-1985
GENERAL
MACHINING
DIMENSIONS
IN INCHES
DATE
DATE
REMOVE CARBURIZATION
AND SCALE FROM LASER
AND PLASMA CUT EDGES
ALL MATERIAL MUST COMPLY TO
EUROPEAN UNION DIRECTIVE
2002/95/EC RoHS (RESTRICTION
OF HAZARDOUS SUBSTANCES)
1 1
B
NOTE: SEE ENGINEERING DRAWING 750A-372-X FOR SPECIFICATIONS.
BB
8-13-08
EML
8-13-08
750A-372-4 B
WARNING
DISCONNECT POWER
BEFORE SERVICING.
Voltage: 100-240 VAC~
50/60Hz 1.8 Amps 1-Phase
2.00
1.25
R .10
4 PLACES
SAFETY ORANGE PMS 152
BLACK TRIANGLE W/ ORANGE
EXCLAMATION POINT, BLACK LETTERS
18 PT ARIAL BOLD FONT
PART NUMBER
6 PT ARIAL TEXT
WHITE BACKGROUND WITH
BLACK 10 PT ARIAL TEXT
WHITE BACKGROUND WITH
BLACK 10 PT ARIAL BOLD TEXT
