125
1:1
OWATONNA
MFG. APPR.
TECH. PUBS. APPR. DATE
DATE
REV.
DWG. NO.
SCALE
SIZE
CHECKED BY
DWG. BY
TITLE:
FINISH:
MATERIAL:
B
SHEET
OF
EXCEPT AS NOTED
GENERAL
TOLERANCES:
2 DECIMALS ± .03
3 DECIMALS ± .015
ANGLES ± 1°
FEATURES SHOWN
PERPENDICULAR OR
PARALLEL SHALL BE
SO WITHIN ± 1°
REMOVE ALL BURRS
BREAK SHARP EDGES
.005/.010 R
SURFACE FINISH
INDICATED PER
ANSI B46.1-1985
GENERAL
MACHINING
DIMENSIONS
IN INCHES
DATE
DATE
REMOVE CARBURIZATION
AND SCALE FROM LASER
AND PLASMA CUT EDGES
ALL MATERIAL MUST COMPLY TO
EUROPEAN UNION DIRECTIVE
2002/95/EC RoHS (RESTRICTION
OF HAZARDOUS SUBSTANCES)
DE-17155-4
DECAL, WARNING
ENGLISH
1 1
B
JT
7-22-03

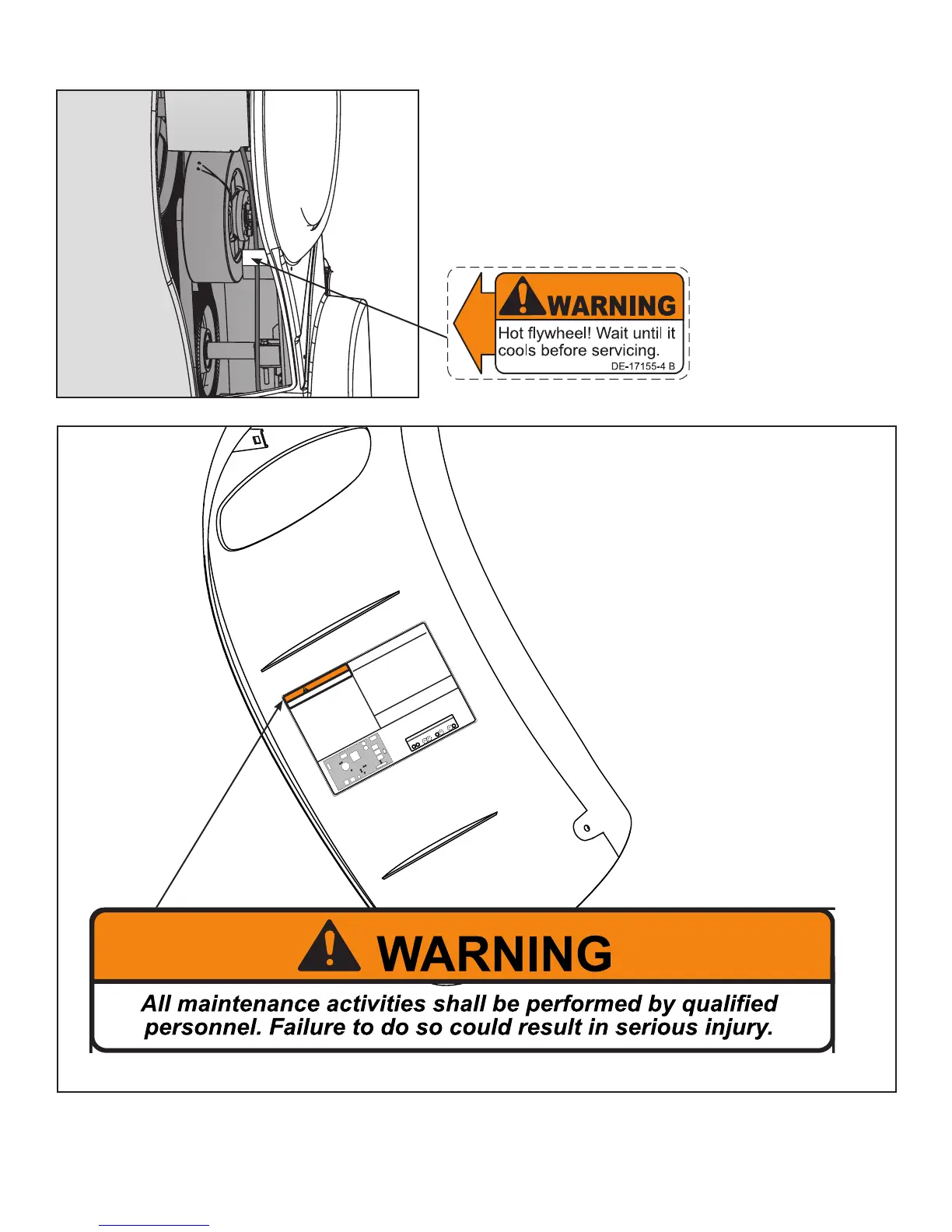

WARNING
DE-17155-4 B
Hot flywheel! Wait until it
cools before servicing.
SAFETY ORANGE PMS 152
BLACK TRIANGLE W/ ORANGE
EXCLAMATION POINT, BLACK LETTERS
17.54 PT ARIAL BLACK FONT
WHITE BACKGROUND WITH
BLACK 10.5 PT ARIAL TEXT
PART NUMBER
6.5 PT ARIAL TEXT
NOTE: This is the minimum recommended service.
NOTE:
If using optional AC Power Kit, unplug unit from wall outlet.
Determine mileage.
1.Start
pedaling unit.
2.During initial countdown, press CLEAR 9,9,9 ENTER.
The firstmenu item is ODOMETER. Press ENTER
to view accumulated distance.
First 500 Miles / 800 Km
A Check drive belts for tension and wear.
Every 5000 Miles / 8000 Km
A Check drive belts for tension and wear.
B Move unit and vacuum underneath.
C Remove access cover to clean inside - u
Every 20,000 Miles / 32000 Km
D Check elevation assembly and replace worn p
Service Schedule
LED 1 - Console Transmit
LED 2 - Console Receive
LED 3 - Battery Charge Status
LED 4 - Battery Charge Status
LED 5 - Powered from Generator
LED 6 - Brake Current
LED 7 - +12V External Power
LED 8 - Display Voltage (+12V)
LED 9 - Elevation Motor Down
LED 10 - Elevation Motor Up
Diagnostic LED Designation
All maintenance activities shall be performed by qualified
personnel. Failure to do so could result in serious injury.
NOTE: Refer to Service Manual for detailed trouble shooting information.
Set up (CLEAR 7,5,0, ENTER)
Diagnostic (CLEAR 8,8,8, ENTER)
Statistics (CLEAR 9,9,9, ENTER)
Entering Hidden Menus
A.Clean Brake/Enclosure
B.Check Connections
C.Check Fuse
D.Check Battery
750A-329-4
8Approaching Over-Temperature
9Display watchdog triggered B,H,K
22Speed irregularity - Low speed and High power
23Speed irregularity - High speed and Low power
24Incline moving too slowly D,F,J
25Incline movement feedback stopped
26Incline disabled C,D,E,F,J
27Low Battery B,G,I,K
28Over-Temperature A,B,C,G
29Controller watchdog triggered - EEPROM or Memory Error
Error Codes
BATTERY STATUS FROM LEDs 4 AND 3
NO
BATTERY
PRE
CHARGE
HIGH
CHARGE
TRICKLE
CHARGE
4
3
4
3
4
3
4
3
