CYBEX CX-445T User Manual

Cybex 445T Treadmill Owner’s Manual
Assembly
and Setup
Page 2-8
#16
#6
#8
#16
#7
D. Check to see that all of the cables are
connected firmly in their proper place.
See Figure 8.
E. While being sure not to pinch any
cables, use a Phillips screwdriver to
secure the seven screws 8-16 x .50”
(#14) that hold the console assembly
(#2) to the console back (#4). See
Figure 9.
F. Using a Phillips screwdriver secure the
two screws (#13) securing the console
assembly (#2) to the upright assembly
(#3). See Figure 9.
G. Using a Phillips screwdriver secure
the two screws (#14) securing the
console back cover (#5) to the
console front (#4). See Figure 10.
9. Attach the motor cover (three
pieces).
A. Using a Phillips screwdriver, partially
tighten each motor cover side (left
and right) with four screws, 10-32 x
.75” (#16). See Figure 10.
B. Place the motor cover center (#6)
into position. See Figure 11.
C. Using a Phillips screwdriver, finish
tightening all four screws. Be sure
the screws are securing the motor
cover’s tabs.

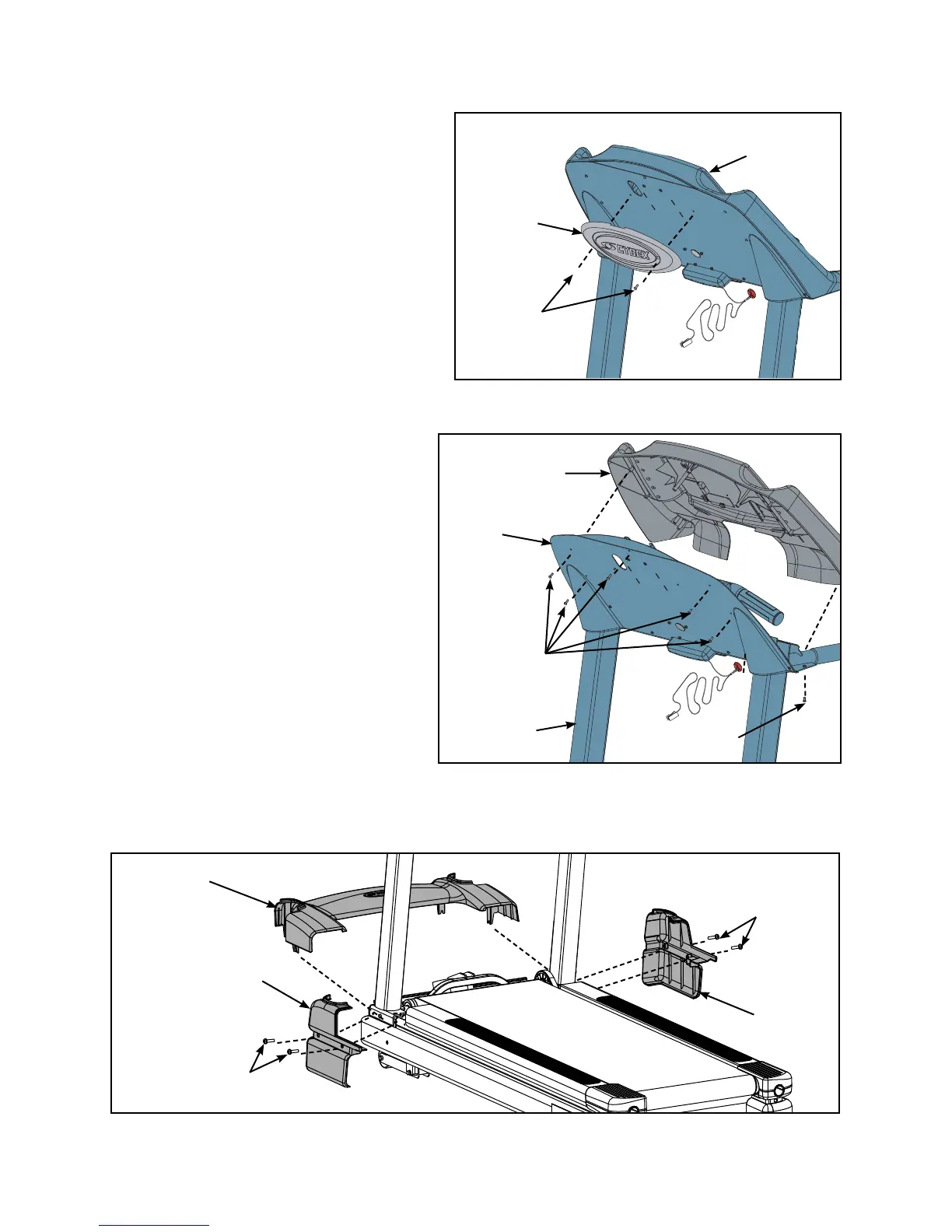

Figure 9
Console
Assembly
Back
Cover
Screws
Figure 10
Screws
Machine Screw
Console
Assembly
Upright
Assembly
Console
Back
Figure 11
