CYBEX R Series

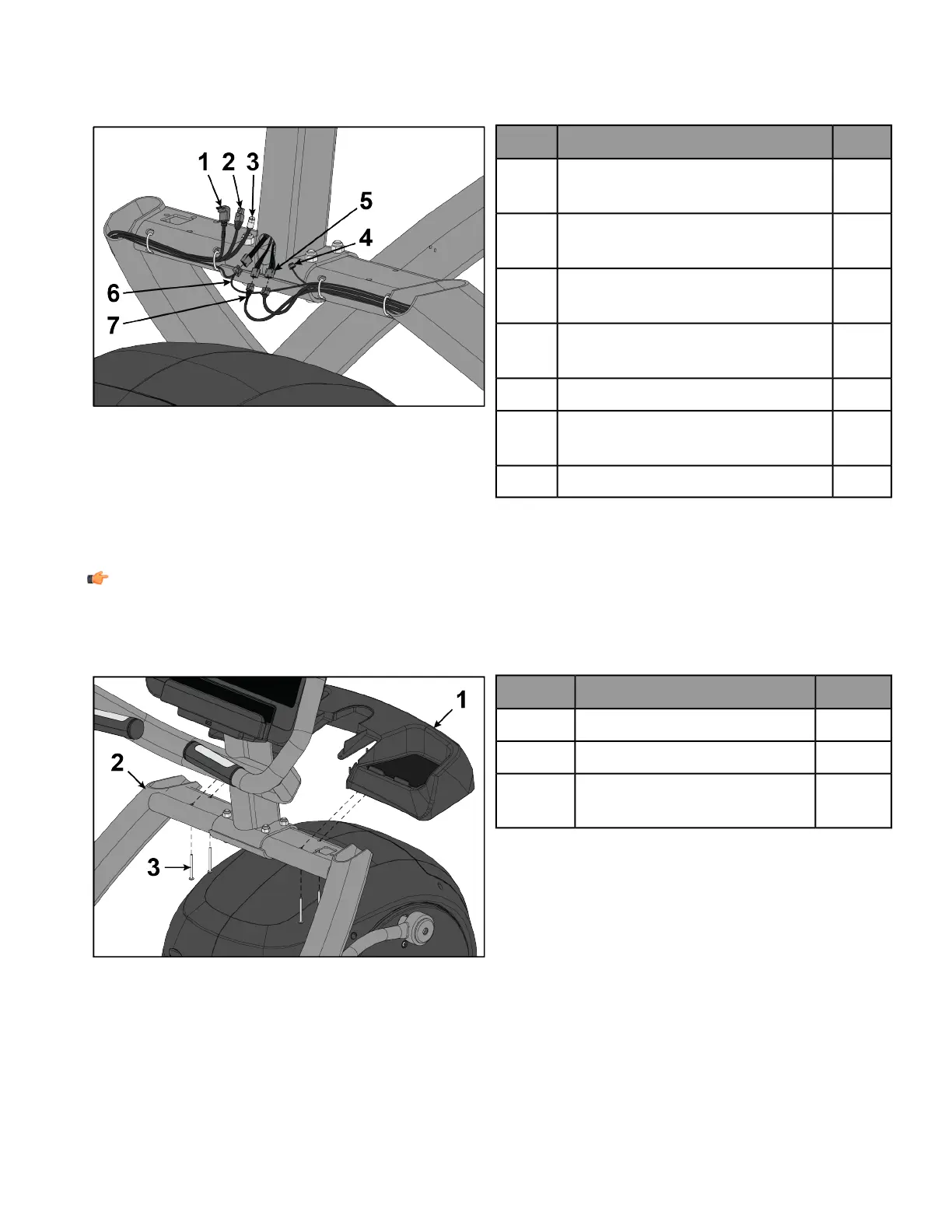

Install Console Cables to Base (Advanced Cabling)
This procedure applies to the Advanced Cabling option.
1. Plug upper display cable into lower display cable.
QtyDescriptionItem
1
Cable, HDMI
(previously routed to console)
1
1
Cable, Ethernet
(previously routed to console)
2
1
Cable, Coax
(previously routed to console)
3
1
Cable, IR
(previously routed to console)
4
1Cable, Console to Base Power5
1
Cable, Heart Rate and Keypad
Switches
6
1Cable, Base Signal7
2. Plug upper heart rate cable into lower heart rate cable.
3. Plug console power cable connectors into each other.
NOTE: Console power cables must be connected last.
Install Accessory Tray Base
Install screws securing accessory tray base to frame using a Phillips screwdriver.
QtyDescriptionItem
1Accessory Tray Base1
1Frame2
4
Screw, Pan Head Phillips, Tap
10-12 x 2"
3
Install Accessory Tray Top
Install screws securing accessory tray top to accessory tray base using a stubby Phillips screwdriver.
Page 21 of 47
