7Cyclone Canopy Installation - English

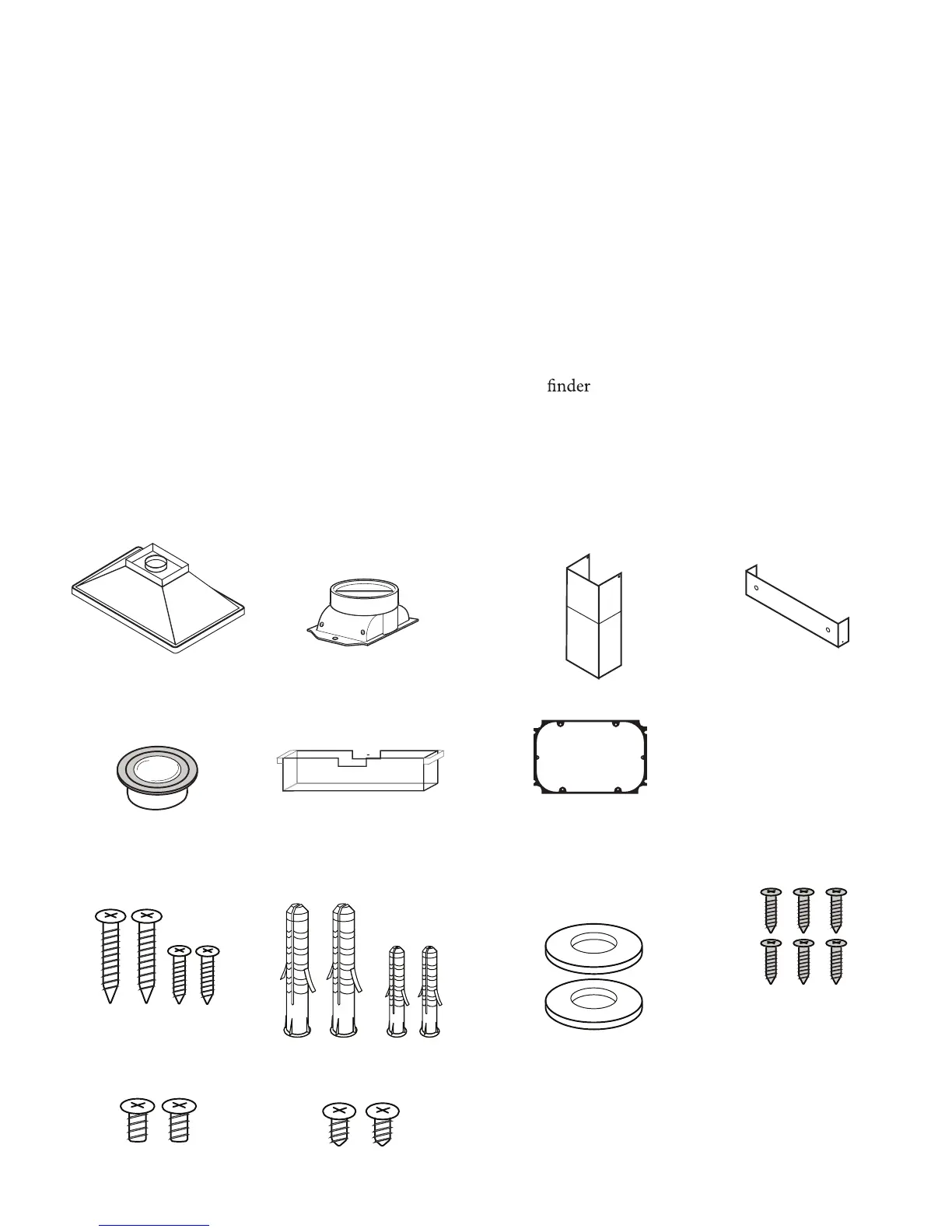

WALL MOUNT INSTALLATION - PARTS SUPPLIED
1 × Hood
1 × Chimney Flues
(Top and Bottom)
1 × Round Adapter
(May be Pre-Installed)
1 × Upper Mounting Bracket
HARDWARE PACKAGE
4 × Mounting Screws
(Long and Medium, 2 each)
4 × Drywall Anchors
(Large and Small, 2 each)
2 × Washers
1 × Oil Cup
6 × Damper Screws
2 × Top Chimney Screws SC500, SC711, SC715 ONLY:
2 × Bottom Chimney Screws
WALL MOUNT INSTALLATION - TOOLS AND MATERIALS REQUIRED
• Electrical drill or ratchet driver
• ½” drill bit for drilling pilot holes
• 1 ¼” drill bit for drilling electrical wiring acess
hole (if applicable)
• Phillips screwdriver #2 or driver bit
• Wire stripper or cutter
• Tape measure
• Aluminum foil tape and/or duct tape
• Electrical supplies for wiring (i.e. marrets,
electrical tape)
• Hammer
• Jigsaw or saber saw
• Drywall stud (if applicable)
• Step latter
• Stud
• Level
1 × Plastic Damper Cover
PRE-INSTALLED
2 or 4 × G4 Type Lights
(12V, 20W)
PLEASE REFER TO PAGES 11-37 FOR YOUR MODEL’S SPECIFICATIONS
