AspectFT-Matrix MAX Area Controller Installation Guide (1/05/2015) 1-5
1.3 HARDWARE LAYOUT
Below is an illustration of the hardware layout of the product. The device includes connection ports for
Main Power, EIA-485 network connectivity and Ethernet connectivity. Depending on the model of Matrix
MAX Area Controller you have purchased, your application may involve using one of the or both EIA-485
network ports.

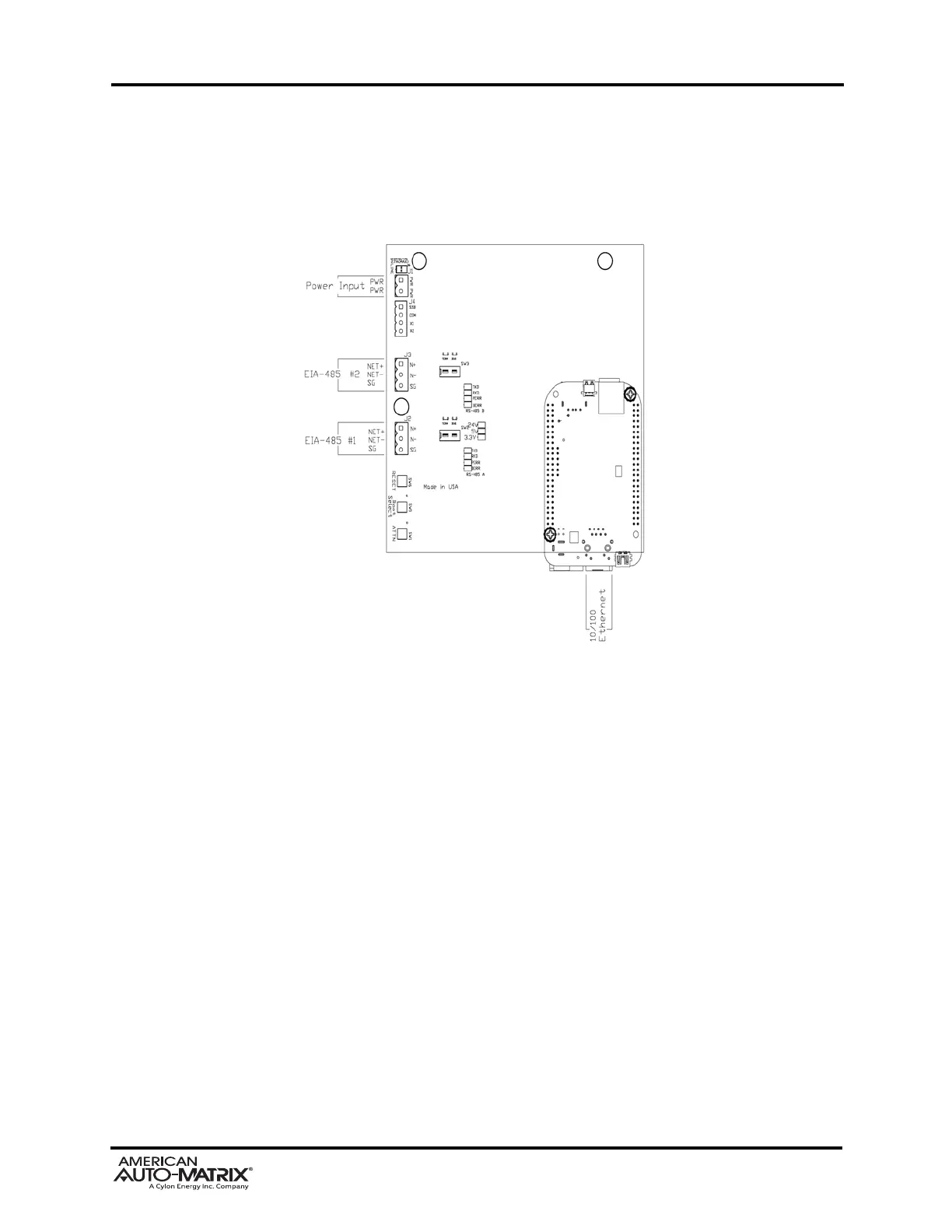

Figure 1-4 - AspectFT-Matrix MAX Area Controller Board Layout

Cylon American Auto-Matrix Aspect Matrix MAX Specifications

General

Brand	Cylon
Model	American Auto-Matrix Aspect Matrix MAX
Category	Controller
Language	English
