CBX System
TECHNICAL DATASHEET & INSTALLATION GUIDE
OPERATION
Inputs and Outputs ............................................................................................... 12
Auxiliary Power outputs ....................................................................................... 13
Using a Keypad with the CBX ............................................................................... 13
Output Override .................................................................................................... 14
Inputs and Outputs
The CBX-8R8(-H), FLX-8R8 and FLX-8R8-H have identical I/O capabilities – each has
a set of 8 Universal Inputs and a set of 8 UniPuts
TM
with relay.
FLX-4R4 and FLX-4R4-H have 4 Universal Inputs and 4 UniPuts
TM
with relay.
FLX-16DI has 16 Digital Inputs only.
Any of the terminals can be configured as inputs. Any of the UniPut™ terminals
can be configured as an output.
Input modes
Universal Input terminals and UniPut™ terminals can be configured as inputs in
almost identical fashion:
Measurement
Mode
Universal Input
UniPut™ as Input:
Digital
Input
Resistance
Resistance measurement
Range: 0 ... 450 kΩ
Accuracy: ±0.5% of measured resistance
-
Temperature measurement
Range: -40 °C ... +110 °C
Accuracy: 10k NTC sensors (e.g. 10k Type 2 (10K3A1) or
10k Type 3 (10K4A1): ±0.3 °C, -40 to 90 °C (-40°F
to 194°F); ±0.4 °C > 90 °C (194°F)
-
Digital Volt-Free contact, 2 mA contact-wetting current
Pulse counting (volt-free)
up to 20 Hz, 25 ms – 25 ms
-
-
24 V AC Detect
-
Voltage
Analog Input
Range: 0 ... 10 V
@ 130 kΩ
Accuracy: ±0.5% full scale
[50mV]
Analog Input
Range: 0 ... 10 V
@ 40 kΩ
Accuracy: ±0.5% full scale
[50mV]
-
Pulse counting (0 … 10 V) up to 20 Hz, 25 ms – 25 ms -
Current
Current input
Range: 0 ... 20 mA
@ 390 Ω
Accuracy: ±0.5% full scale
[100μA]
Current input
Range: 0 ... 20 mA
@ 390 Ω
Note:
Current Input
requires user-
supplied
external 390 Ω resistance.
Accuracy: depends on
user supplied
external resistor
-
Note: Inputs use on-board 16-bit analog to digital convertor.
Note: All inputs and outputs are protected against short circuit, as well as over-
voltage up to 24 V AC.
Hardware point numbers for these inputs in the CBX-8R8(-H)'s strategy:
CBX
1
…
8
9
…
16
FLX address 1
101
…
108
109
…
116
FLX address 2
201
…
208
209
…
216
FLX address 3
301 … 308 309 …316
Resistance Input mode (Passive Input)
Passive Inputs are all those devices that vary in resistance, including switch
contacts. These all require a current supplied by the CBX-8R8(-H) terminal so that
this resistance can be measured.
The passive sensor types supported by the CBX-8R8(-H) are:
• Pre-programmed Passive Temperature Sensors.
• Potentiometer (normally used as a 0 to 10 KΩ or a 1 KΩ to 11 KΩ variable
resistor to give a 0 to 100 % output).
• Volt-Free Digital Input (the controller strategy measures the contact resistance
and gives a 0 or 1 output).
• Straightforward Resistance measurement. This can be used with the Make
Linear block to give a temperature output for temperature sensors that are not
factory pre-programmed into the CBX-8R8(-H).
In CXpro
HD
simply select ‘ Resistance ’ sensor type in the Point Module and select
Pulsed in the Advanced parameters (the Pulsed option increases accuracy by
eliminating any self-heating in the passive temperature sensor, while the
Continuous option can trade absolute accuracy for speed).

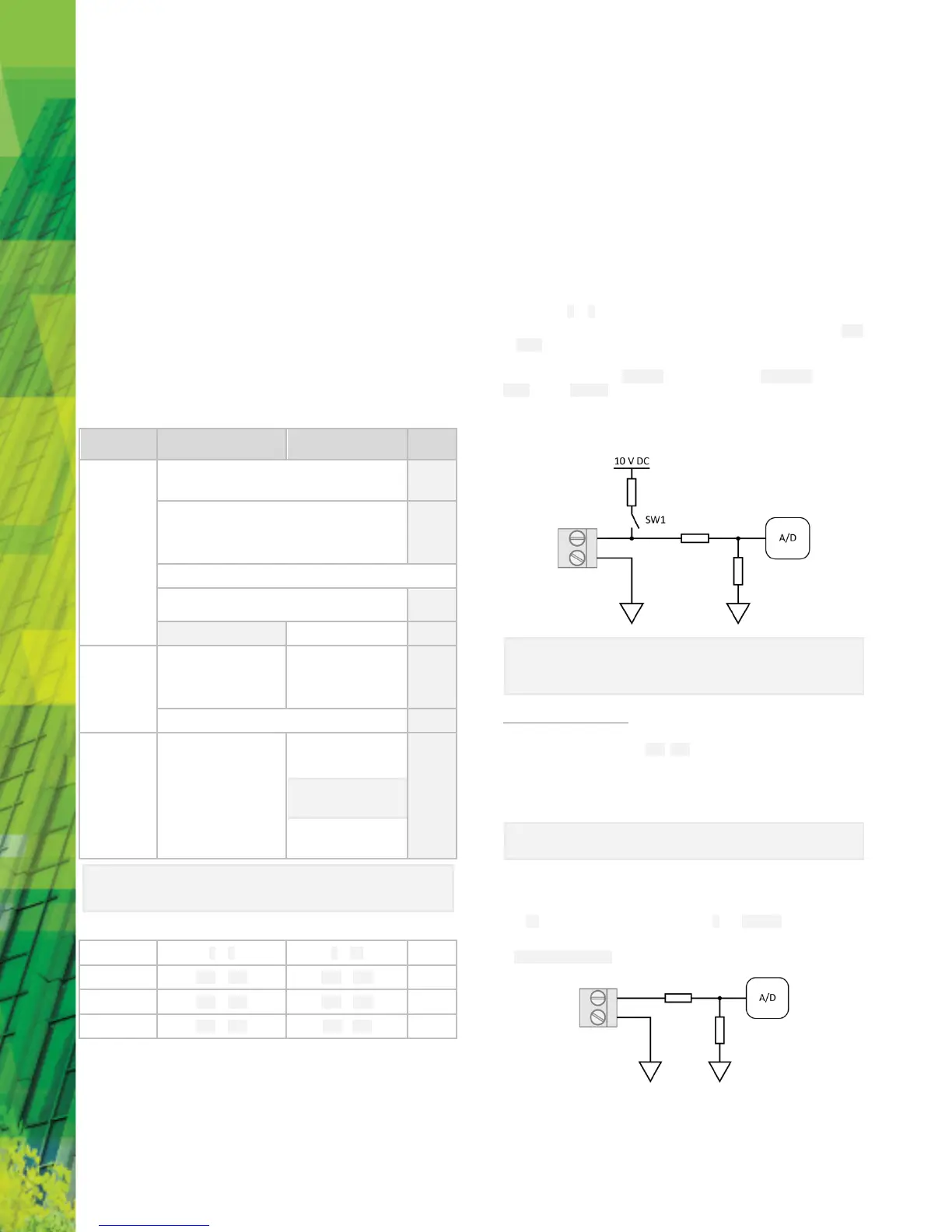

In Passive Input Mode the Uniputs™ and Universal Inputs configure like this:
Note: The reference voltage can be pulsed or continuous, using the solid state
switch.
A pulsed reference gives optimum accuracy by eliminating self-heating in
the sensor, and this is the default setting.
UniPut
TM
24 V AC Detection
If 24 V AC is connected to a Uniput™ terminal, then the 24 V AC Detect circuit will
detect this and will open switch SW1. SW1 stays open for the duration of the 24 V
AC state. When 24 V AC is removed from the Uniput™ terminal then the short
circuit or open circuit states can again be detected.
Voltage input mode (Active Input)
Note: Input Impedance for Universal Input terminals is 130 kΩ.
Input Impedance for Uniput™ terminals is 40 kΩ.
The 0 … 10 V input is used for Active analog and binary measurements. ‘Active’
means that there is no current supplied by the CBX-8R8(-H) for the sensor, as the
signal is generated completely by the Sensor.
The ‘mV’ sensor setting gives a value between 0 and 10,000, which represents
voltage in mV.
In 0 ... 10V Input Mode, the Uniputs™ configure like this:
