D-Link DAP-1120 User Manual

14D-Link DAP-1120 User Manual
Section 3 - Web-based Conguration

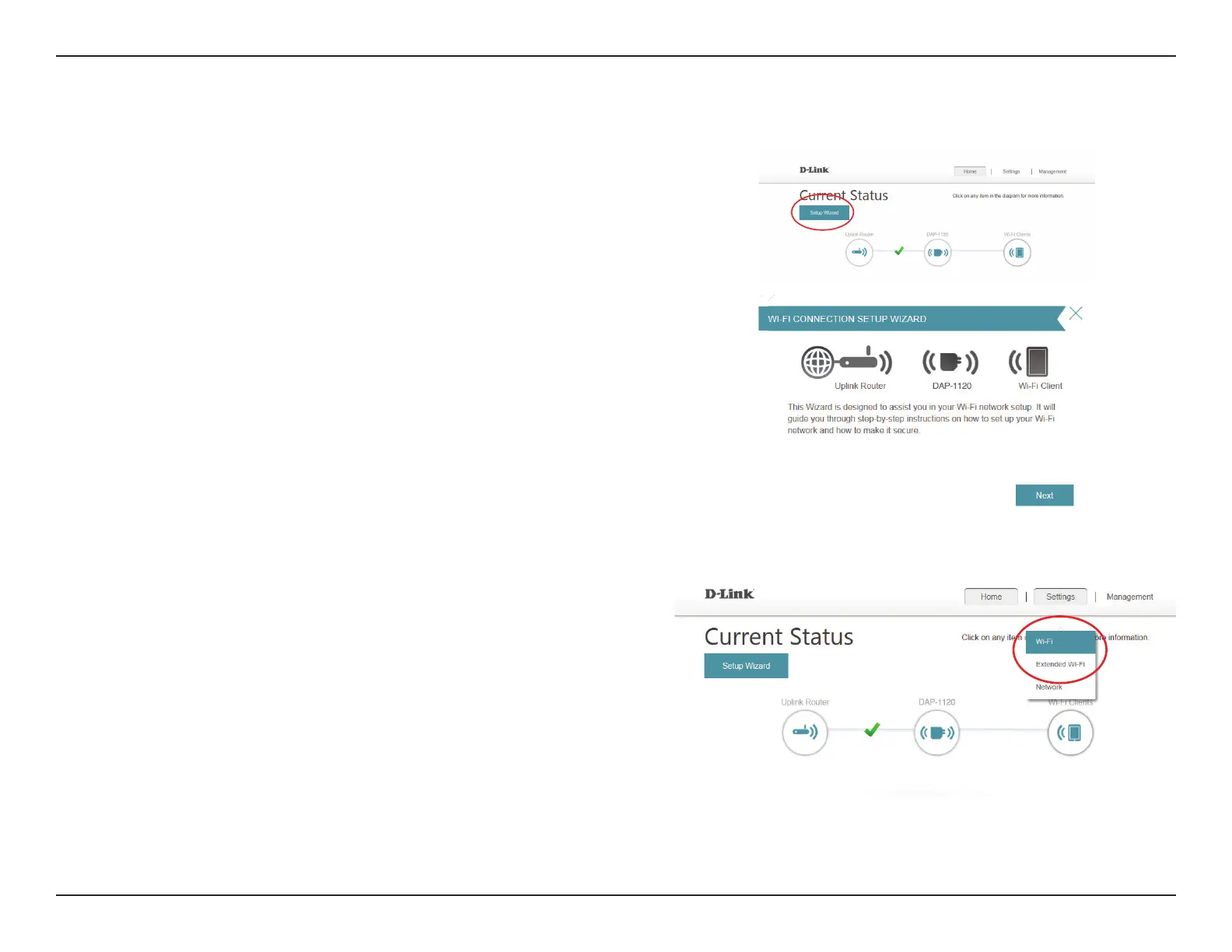

Setup Wizard
If you wish to congure your extender to connect to the Internet
using the setup wizard, click the Setup Wizard button.
This wizard is designed to guide you through a step-by-step
process to congure your new Wireless Range Extender N300 to
extend your wireless network and connect to the Internet.
Click Next to continue.
If you already have a Wi-Fi network set up and you want to
congure your Wi-Fi network settings manually, go to Settings at
the top of your browser window and select Wi-Fi from the drop-
down menu (refer to “Wi-Fi Settings” on page 22) to set up the
connection between your DAP-1120 and the uplink router. To set
up the extended Wi-Fi network, select Extended Wi-Fi (refer to
”Extended Wi-Fi Settings” on page 23).
