DAP-1155 Wireless N 150 Access Point & Router
User Manual
Configuring Device (Access Point Mode)
Telnet
On the System / Telnet page, you can enable or disable access to the device settings via TELNET
from your LAN. By default, access is enabled.

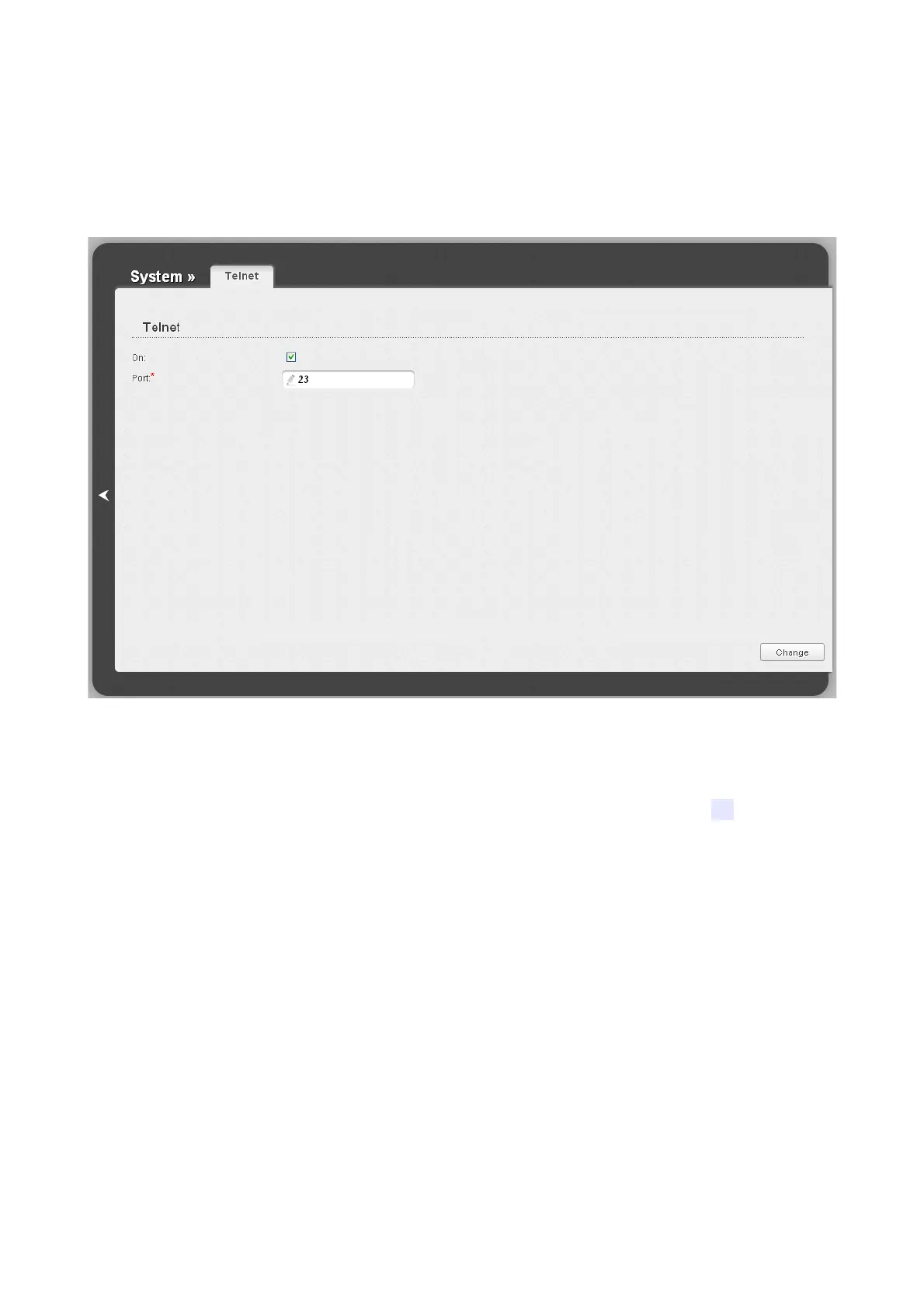

Figure 63. The System / Telnet page.
To disable access via TELNET, deselect the On checkbox and click the Change button.
To enable access via TELNET again, select the On checkbox. In the Port field, enter the number of
the access point's port through which access will be allowed (by default, the port 23 is specified).
Then click the Change button.
Page 86 of 215
