DAP-1610 Quick Installation Guide

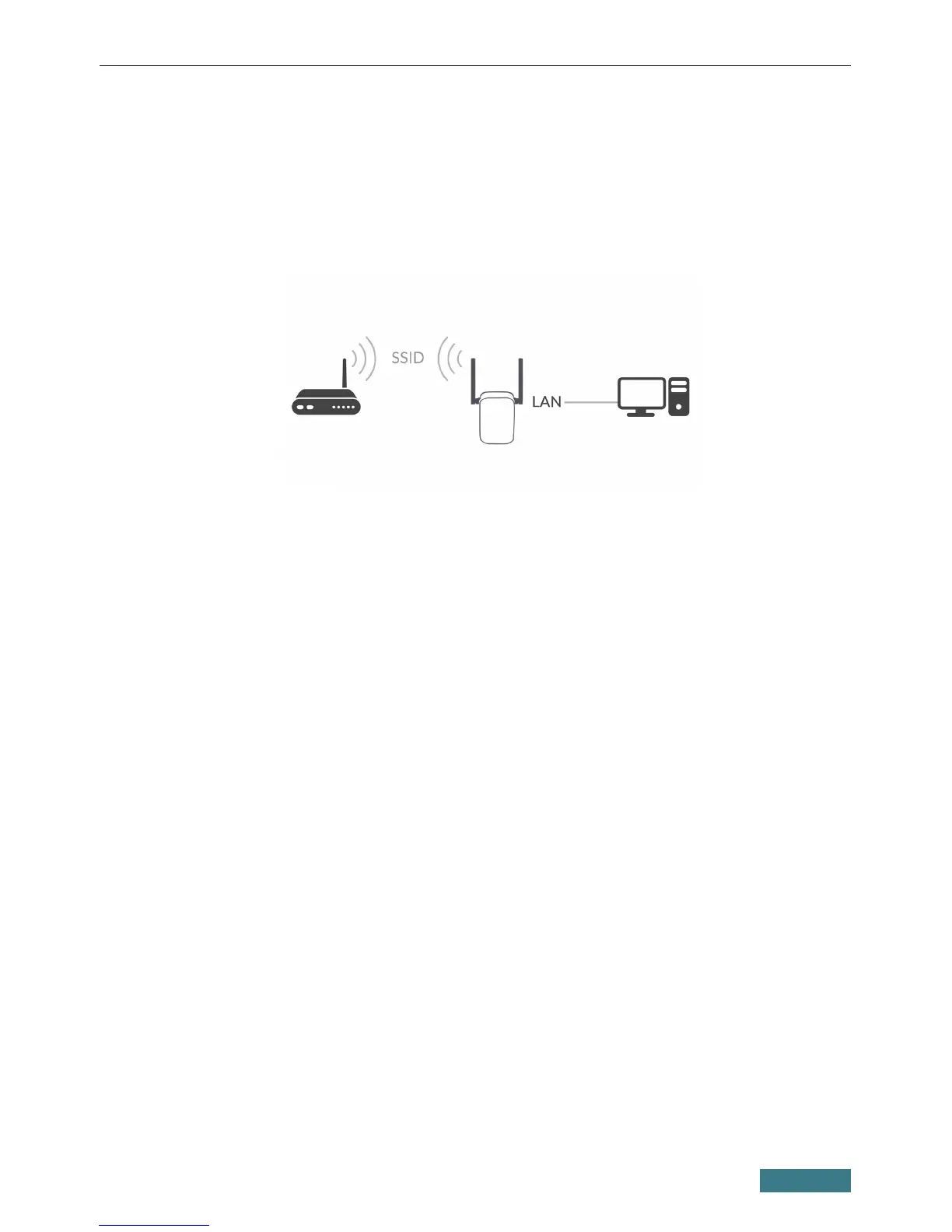

In order to let a wired PC connected to your device access the network of a
wireless router, on the Device mode page, from the Connection method
list, select the Wi-Fi value. Then from the Work mode list select the Client
value. In this mode you can change the LAN IP address, connect your device
to another access point and set your own password for access to the web-based
interface of the device.
When the operation mode is selected, click the NEXT button.
15

D-Link DAP-1610 Specifications

General

Type	Network transmitter & receiver
WPS push button	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	WPA, WPA2
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab
Certification	FCC, IC, CE2. UL
Product color	White
LED indicators	Signal strength, Status, WPS
Ethernet LAN (RJ-45) ports	1
Antenna type	External
Antennas quantity	2
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	50.7 mm
Width	97.9 mm
Height	48.7 mm
Weight	120 g
