DAP-1610 Quick Installation Guide
Conguring Wireless Network
This configuration step is available for the Access point and Repeater
modes.

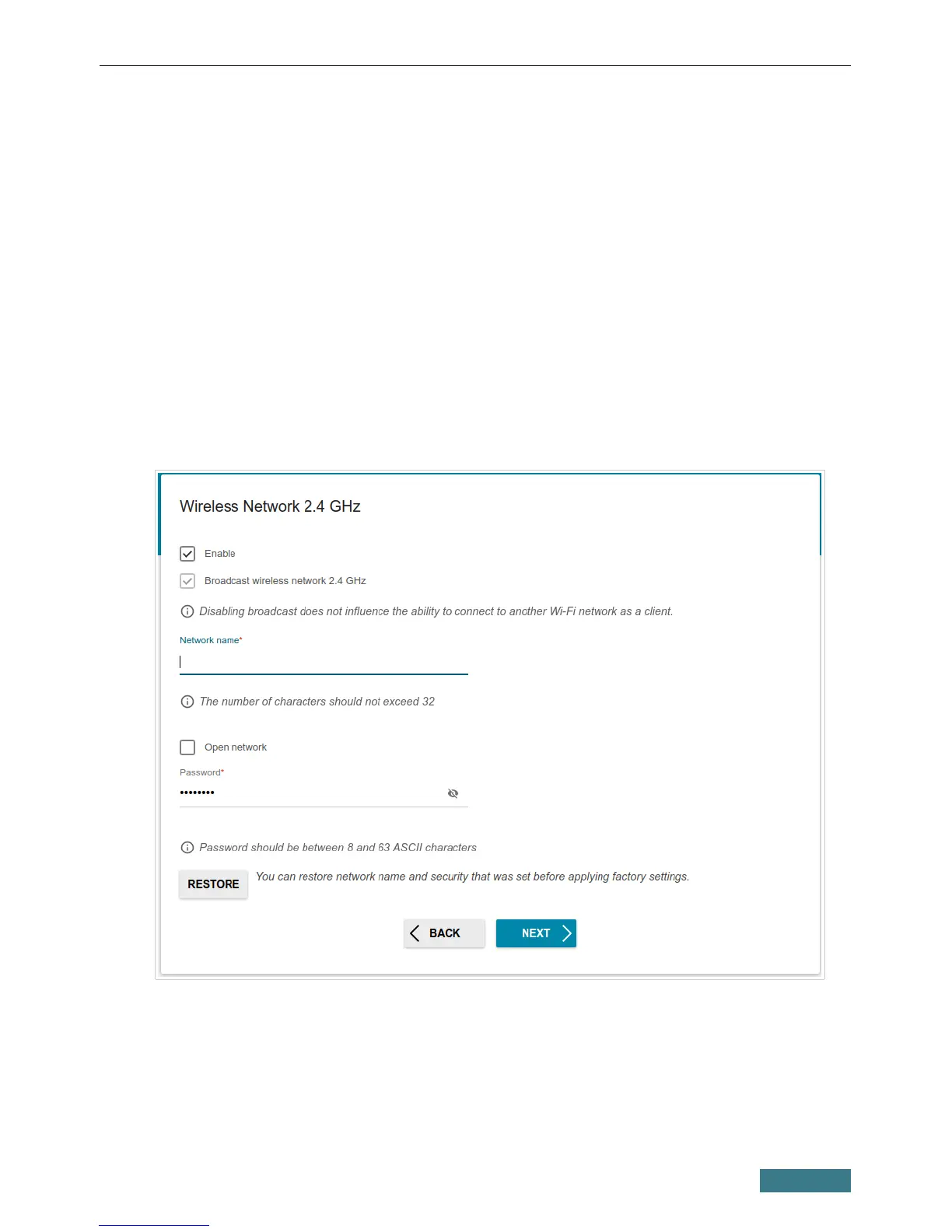

1. On the Wireless Network 2.4 GHz page, in the Network name field,
specify your own name for the wireless network in the 2.4GHz band or
leave the value suggested by the extender.
2. In the Password field, specify your own password for access to the
wireless network or leave the value suggested by the extender (WPS PIN
of the device, see the barcode label).
3. You can restore the parameters of the wireless network specified before
resetting to factory defaults. To do this, click the RESTORE button.
4. Click the NEXT button.
5. On the Wireless Network 5 GHz page, specify needed settings for the
wireless network in the 5GHz band and click the NEXT button.
18

D-Link DAP-1610 Specifications

General

Type	Network transmitter & receiver
WPS push button	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	WPA, WPA2
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab
Certification	FCC, IC, CE2. UL
Product color	White
LED indicators	Signal strength, Status, WPS
Ethernet LAN (RJ-45) ports	1
Antenna type	External
Antennas quantity	2
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	50.7 mm
Width	97.9 mm
Height	48.7 mm
Weight	120 g
