DAP-1610 Quick Installation Guide

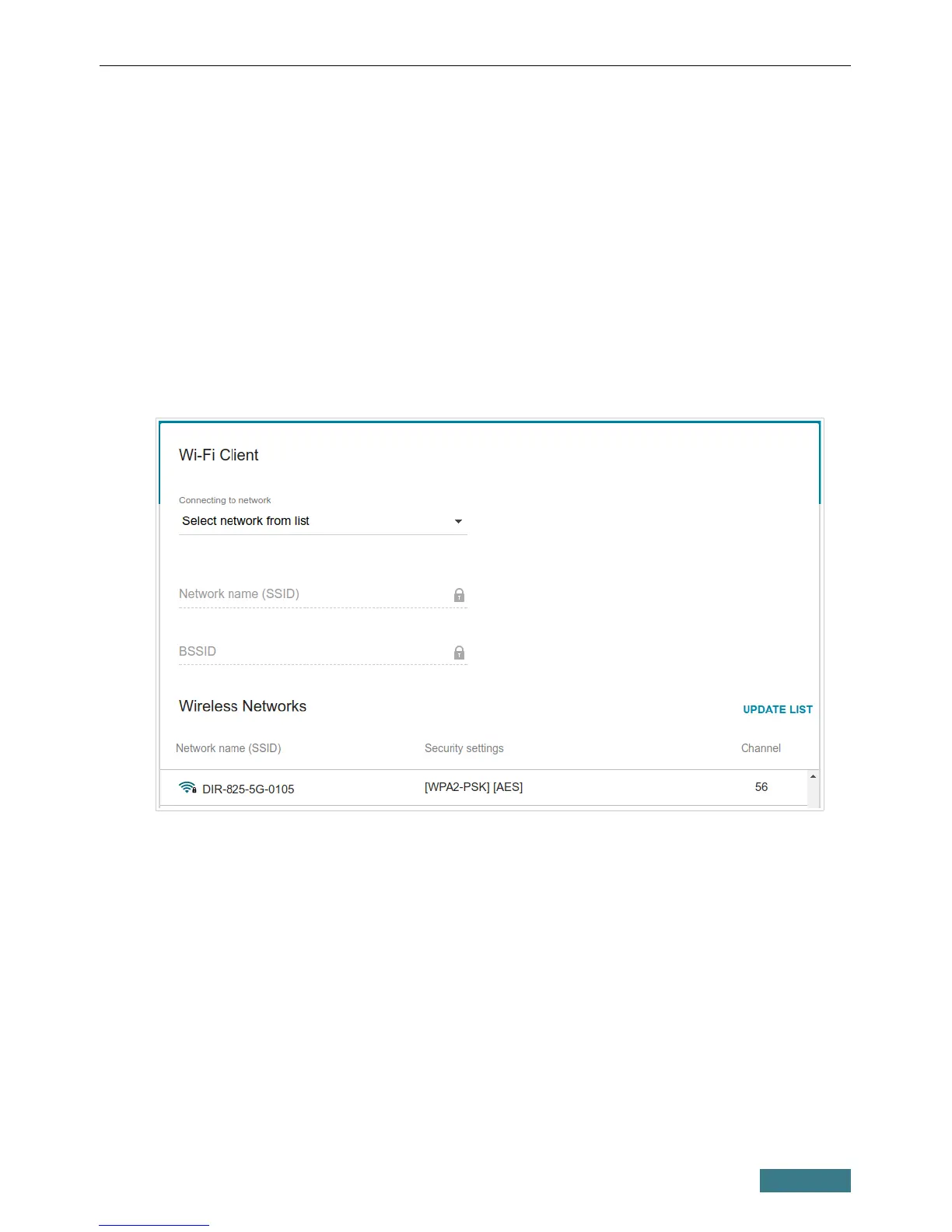

Wi-Fi Client
This configuration step is available for the Repeater and Client modes.
1. On the Wi-Fi client page, in the Wireless Networks section, select the
network to which you want to connect. When you select a network, the
Network name (SSID) and BSSID fields are filled in automatically.
If you cannot find the needed network in the list, click the UPDATE LIST
button.
2. If a password is needed to connect to the selected network, fill in the
relevant field.
If you connect to a hidden network, from the Connecting to network list
select the Connect to hidden network value. Then select the band where
the hidden network operates from the Frequency band list and enter the
network name in the Network name (SSID) field. Then select a needed
value from the Network authentication list and then, if needed, enter the
password in the relevant field.
3. Click the NEXT button.
17

D-Link DAP-1610 Specifications

General

Type	Network transmitter & receiver
WPS push button	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	WPA, WPA2
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab
Certification	FCC, IC, CE2. UL
Product color	White
LED indicators	Signal strength, Status, WPS
Ethernet LAN (RJ-45) ports	1
Antenna type	External
Antennas quantity	2
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	50.7 mm
Width	97.9 mm
Height	48.7 mm
Weight	120 g
