Section 4: Conguration

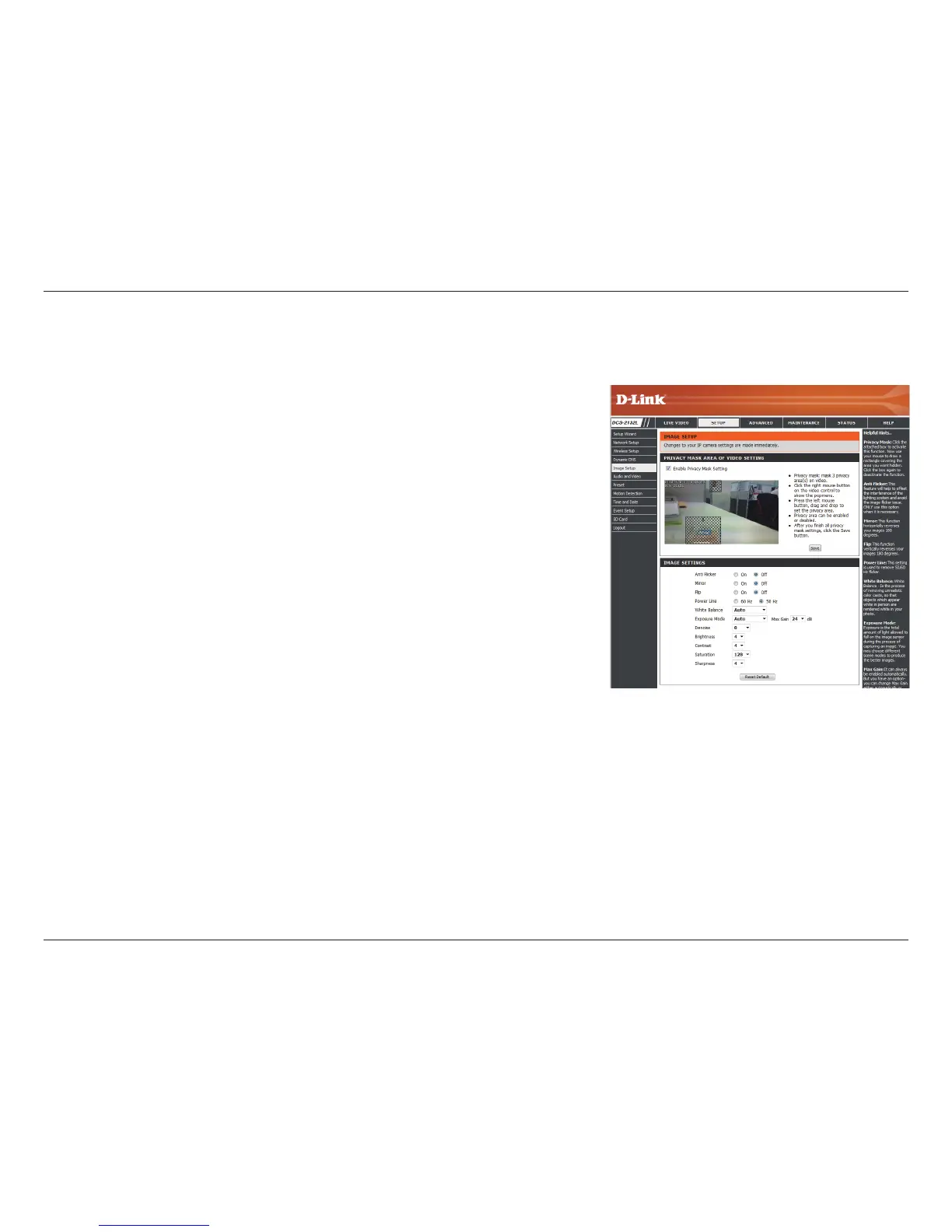

Image Setup
In this section, you may congure the video image settings for your camera. A preview of the image will be shown in Live Video.
Enable Privacy Mask:
Anti Flicker:
Mirror:
Flip:
Power Line:
White Balance:
The Privacy Mask setting allows you to specify up to 3
rectangular areas on the camera's image to be blocked/
excluded from recordings and snapshots.
You may click and drag the mouse cursor over the
camera image to draw a mask area. Right clicking on the
camera image brings up the following menu options:
Disable All: Disables all mask areas
Enable All: Enables all mask areas
Reset All: Clears all mask areas.
If the video ickers, try enabling this setting.
This will mirror the image horizontally.
This will ip the image vertically. When turning Flip on,
you may want to consider turning Mirror on as well.
Select the frequency used by your power lines to avoid
interference or distortion.
Use the drop-down box to change white balance settings
to help balance colors for dierent environments. You
can choose from Auto, Outdoor, Indoor, Fluorescent,
and Push Hold.

D-Link DCS-2132L Specifications

General

Maximum resolution	1280 x 800 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	176 x 144, 320 x 240, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Minimum illumination	0 lx
Field of view (FOV) angle	66 °
Sensor type	CMOS
Optical sensor size	1/4 \
Digital zoom	10 x
Optical zoom	- x
Focus adjustment	2.0
Fixed focal length	3.45 mm
Active tampering alarm	No
Video motion detection	Yes
Compatible memory cards	microSD (TransFlash), microSDHC
LED type	IR
Night vision distance	5 m
Type	IP security camera
Certification	CE, CE LVD, FCC, C-Tick
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	Box
Product color	White
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Wi-Fi standards	Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Supported network protocols	HTTP, FTP, TCP/IP, SMTP, DHCP, PPPoE, DDNS, UPnP, RTP / RTSP/ RTCP, QoS, CoS, IGMP
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
AC input frequency	50 - 60 Hz
Power consumption (typical)	3.65 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1329 mm
Pallet height (sea)	1926 mm
Pallet gross weight (air)	255856 g
Pallet gross weight (sea)	372784 g
Quantity per pallet (air)	420 pc(s)
Quantity per pallet (sea)	630 pc(s)
Shipping (inner) case width	324 mm
Shipping (inner) case height	199 mm
Shipping (inner) case length	538 mm
Shipping (inner) case weight	5568 g
Shipping (inner) case net weight	4818 g
Number of cartons per pallet (air)	42 pc(s)
Number of cartons per pallet (sea)	63 pc(s)
Quantity per shipping (inner) case	10 pc(s)

Weight and Dimensions

Depth	58 mm
Width	89 mm
Height	127 mm
Weight	116 g
Package depth	160 mm
Package width	152 mm
Package height	102 mm
Package weight	481.8 g
