Section 4: Conguration

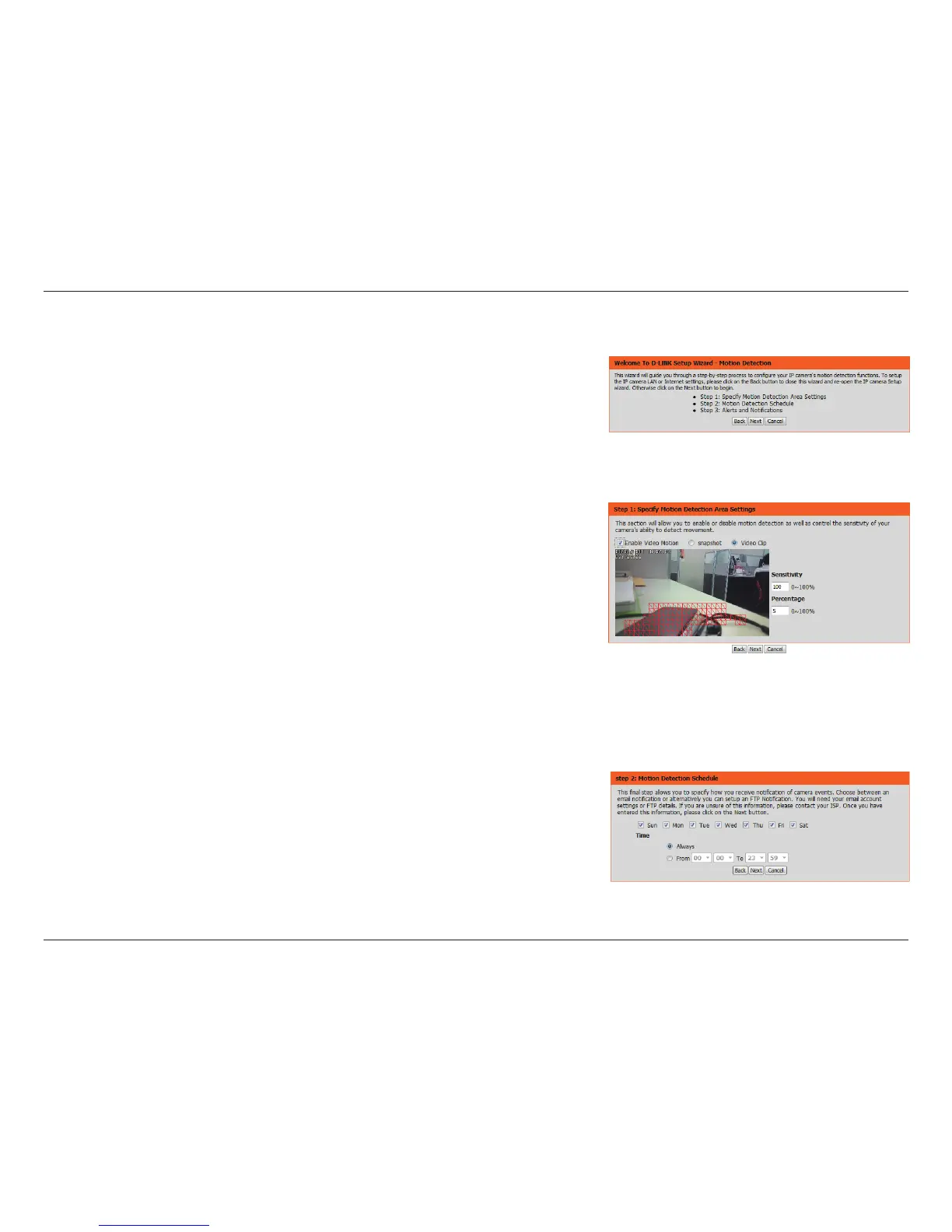

This wizard will guide you through a step-by-step process to congure your camera's
motion detection functions.
Click Next to continue.
Step 1
This step will allow you to enable or disable motion detection, specify the detection sensitivity,
and adjust the camera’s ability to detect movement.
You may specify whether the camera should capture a snapshot or a video clip when motion
is detected.
Please see the Motion Detection section on "Motion Detection" on page 55for information
about how to congure motion detection.
Step 2
This step allows you to enable motion detection based on a customized schedule. Specify the
day and hours. You may also choose to always record whenever motion is detected.
Motion Detection Setup Wizard

D-Link DCS-2132L Specifications

General

Maximum resolution	1280 x 800 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	176 x 144, 320 x 240, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Minimum illumination	0 lx
Field of view (FOV) angle	66 °
Sensor type	CMOS
Optical sensor size	1/4 \
Digital zoom	10 x
Optical zoom	- x
Focus adjustment	2.0
Fixed focal length	3.45 mm
Active tampering alarm	No
Video motion detection	Yes
Compatible memory cards	microSD (TransFlash), microSDHC
LED type	IR
Night vision distance	5 m
Type	IP security camera
Certification	CE, CE LVD, FCC, C-Tick
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	Box
Product color	White
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Wi-Fi standards	Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Supported network protocols	HTTP, FTP, TCP/IP, SMTP, DHCP, PPPoE, DDNS, UPnP, RTP / RTSP/ RTCP, QoS, CoS, IGMP
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
AC input frequency	50 - 60 Hz
Power consumption (typical)	3.65 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1329 mm
Pallet height (sea)	1926 mm
Pallet gross weight (air)	255856 g
Pallet gross weight (sea)	372784 g
Quantity per pallet (air)	420 pc(s)
Quantity per pallet (sea)	630 pc(s)
Shipping (inner) case width	324 mm
Shipping (inner) case height	199 mm
Shipping (inner) case length	538 mm
Shipping (inner) case weight	5568 g
Shipping (inner) case net weight	4818 g
Number of cartons per pallet (air)	42 pc(s)
Number of cartons per pallet (sea)	63 pc(s)
Quantity per shipping (inner) case	10 pc(s)

Weight and Dimensions

Depth	58 mm
Width	89 mm
Height	127 mm
Weight	116 g
Package depth	160 mm
Package width	152 mm
Package height	102 mm
Package weight	481.8 g
