Section 2: Installation

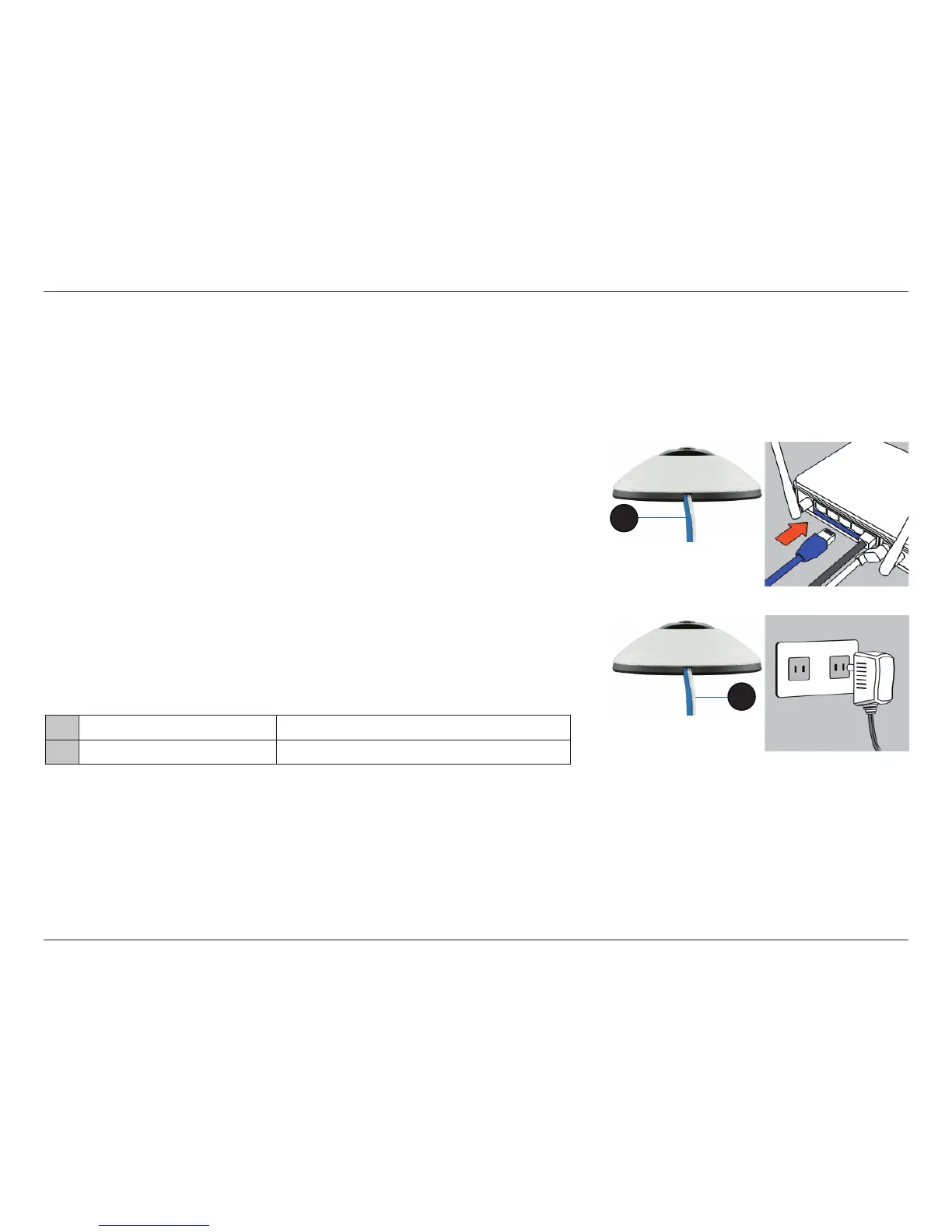

Manual Hardware Installation
If you wish to set up your camera without using the Camera Setup Wizard, please follow these steps.
Note: In order to use the mydlink features of this product, you will need to go through the Camera Setup Wizard.
Connect the Ethernet Cable
Using the pre-attached Ethernet cable connect the free end to your network.
To use a longer ethernet cable or install a coupling adaptor, or see "Internal Ports"
on page 8 for more details. for how to change the Ethernet cable.
Attach the External Power Supply
Attach the external power supply to your wall outlet or power strip.
2
1
1 Ethernet Cable
Pre attached Ethernet cable
2 Power Cable
Pre attached power cable.

D-Link DCS-6010L Specifications

General

Total megapixels	2 MP
Maximum resolution	1600 x 1200 pixels
Supported video modes	-
Video formats supported	H.264, MPEG4
Supported graphics resolutions	800 x 600 (SVGA)
Sensor type	CMOS
Optical sensor size	1/3.2 \
Optical zoom	- x
Zoom capability	Yes
Fixed focal length	1.25 mm
Minimum illumination	2 lx
Form factor	Dome
Mounting type	Ceiling
Product color	White
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
Power source type	PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	3.9 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Compatible memory cards	SD, SDHC
Cabling technology	10/100Base-T(X)
Networking features	10/100Mbps Fast Ethernet
Certification	CE, CE LVD, FCC, C-Tick
GPS (satellite)	No
Placement supported	Indoor
Connectivity technology	Wireless

Weight and Dimensions

Width	134.2 mm
Height	49.8 mm
Weight	1920 g
