7D-Link DCS-6010L User Manual
Section 1: Product Overview
Outside

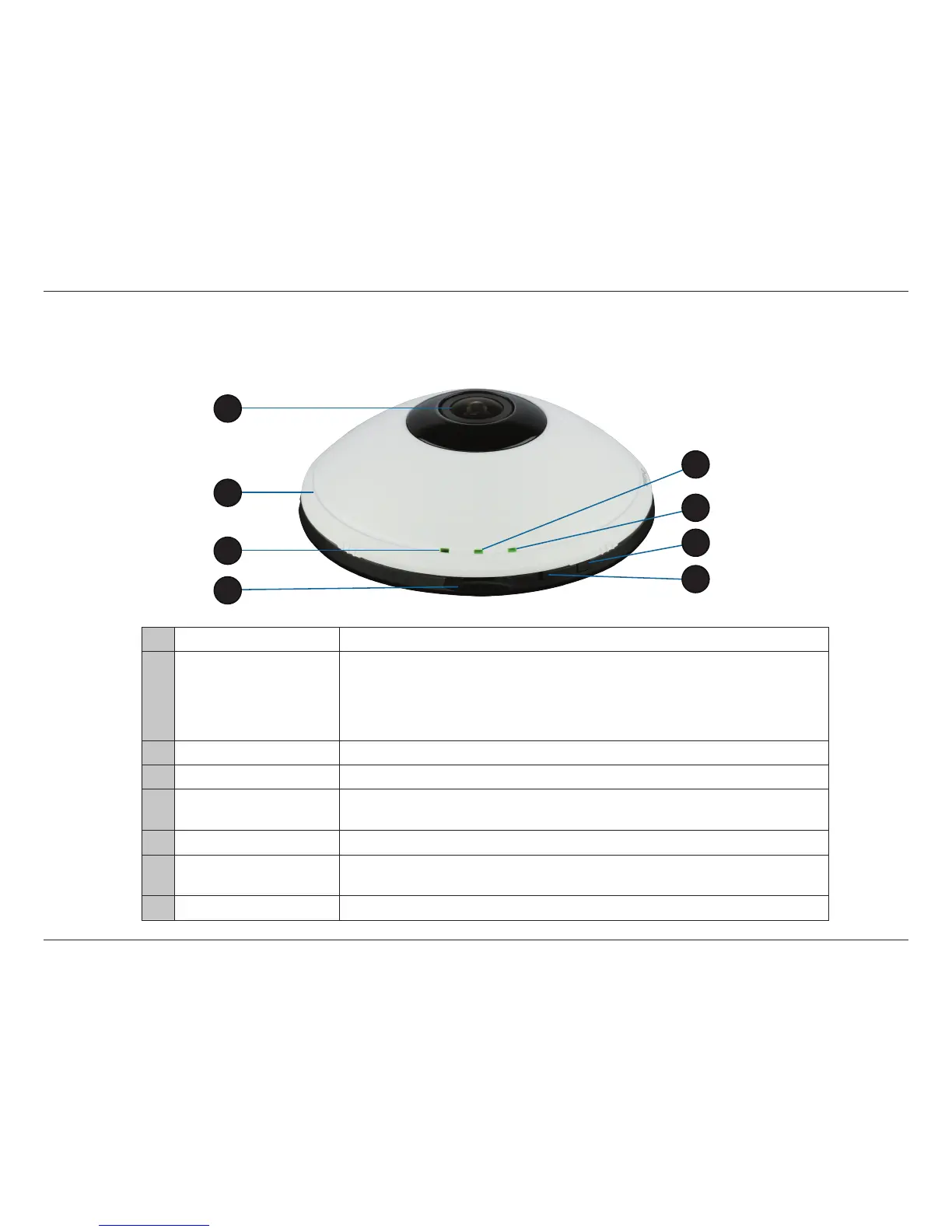

Hardware Overview
1 Camera Lens
Records video of the surrounding area
2 Camera Cover
Rotate the cover counter-clockwise to remove it and access the Ethernet port
and power connector
Caution: When removing the cover, remove it slowly to avoid disconnecting the
microphone.
3 Microphone
Records audio from the surrounding area
4 MicroSD Card Slot
Insert a MicroSD card for Local storage for storing recorded image and video
5 WPS Status LED
Indicates the WPS connection status of the camera
Indicates the camera's
current status
6 Status LED
Indicates the camera's current power and connectivity status.
7 WPS Button
Press this button, then press the WPS button for 5 seconds on your router to set up
a wireless connection automatically
8 Reset Button
Press and hold this button for 10 seconds to reset the camera
5
6
4
3
1
7
8
2
