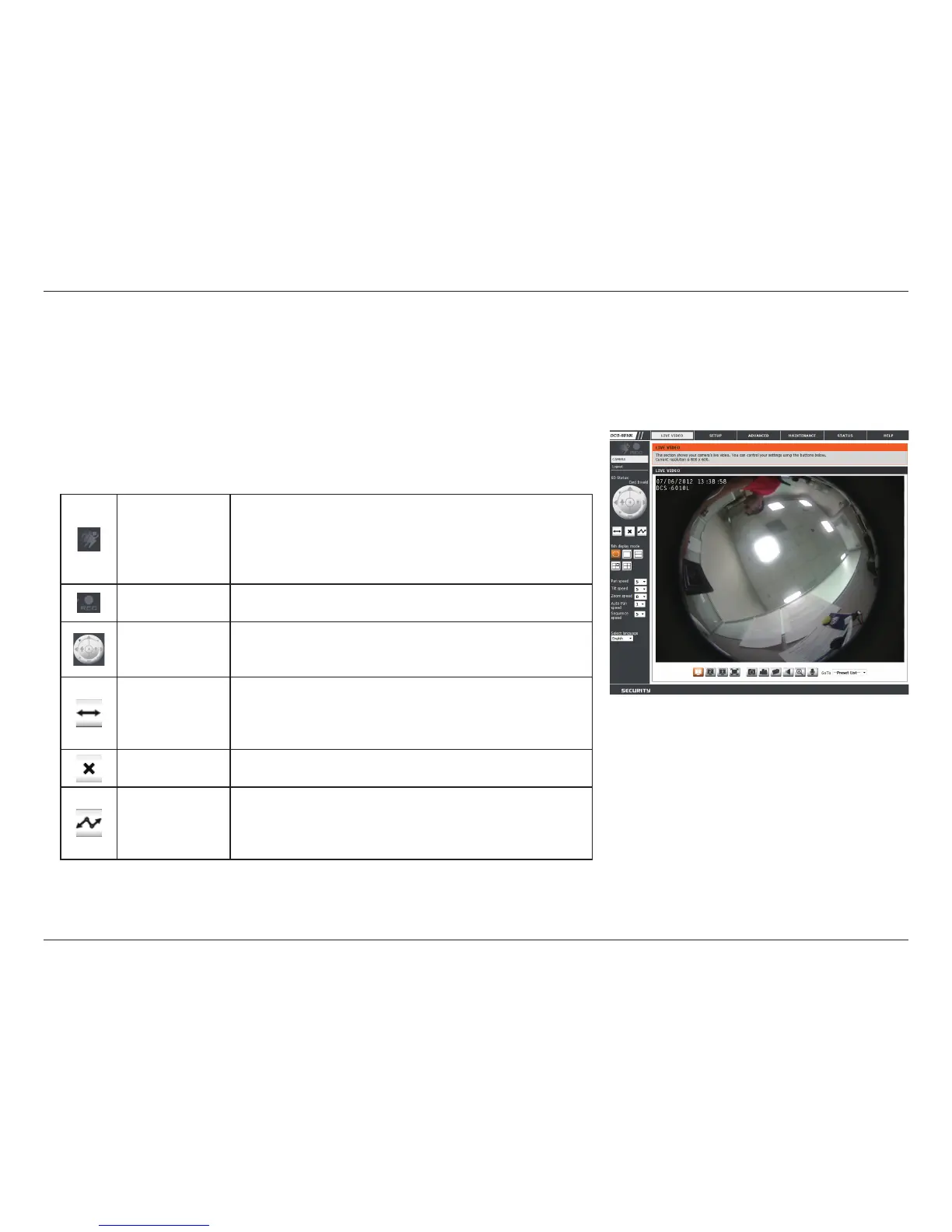

Section 4: Conguration
Live Video
This section shows your camera’s live video. You may select any of the available icons listed below to operate the camera. You may also select your
language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.
Motion Trigger
Indicator
This indicator will change color when a trigger event
occurs.
Note: The video motion feature for your camera must be
enabled.
Recording
Indicator
When a recording is in progress, this indicator will change
color.
Control Pad
This control pad can be used to electronically pan, tilt, and
zoom (ePTZ) within the camera's predened view area, if
one has been dened.
Auto Pan
Click this button to start the automated circular rotation
through a regional view (360* continuous rotation).
Note: This function does not apply in a Panoramic view
because a panoramic view already shows the full coverage.
Stop
Click this button to stop the Auto Pano and Auto Rotate
functions.
Preset Path
Once you have determined a list of preset PTZ positions, click
this button to consecutively display views of these positions.
The DCS-6010L will display these views continuously. For
more information please refer to "Preset" on page 53
This option displays the status of the SD card. If no SD card has been
inserted, this screen will display the message "Card Invalid."
SD Status:

D-Link DCS-6010L Specifications

General

Total megapixels	2 MP
Maximum resolution	1600 x 1200 pixels
Supported video modes	-
Video formats supported	H.264, MPEG4
Supported graphics resolutions	800 x 600 (SVGA)
Sensor type	CMOS
Optical sensor size	1/3.2 \
Optical zoom	- x
Zoom capability	Yes
Fixed focal length	1.25 mm
Minimum illumination	2 lx
Form factor	Dome
Mounting type	Ceiling
Product color	White
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
Power source type	PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	3.9 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Compatible memory cards	SD, SDHC
Cabling technology	10/100Base-T(X)
Networking features	10/100Mbps Fast Ethernet
Certification	CE, CE LVD, FCC, C-Tick
GPS (satellite)	No
Placement supported	Indoor
Connectivity technology	Wireless

Weight and Dimensions

Width	134.2 mm
Height	49.8 mm
Weight	1920 g
