DES-3226S Layer 2 Fast Ethernet Switch User’s Guide
80
Multicast MAC Address Forwarding
Multicast MAC addresses can be statically entered into the Switch’s MAC Address Forwarding Table. These addresses will
never age out.
To enter a Multicast MAC address into the Switch’s forwarding table, click on the Forwarding folder and then the MAC
Forwarding folder and then click on the Multicast MAC Address Settings link:

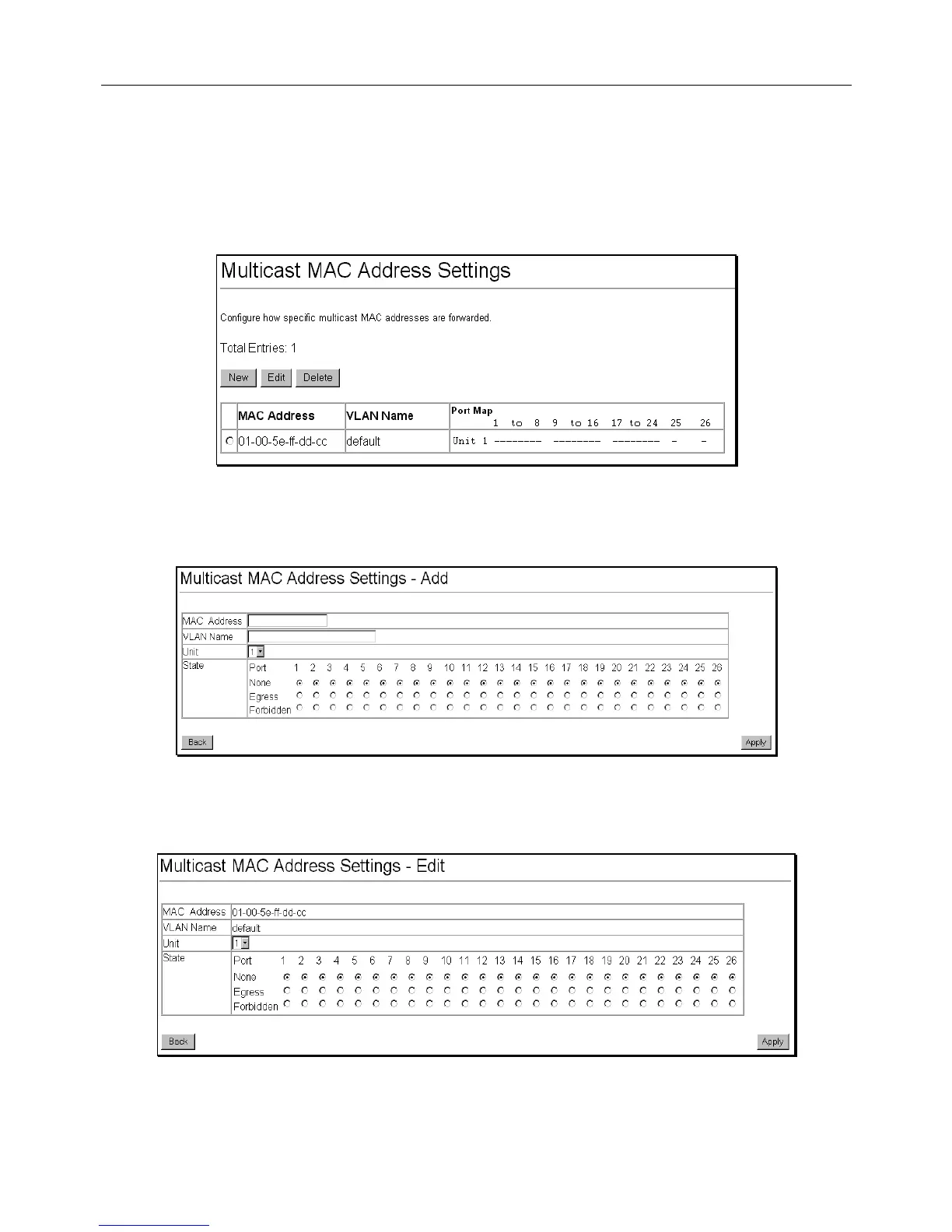

Figure 6 - 56. Multicast MAC Address Settings
To add a new multicast MAC address to the Switch’s forwarding table, click the New button:
Figure 6 - 57. Multicast MAC Address Settings − Add
To edit an existing entry to the Switch’s forwarding table, click the entry’s corresponding click-box and then click the edit
button:
Figure 6 - 58. Multicast MAC Address Settings − Edit
