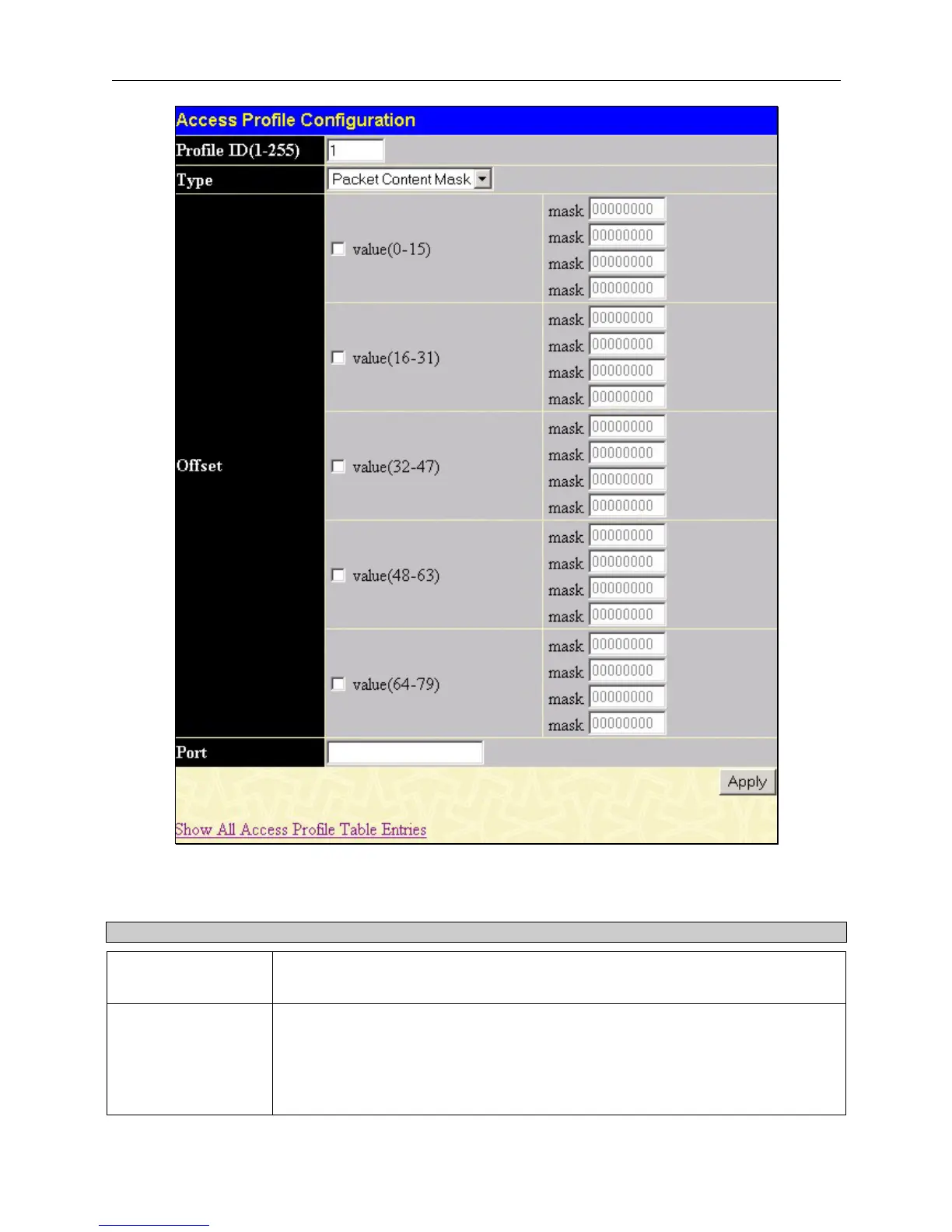

Figure 6- 55. Access Profile Configuration window (Packet Content Mask)
Parameter Description
This screen will aid the user in configuring the Switch to mask packet headers beginning with the offset value specified.
The following fields are used to configure the Packet Content Masks:
Profile ID (1-255)
Type in a unique identifier number for this profile set. This value can be set from 1 -
255.
Type
Select profile based on Ethernet (MAC Address), IP address or packet content mask.
This will change the menu according to the requirements for the type of profile.
•
•
Select Ethernet to instruct the Switch to examine the layer 2 part of each
packet header.
Select IP to instruct the Switch to examine the IP address in each frame's
