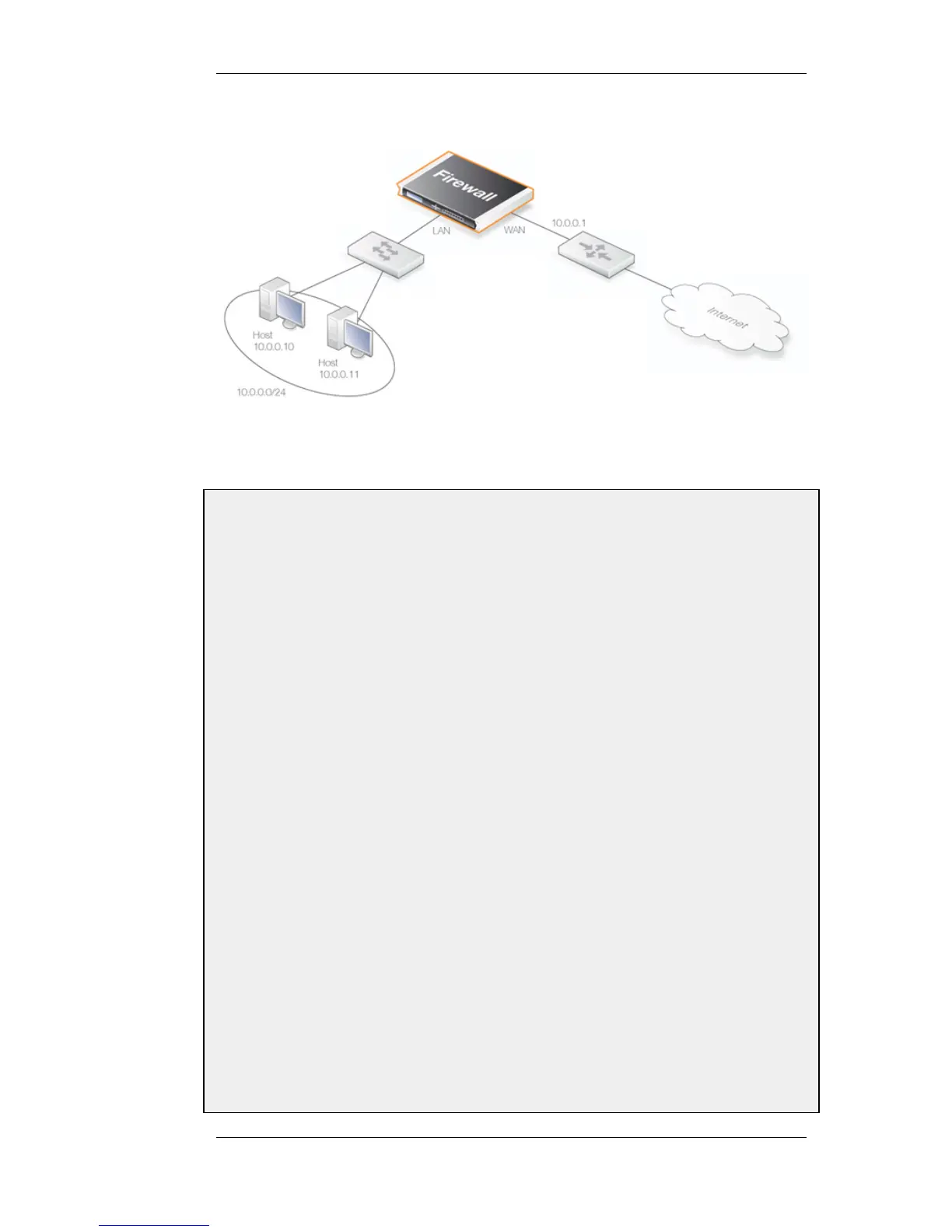

Figure 4.20. Transparent Mode Scenario 1
Example 4.19. Setting up Transparent Mode for Scenario 1
Web Interface
Configure the interfaces:
1. Go to: Interfaces > Ethernet > Edit (wan)
2. Now enter:
• IP Address: 10.0.0.1
• Network: 10.0.0.0/24
• Default Gateway: 10.0.0.1
• Transparent Mode: Enable
3. Click OK
4. Go to: Interfaces > Ethernet > Edit (lan)
5. Now enter:
• IP Address: 10.0.0.2
• Network: 10.0.0.0/24
• Transparent Mode: Enable
6. Click OK
Configure the rules:
1. Go to: Rules > IP Rules > Add > IPRule
2. Now enter:
• Name: HTTPAllow
• Action: Allow
• Service: http
