Mounting the Switch on a Wall
The DGS-108 can be mounted on a wall. Two mounting slots are provided on the bottom of the Switch for this
purpose. Make sure that the front panel is exposed in order to view the LEDs. Refer to the illustration below:
A.) Cement wall
1. Mount the nylon screw anchors into a cement wall.
2. Drive the T3 x 15L screws into the nylon screw anchors.
3. Hook the mounting holes at the back of the switch onto the screws. The wall-mount process is
complete.
B.) Wooden wall
1. Insert the T3 x 15 L screws into the wood wall.
2. Hook the mounting holes at the back of the switch onto the screws. The wall-mount process is
complete.

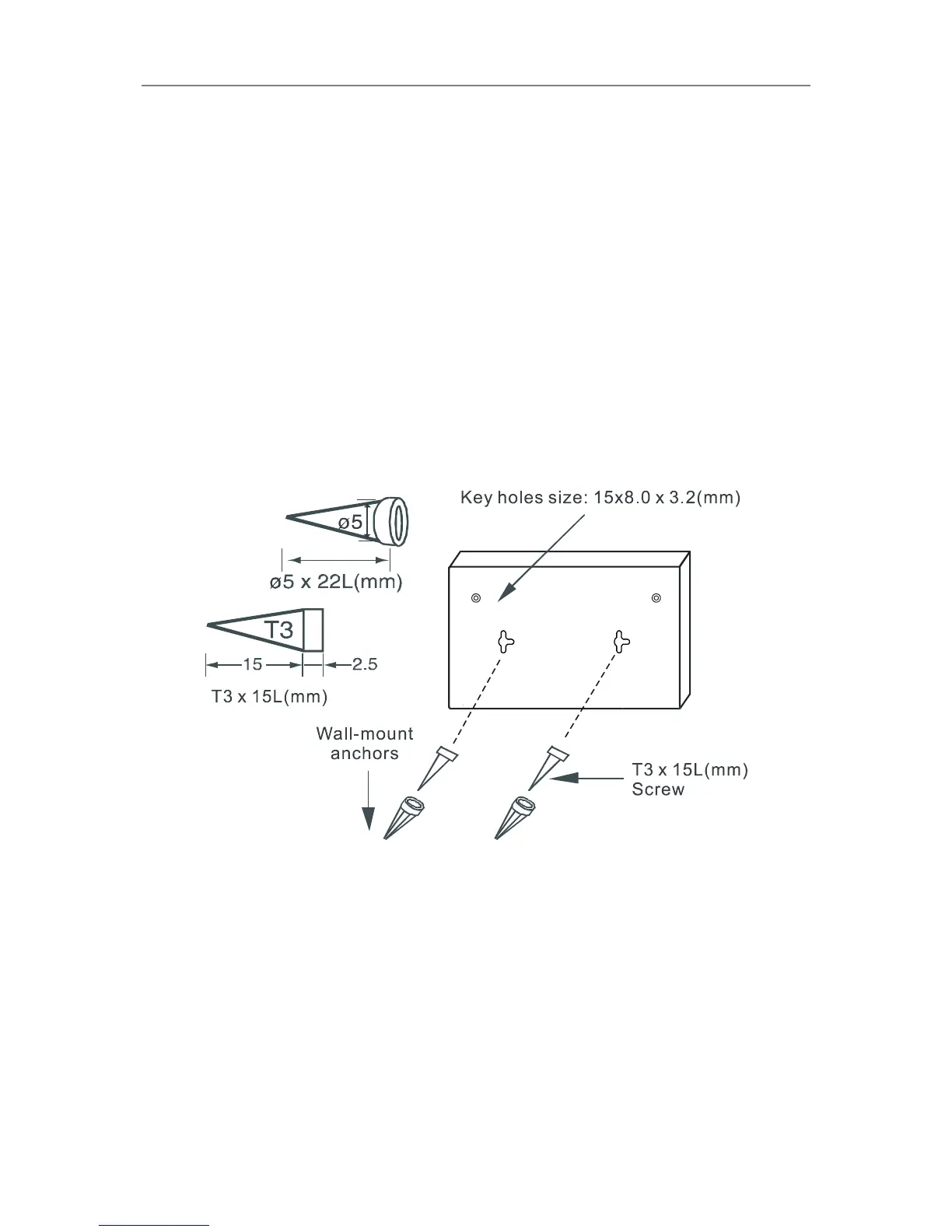

Figure 2- 1. Mounting the Switch to a Wall
