4 Web-based Switch Configuration D-Link Smart Managed Switch User Manual
32

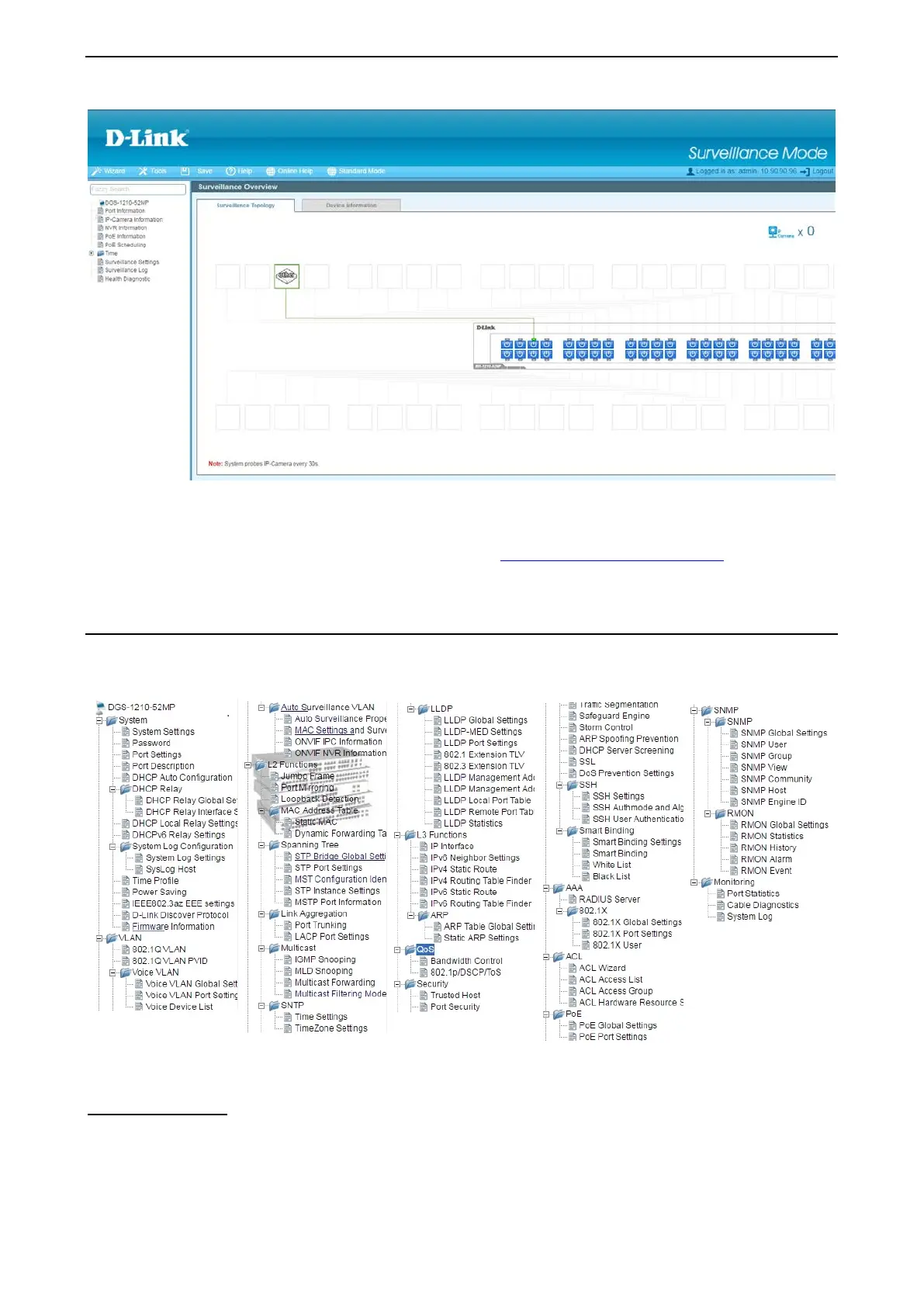

Figure 4.20 – Survillance Mode
Scroll to the bottom of the page and click the OK button to continue to the Web UI. For more detail
information of Surveillance Mode.
Please refer to Chapter 5 Surveillance Mode Configuration for detailed
instructions.
Function Tree
All configuration options on the switch are accessed through the Setup menu on the left side of the screen.
Click on the setup item that you want to configure. The following sections provide more detailed description
of each feature and function.
Figure 4.21 –Function Tree
Device Information
The Device Information provides an overview of the switch, including essential information such as firmware
& hardware information, and IP address.
