DGS-3100 Series Gigabit Stackable Managed Switch User Manual
160
Finding ACL Rules
The ACL Finder Page identifies any rule which has been assigned to a specific port. To find ACL rules:
1. Click ACL > ACL Finder: The ACL Finder Page opens:

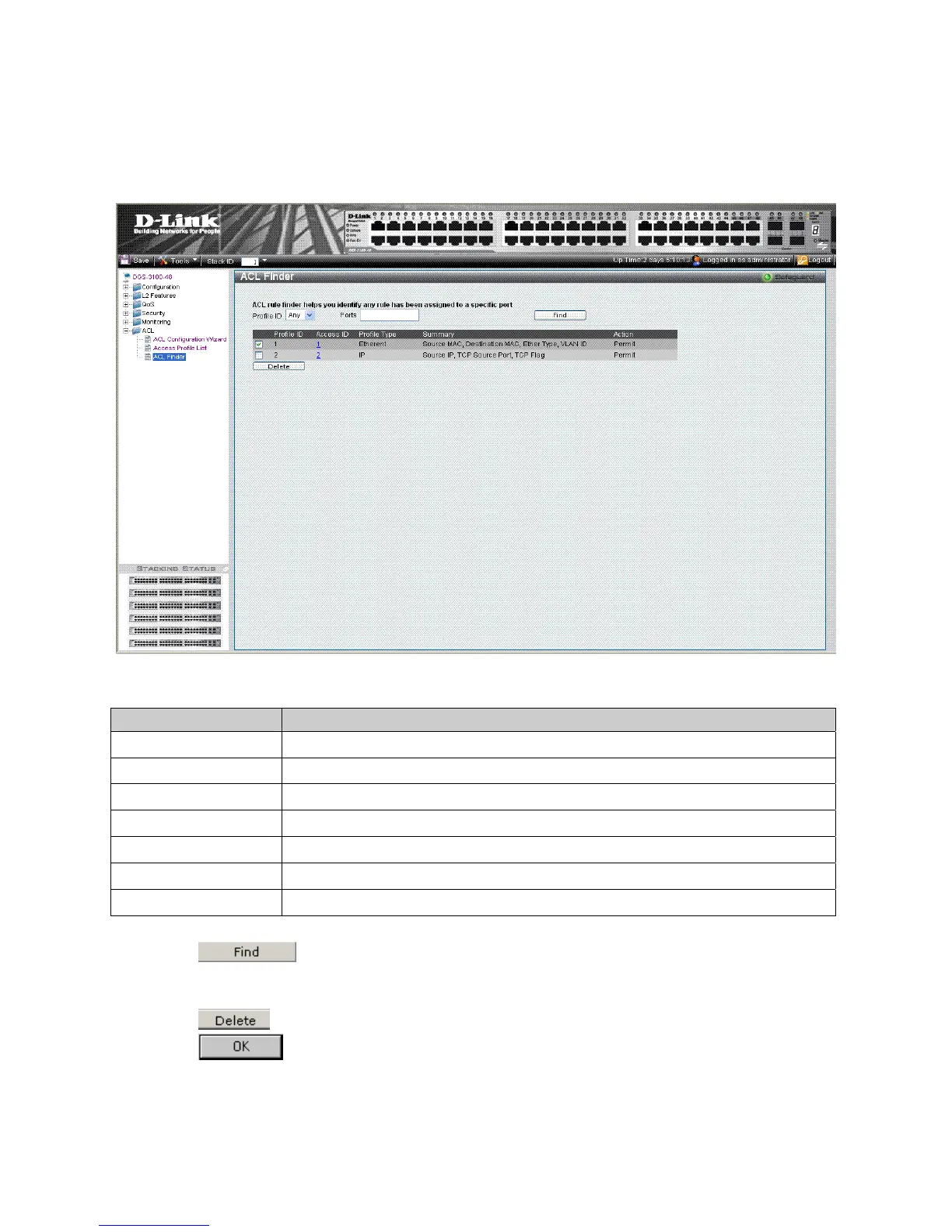

Figure 8-22 ACL Finder Page
The
ACL Finder Page contains the following fields:
Field Description
Profile ID (list box)
Defines the Profile ID for the search
Ports
Indicates the ports for which rules are sought
Profile ID
Indicates the Profile ID
Access ID
Indicates the ACL rule ID number.
Profile Type
Indicates if the profile is IP or Ethernet
Summary
Displays the access rule.
Action
Displays the action chosen for the profile.
2. Define the Profile ID and Ports fields.
3. Click
. The ACL rule is displayed.
To delete an ACL Profile entry:
1. Select the entry.
2. Click
. The entry is deleted .
3. Click
. The entry is deleted.
To view or define the rule details:
1. Click the Access ID (linked number). The
Rule Detail Page opens:
