DGS-3100 Series Gigabit Stackable Managed Switch User Manual
Defining Multi-Layer CoS Settings
For network administrators wanting to configure Multi Layer CoS settings, implementation in the switch is done via the
Access Control List. Hence, the
Multi-Layer CoS Setting Page has two hyperlinks; one to the Access Profile List, which
enables the utilization of existing ACL rules to perform traffic classification, and the other to the ACL Configuration
Wizard, which enables network administrators to create new ACL traffic classification rules. To define CoS/QoS settings:
1. Click QoS > Multi-Layer CoS Settings. The Multi-Layer CoS Setting Page opens:

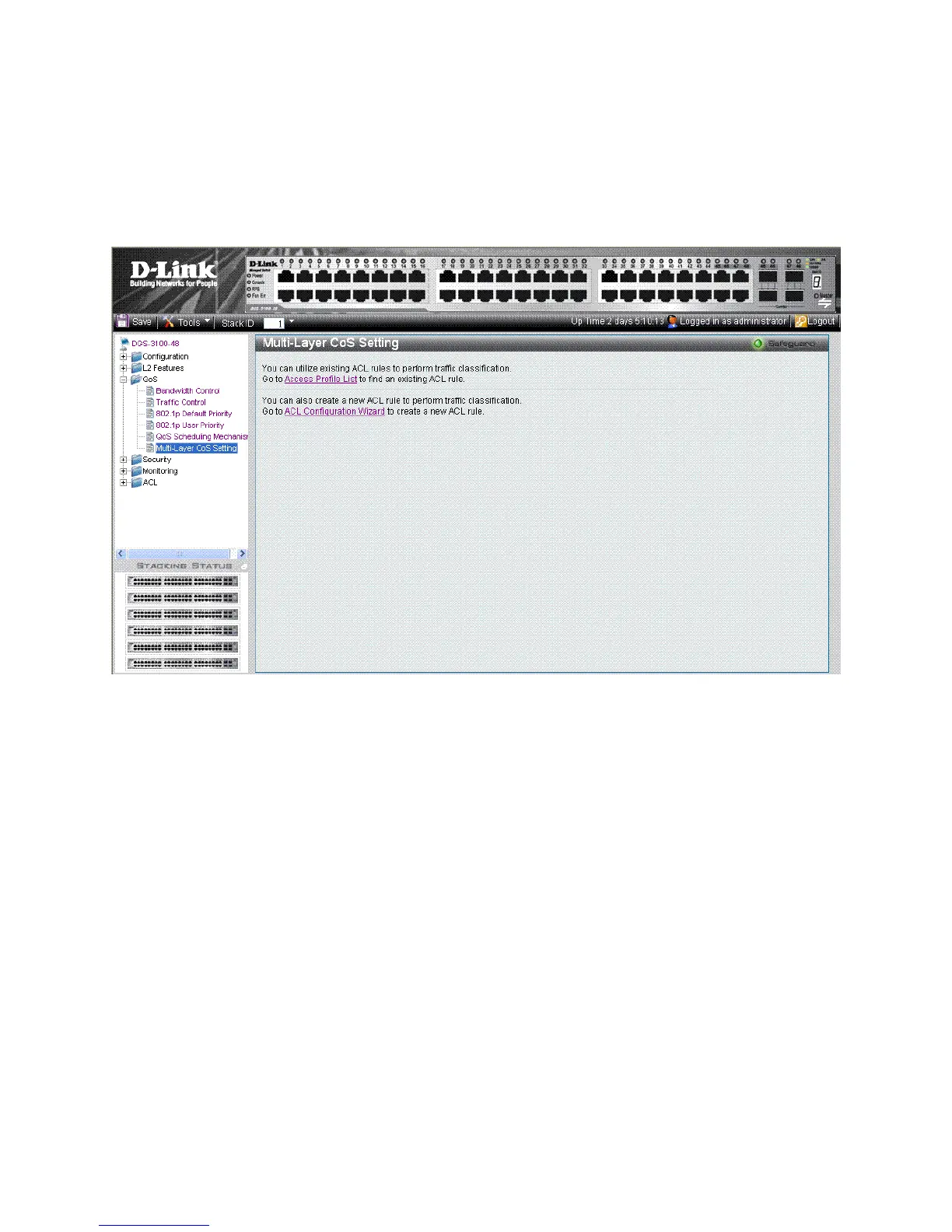

Figure 4-7. Multi-Layer CoS Setting Page
The
Multi-Layer CoS Setting Page contains the following links:
– Access Profile List
– ACL Configuration Wizard
2. Click the desired link. The relevant page opens (see
Defining Access Profile Lists).
93

D-Link DGS-3100 Specifications

General

Flash Memory	16 MB
Jumbo Frame Support	Yes
VLAN Support	Yes
Uplink Ports	4 SFP ports (combo with 10/100/1000BASE-T ports on 24-port model)
Number of VLANs	4K
Layer	Layer 2
Management	Web-based, SNMP, CLI
Dimensions	440 x 260 x 44 mm (24-port model), 440 x 260 x 44 mm (48-port model)
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% non-condensing
