Viewing Received Packet Statistics
The Received(RX) Page contains information about packets transmitted through device ports. To view received packet
statistics:
1. Click Monitoring > Packets > Received(RX). The Received(RX) Page opens:

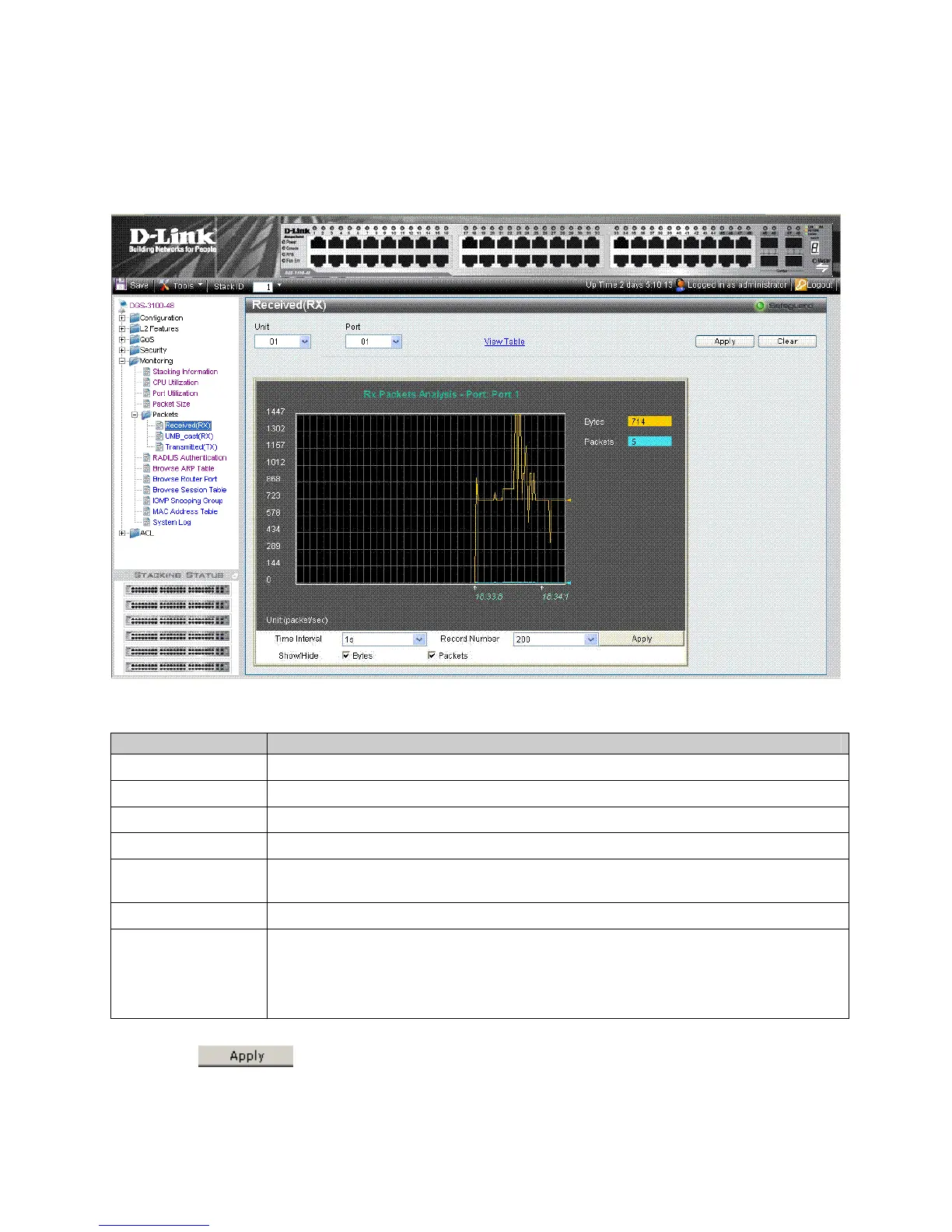

Figure 6-5. Received(RX) Page
The
Received(RX) Page contains the following fields:
Field Description
Unit
Displays the stacking member for which the transmitted packet statistics are displayed.
Port
Indicates the port for which the received packets parameters are displayed.
Bytes
Indicates the total number of bytes that were received on the port.
Packets
Indicates the total number of packets that were received on the port.
Time Interval
Indicates the time interval for which the received packets are displayed. The possible field
values are: 1s - 5s, 10s, 15s, 20s, 30s, 40s, 50s, and 60s.
Record Number
Indicates the transmitted record number.
Show/Hide
Displays the bytes/packets received information. The possible fields are:
Bytes checked — Checked displays the total amount of received bytes.
Packets checked — Checked displays the total amount of received packets.
2. Define the Unit and Port fields.
3. Click
to load the defined parameters.
4. Define the Time Interval and Record Number fields.
125

D-Link DGS-3100 Specifications

General

Flash Memory	16 MB
Jumbo Frame Support	Yes
VLAN Support	Yes
Uplink Ports	4 SFP ports (combo with 10/100/1000BASE-T ports on 24-port model)
Number of VLANs	4K
Layer	Layer 2
Management	Web-based, SNMP, CLI
Dimensions	440 x 260 x 44 mm (24-port model), 440 x 260 x 44 mm (48-port model)
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% non-condensing
