D-Link DIR-300 User Manual

DIR-300 Wireless N 150 Home Router
User Manual
Installation and Connection
4. Select the Obtain an IP address automatically and Obtain DNS server address
automatically radio buttons. Click the OK button.

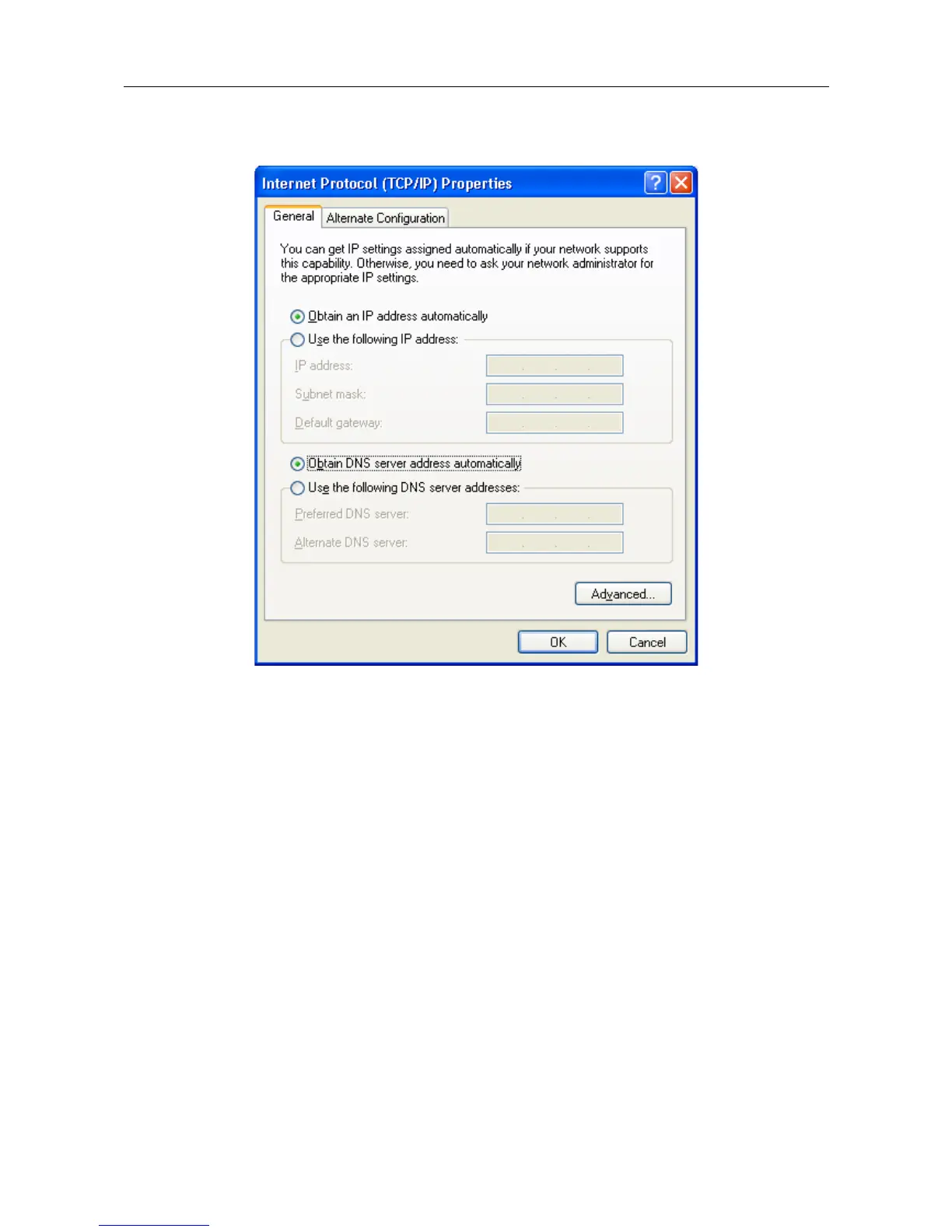

Figure 6. The Internet Protocol (TCP/IP) Properties window.
5. Click the ОК button in the connection properties window.
Now your computer is configured to obtain an IP address automatically.
Page 20 of 170

D-Link DIR-300 Specifications

General

Frequency Band	2.4 GHz
LAN Ports	4 x 10/100Mbps
WAN Ports	1 x 10/100Mbps
Security	WEP, WPA, WPA2
Wireless Speed	54 Mbps
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 65 °C
Humidity	10% to 90% non-condensing
Wireless Standard	802.11b/g
Antenna	1 x External
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g
