DIR-300 Wireless N 150 Home Router
User Manual
Configuring via Web-based Interface
Configuring Wireless Connection

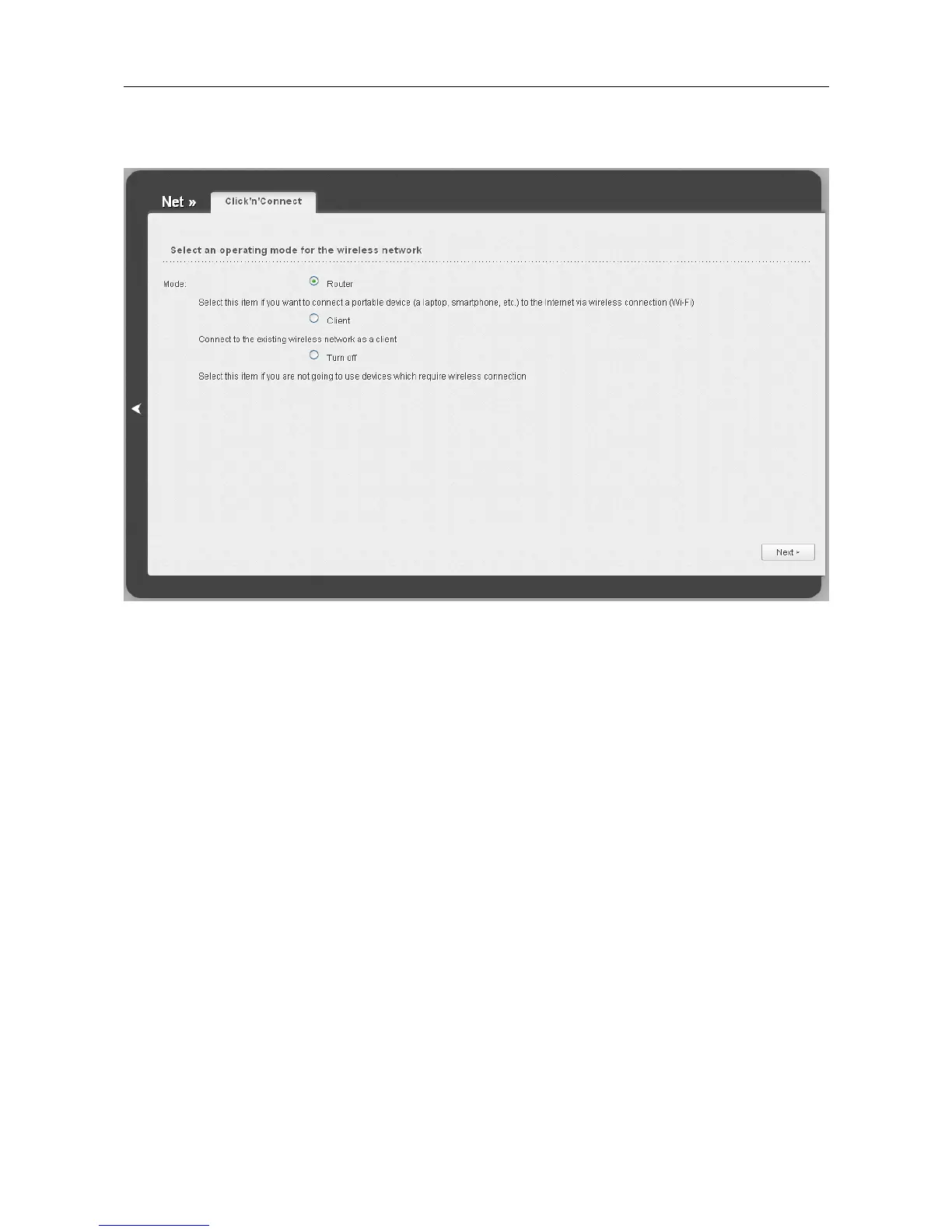

Figure 51. Selecting the operating mode for the wireless network.
If you are not going to use the wireless connection, select the Turn off choice of the Mode radio
button. Click the Next button and then click the Save button on the opened page. After clicking the
button, the page for configuring the router to use an IPTV set-top box opens (see the Configuring
IPTV section, page 72).
If you want to connect portable devices to the Internet via wireless connection, select the Router
choice of the Mode radio button. Click the Next button.
If you want to configure the router as a client to connect to a wireless access point, select the Client
choice of the Mode radio button. Click the Next button.
Page 67 of 170
