D-Link DIR-300 User Manual

DIR-300 Wireless N 150 Home Router
User Manual
Configuring via Web-based Interface
Station List
On the Wi-Fi / Station List page, you can view the list of wireless clients connected to the router.

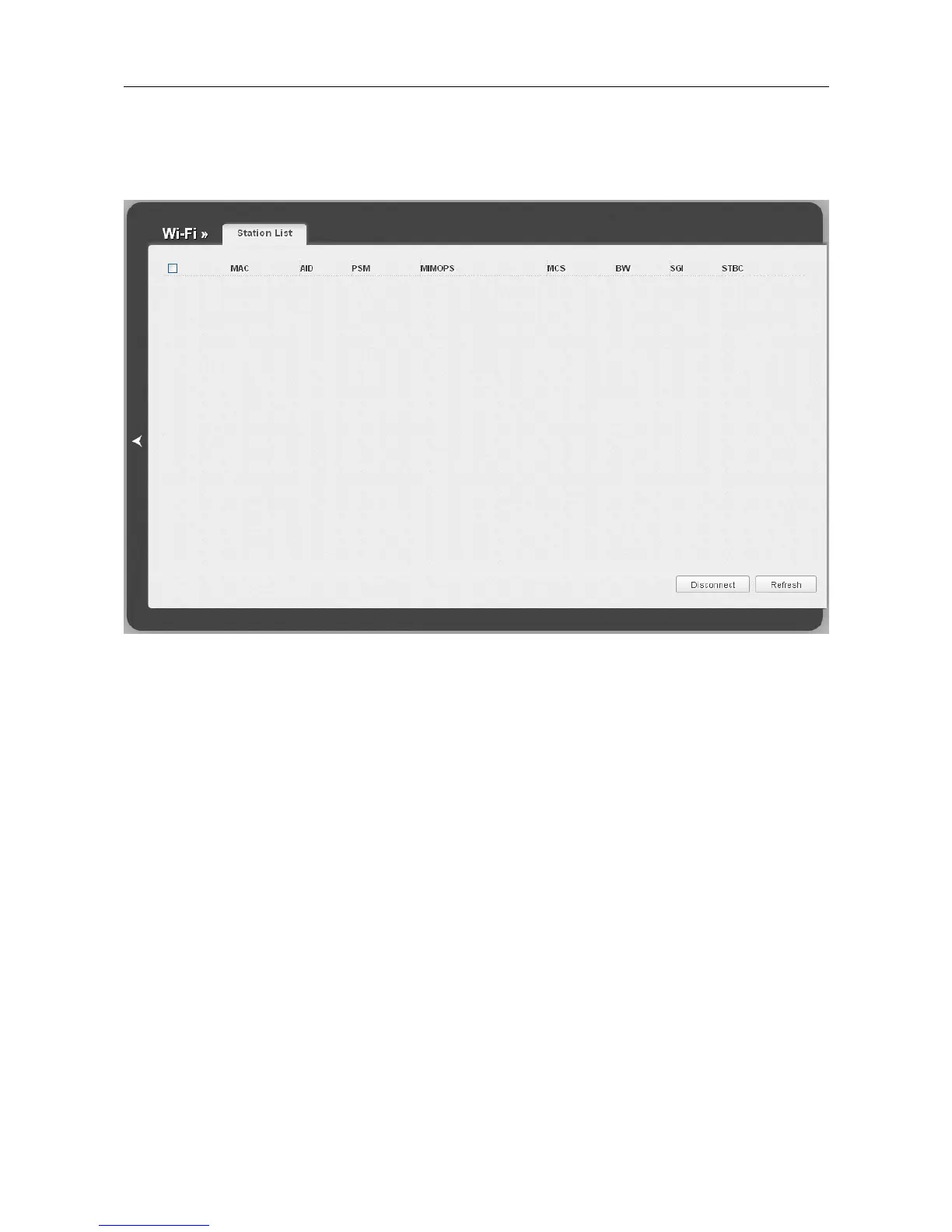

Figure 95. The list of the wireless clients.
If you want to disconnect a wireless device from your WLAN, select the checkbox in the line
containing the relevant MAC address, and click the Disconnect button.
To view the latest data on the devices connected to the WLAN, click the Refresh button.
Page 118 of 170

D-Link DIR-300 Specifications

General

Frequency Band	2.4 GHz
LAN Ports	4 x 10/100Mbps
WAN Ports	1 x 10/100Mbps
Security	WEP, WPA, WPA2
Wireless Speed	54 Mbps
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 65 °C
Humidity	10% to 90% non-condensing
Wireless Standard	802.11b/g
Antenna	1 x External
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g
