DIR-300 Wireless N 150 Home Router
User Manual
Configuring via Web-based Interface
Static IP Connection

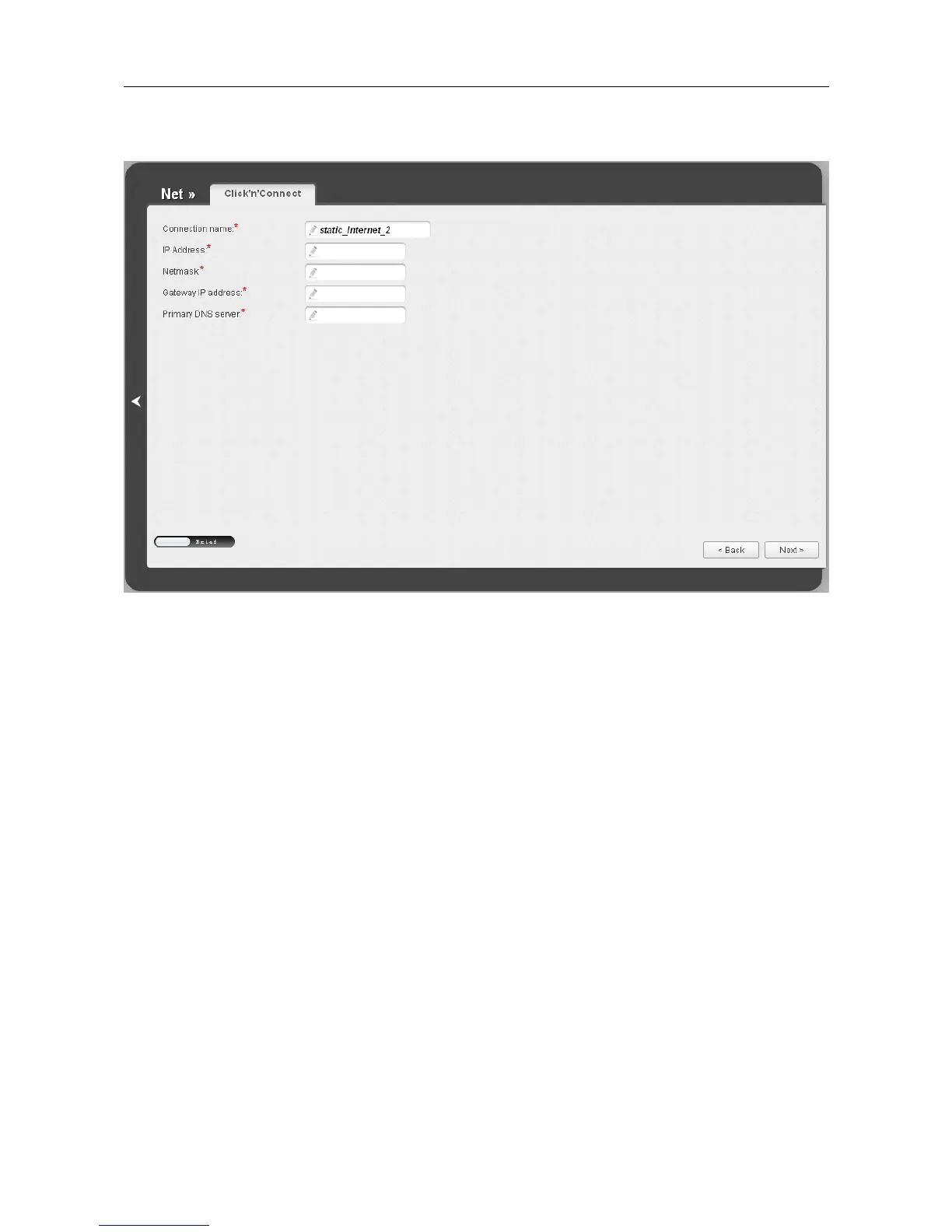

Figure 31. Configuring Static IP WAN connection.
In the Connection name field, specify a name for the connection for easier identification.
Fill in the IP Address and Netmask fields.
In the Gateway IP address field, enter the IP address of the gateway used by this WAN
connection.
In the Primary DNS server field, enter the address of the primary DNS server.
As a rule, the specified settings are enough to configure a connection of the selected type. If you
need to specify additional settings, open the expert settings mode. To do this, use the switch in the
bottom left corner of the page.
Page 43 of 170
