LED Indicators
All Switches
Below is an overview of the LED indicators present on all switch models in the DIS-200G series.

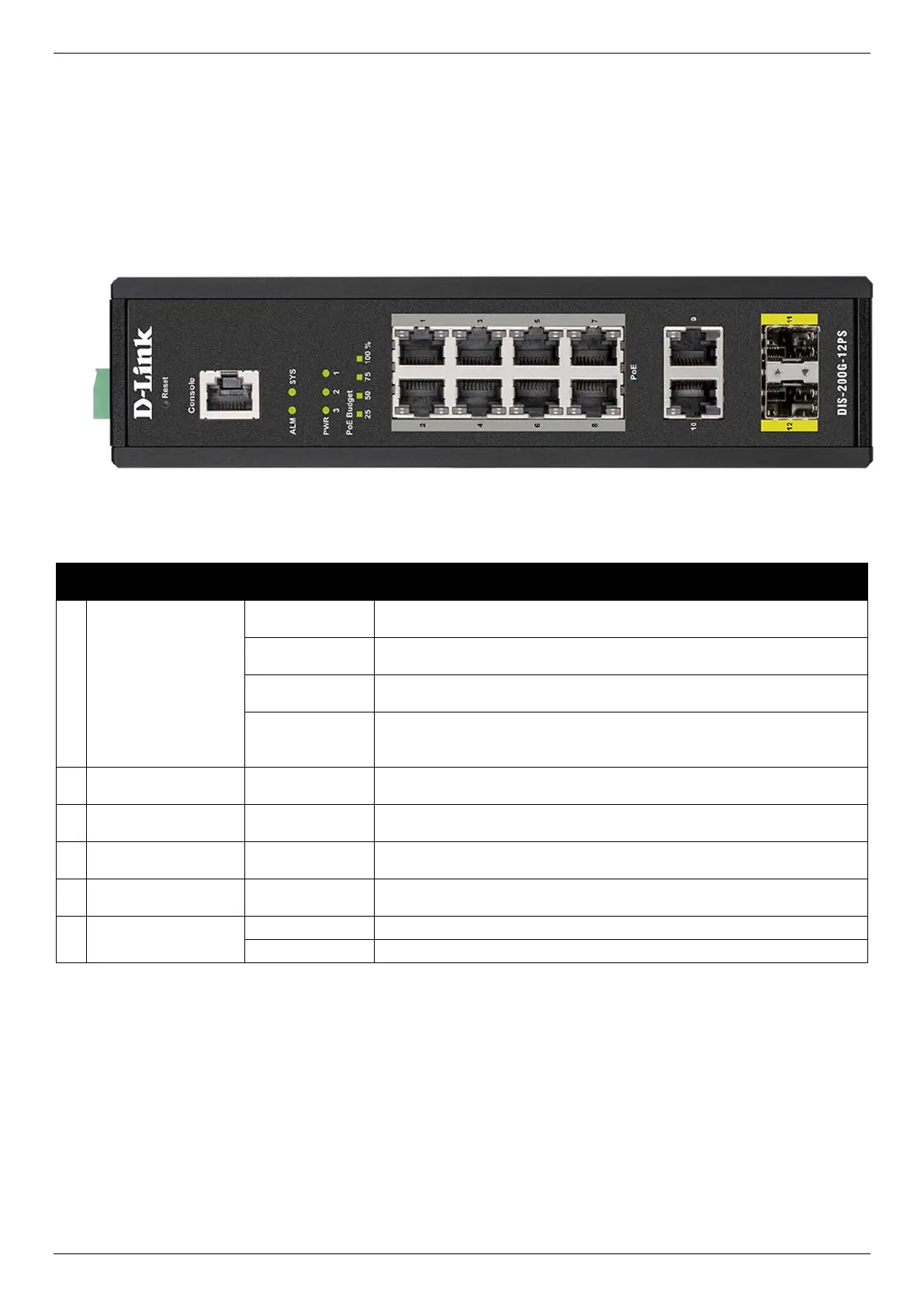

Figure 1-4 LED indicators for all DIS-200G Series switches
LED Description
1 SYS
Solid green The DIS-200G switch is on and accepting web connections.
Blinking green A firmware update is in progress.
Solid amber The DIS-200G switch is not ready for communication.
Blinking amber The DIS-200G switch is booting up, or PoE has failed during system
operation (DIS-200G-12PS/PSW PoE models only).
2 ALM
Solid amber The power supply to the DIS-200G has failed.
3 PWR 1
Solid green Power source 1 is connected.
4 PWR 2
Solid green Power source 2 is connected.
5 PWR 3
Solid green Power source 3 is connected.
6 Ports 11 - 12
Solid green
Port is connected at 1 Gbps.
Blinking green
There is activity on the port at 1 Gbps.
