DIS-200G Series Layer 2 Gigabit Industrial Smart Managed Switch Hardware Installation Guide
12
DIS-200G-12PS/12PSW Switches
Below is an overview of LED indicators exclusive to the DIS-200G-12PS/PSW PoE models.

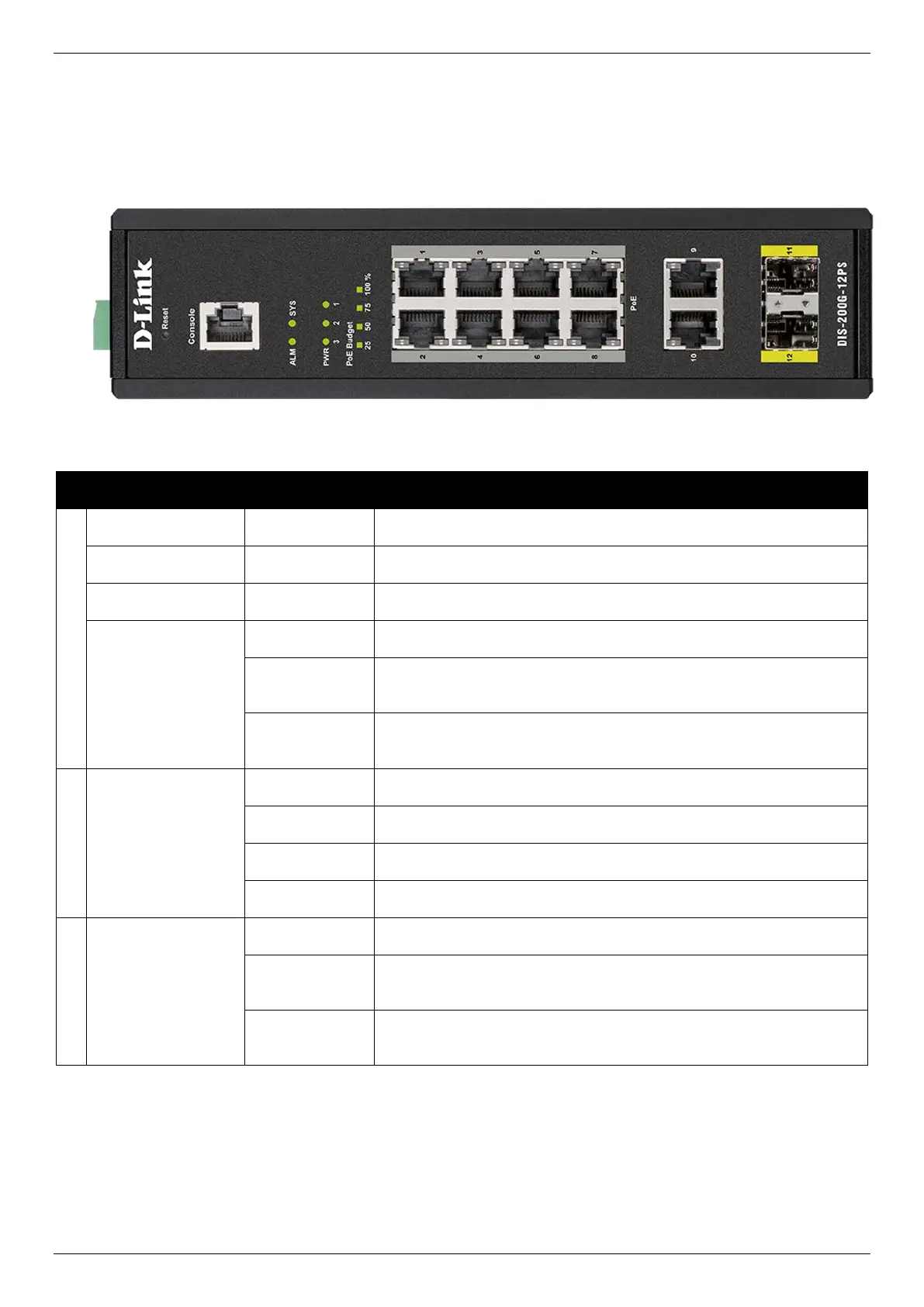

Figure 1-5 LED indicators for the DIS-200G-12PS/12PSW
LED Description
1 PoE Budget 100
Solid green The power budget is 100% and no PoE is being used.
PoE Budget 75
Solid green The power budget is between 100 and 75%.
PoE Budget 50
Solid green The power budget is between 75 and 50%.
PoE Budget 25
Solid green The power budget is between 50 and 25%.
Solid amber The power budget is between 25 and 0%, but still has more than
15.4 W of power remaining.
Blinking amber The power budget is between 25 and 0%, and has less than 15.4 W
of power remaining.
2 Left: Ports 1 - 10
Solid green Port is connected at 1 Gbps.
Blinking green There is activity on the port at 1 Gbps.
Solid amber Port is connected at 10/100 Mbps.
Blinking amber There is activity on the port at 10/100 Mbps.
3 Right: Ports 1 - 8
Solid green The PoE output is using IEEE 802.3af/at and is less than 15.4 W.
Solid amber The PoE output is using IEEE 802.3at and is between 15.4 and 30
W.
Blinking amber The PoE output on the port is over 30 W and the port has been shut
down.
Refer to the LED Indicators section in the Appendix A - Technical Specifications for more LED information.
