Console Cable (RJ-45 to RS-232)
A console cable is used to connect to the console port of the switch to access the command line interface. The
following diagram and table show the standard RJ-45 to RS-232 cable and pin assignments.

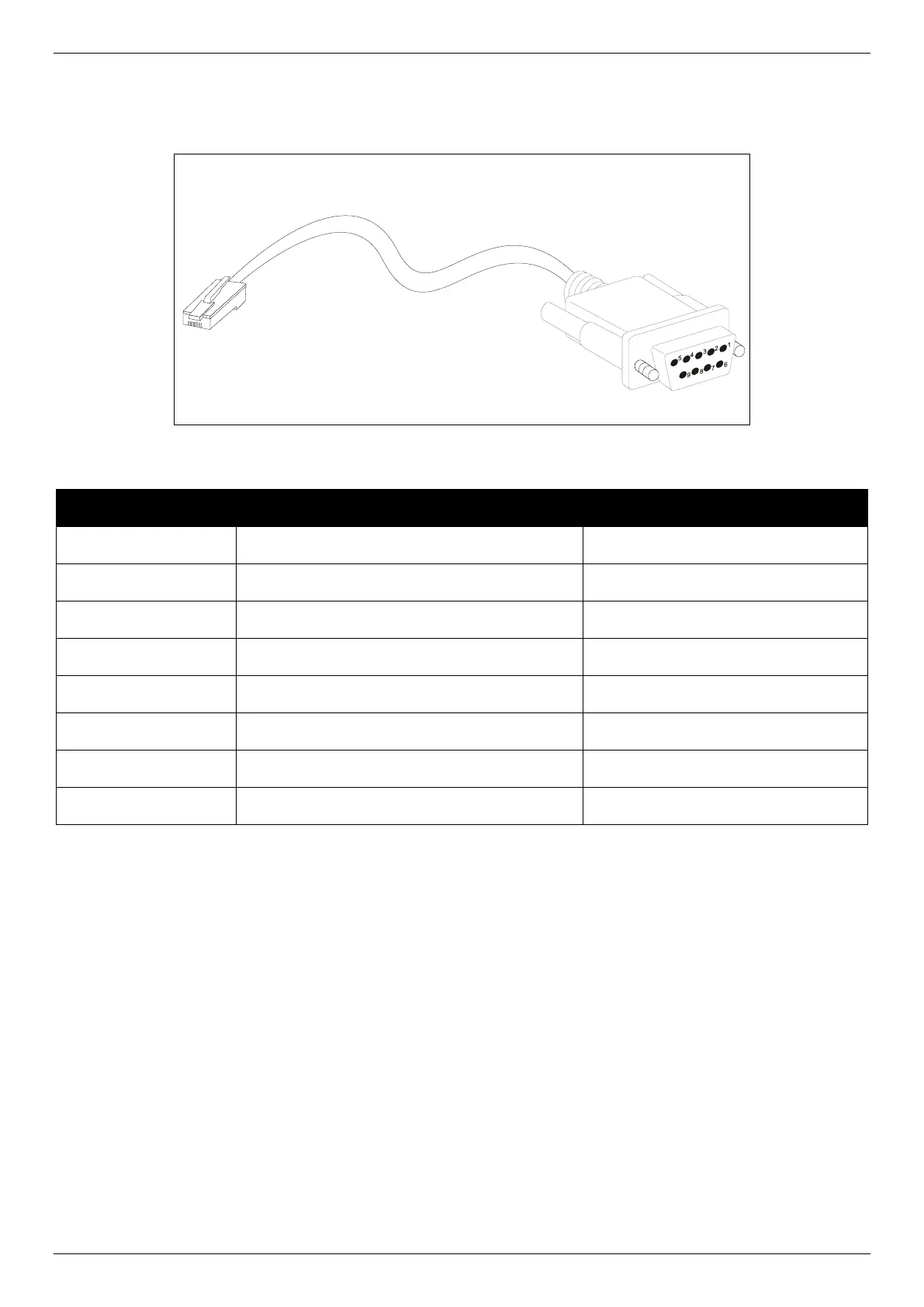

Figure B-2 Console to RJ45 Cable
Contact Console (DB9/RS232) RJ-45
1
Not Used Not Used
2
RXD Not Used
3
TXD TXD
4
Not Used GND
5
GND (shared)
GND
6
Not Used
RXD
7
Not Used
Not Used
8
Not Used
Not Used
